Grandlite International Corp

LED-6099

• LED AREA LIGHT

  -UL and CUL listed.
  -ONE-PIECE die-cast aluminum body with die-cast hinge panel for easy installation access.
  -LEDs:  The most technologically advanced LED chips in the market.
  -UV stabilized powder coated finish
  -LENs:  Optional Type III, Type IV,  Type V optics.
  -Bi-Level Dimmable or Photocontrol optional available with adder.
  -IOT Photocell capability.
  -Standard 4kV Surge.
  -Finish - Bronze. Color options with adder



  Model Number	LED-6099
  System Wattage	220W			307W
  Dist. Type	Type III	Type IV	Type V	Type III	Type IV	Type V
  Delivered Lumens (Lms.)	30299 lm**	30391 lm**	31130 lm**	37042 lm**	37808 lm**	38080 lm**
  Efficacy (Lm/W)	138 lm/W	138 lm/W	142 lm/W	121 lm/W	123 lm/W	124 lm/W
  Color Rendering Index (CRI)	70+
  Color Temperature (CCT)	4000K / 5000K
  Input Voltage	120~277V

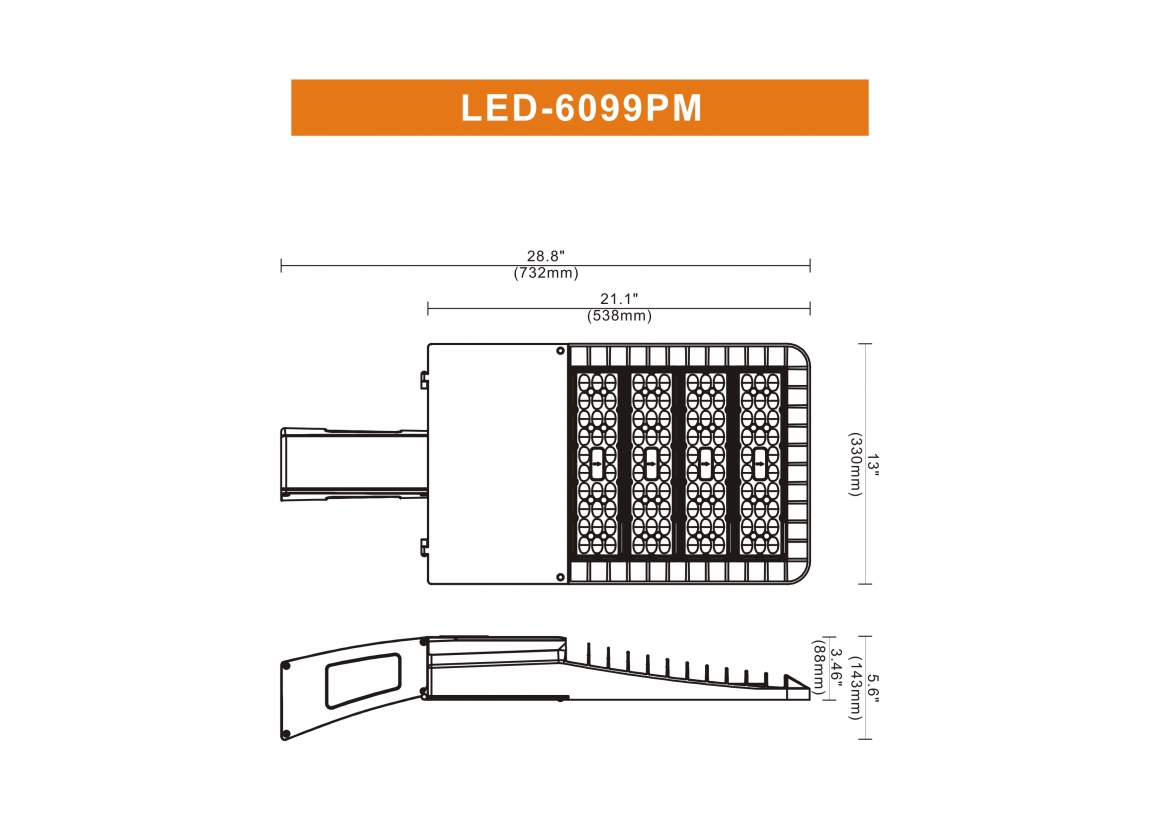

  Dimensions (Inches)	21.1"x13"x5.6" inches (Pole Mount)
  Weight (kg / lb)	8.7kgs / 19.16lbs



  Build Your Order

  Model Number	System Wattage	Voltage	CCT	Housing Finish	Mounting	Accessories
  LED-6099	220W 307W	120-277V	5000K • Custom	Bronze • Custom	POLE MOUNT 6" /10" TRUNNION Slip Fitter U Bracket	LENS: Type III, IV, V options as options Bi-Level Dimmable or Photocontrol options IOT Photocell capability Standard 4kV Surge

  **Optional with adder
    *Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
  **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
     Actual production units may vary from the values reported here by up to +/-10%.
