LED-6099-U

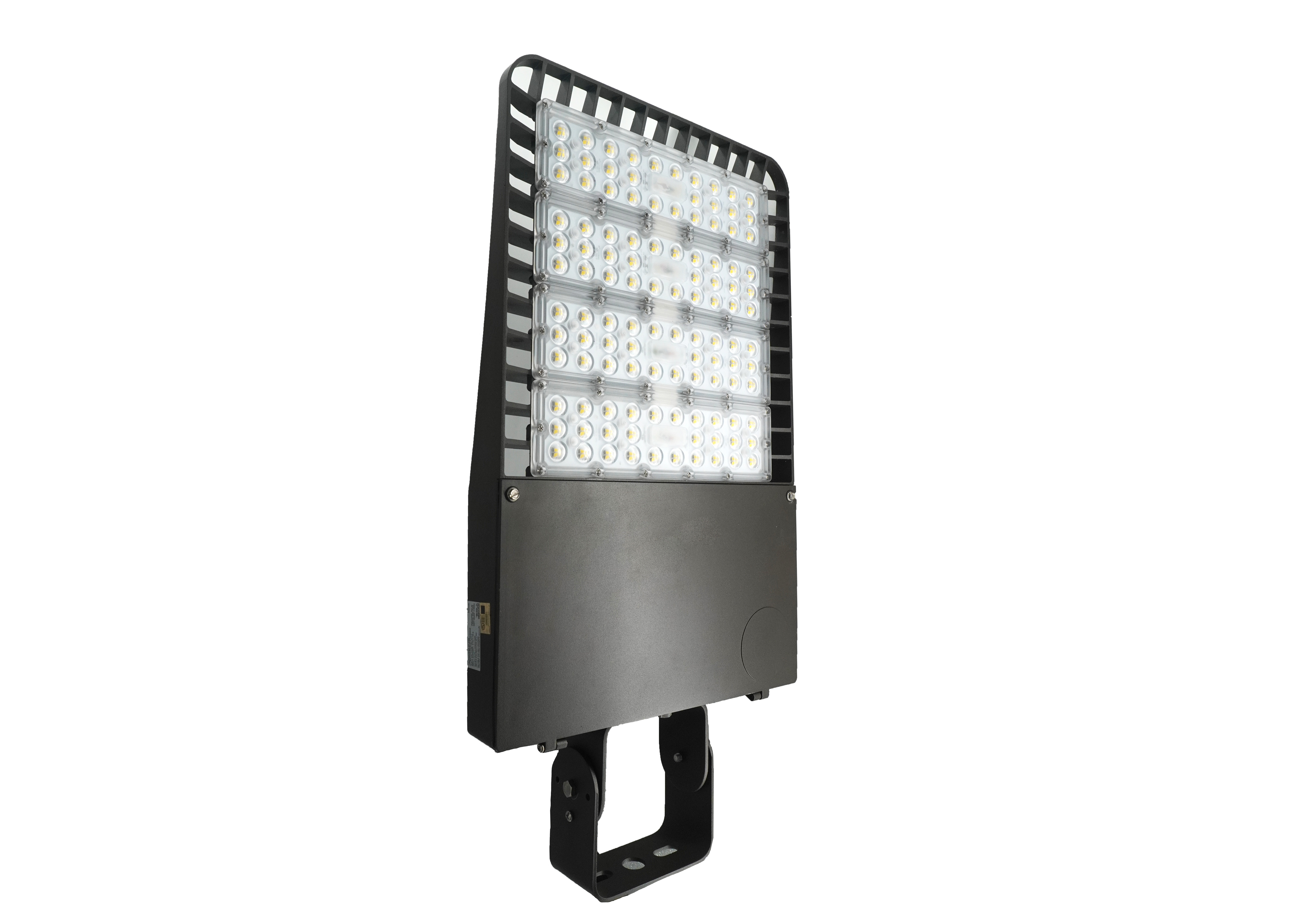

  • This slick and modern luminaire has been designed to handle any environment.  It has a beautiful slimline design yet has one of hte highest lumens performance in the market. It can be used as a flood light and an area light.  With a multitude of mounting options, surge protection devices, IOT photocell capability, the LED6098 is ready to conquer the lighting landscape.

    -UL and CUL listed for wet location.
    -ONE-PIECE die-cast aluminum body with die-cast hinge panel for easy installation access.
    -LEDs:  The most technologically advanced LED chips in the market.
    -UV stabilized powder coated finish
    -LENs:  Optional Type III, Type IV,  Type V optics.
    -Bi-Level Dimmable or Photocontrol optional available with adder.
    -IOT Photocell capability.
    -Standard 4kV Surge.
    -Finish - Bronze. Color options with adder


  •  Download Datasheet
    Model Number LED-6099 LED-6099
    System Wattage 220W 307W
    Delivered Lumens (Lms.) 31130 lm** (Type V) 38080 lm** (Type III)
    Efficacy (Lm/W) 142 lm/w 124 lm/w
    Color Rendering Index (CRI) 80+
    Color Temperature (CCT) 4000K / 5000K
    Input Voltage 120~277V
    Dimensions (Inches) 21.1"x13"x5.6" inches
    Weight (kg / lb) 8.7kgs / 19.16lbs


    Build Your Order
    Model
    Number
    System
    Wattage
    Voltage CCT Housing
    Finish
    Mounting Accessories

    LED-6099


    220W
    307W


    120-277V 5000K
    • Custom
    Bronze
    • Custom
    POLE MOUNT 6" /10"
    TRUNNION
    Slip Fitter
    U Bracket
    LENS: Type III, IV, V options as options
    Bi-Level Dimmable or Photocontrol options
    IOT Photocell capability
    Standard 4kV Surge
    **Optional with adder
      *Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
    **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
       Actual production units may vary from the values reported here by up to +/-10%.
