LED-9800

LED-9800

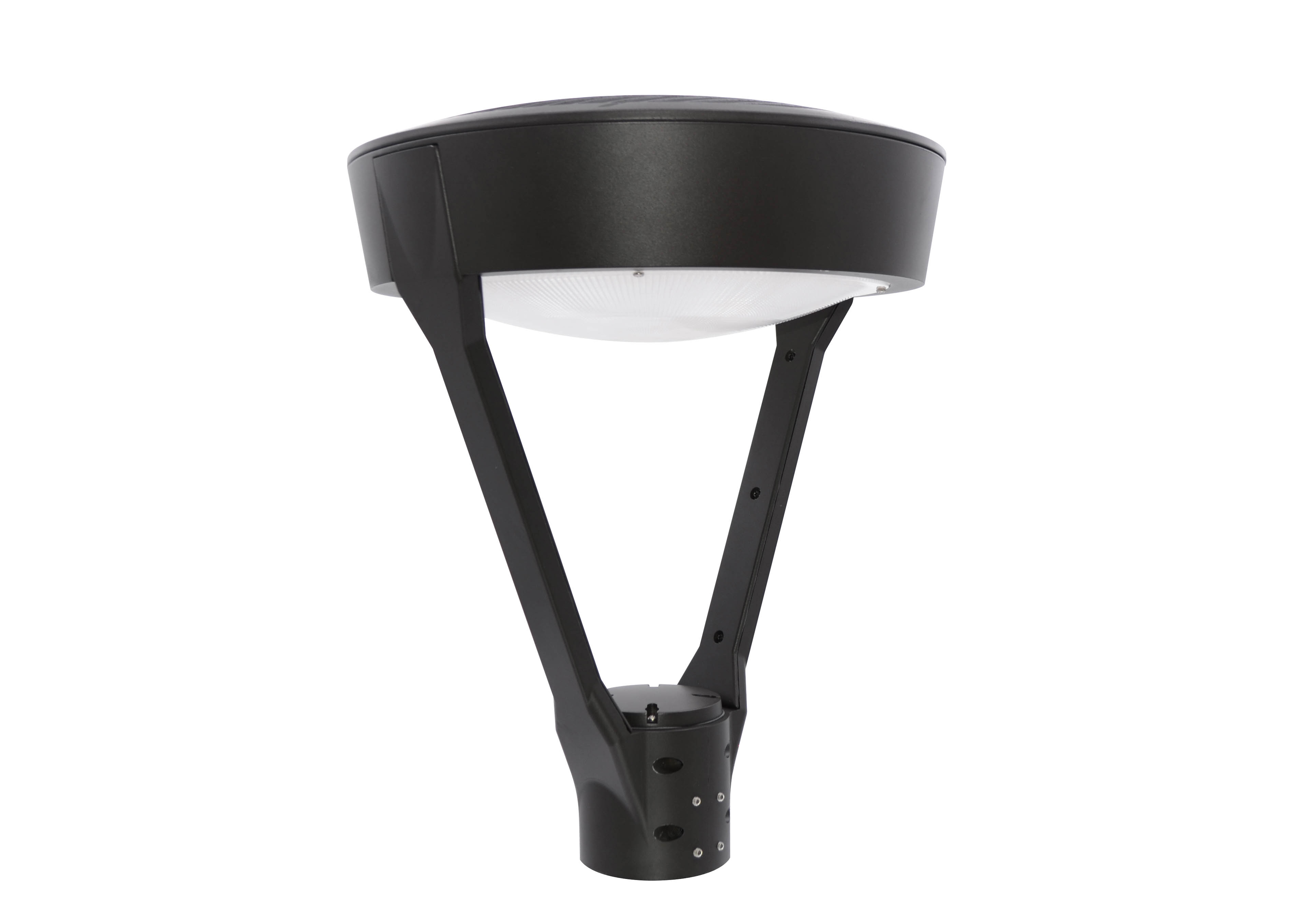

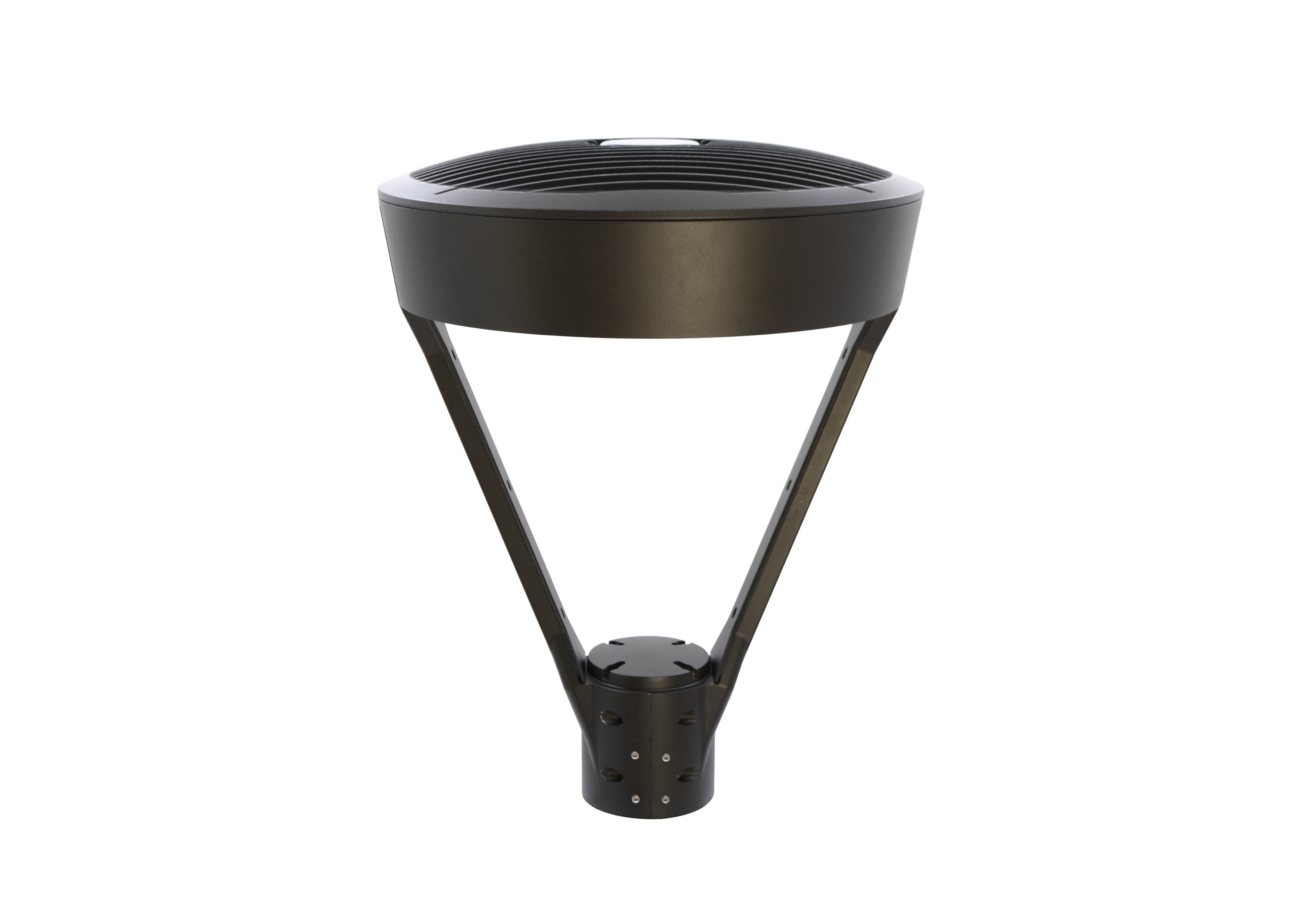

LED POST TOP LIGHT

This post top provides a subtle but stylish look for any job site. It is designed to save energy and reduce installation time. Optional photocontrol is allowed for additional energy savings.


  • -UL and CUL listed for wet location.
    -Corrosion resistant heavy duty-cast aluminum construction. Standard 2 3/8" open on the bottom.
    ​-Pass 3 G vibration testing.
    ​-Wiring comparting on the top for easy access and ease of installation.

    FINISH:
    Superior powder coat finish to withstand the toughest weather.

    OPTIONS:

    Precision injection-molded, UV polycarbonate Optics Lens
    Optional photocell with adder
    Optional 347V with adder



    Model Number LED-9800
    System Wattage 53W 78W 143W
    Delivered Lumens (Lms.) 6814lm** 9506lm** 15408lm**
    Efficacy (Lm/W) 126 lm/w 129 lm/w 130 lm/w
    Color Rendering Index (CRI) 70+
    Color Temperature (CCT) 4000K / 5000K
    Input Voltage 120~277V
    MA 350MA 500 MA 900 MA
    Equivalent 150W MH 150-175W MH 250W MH

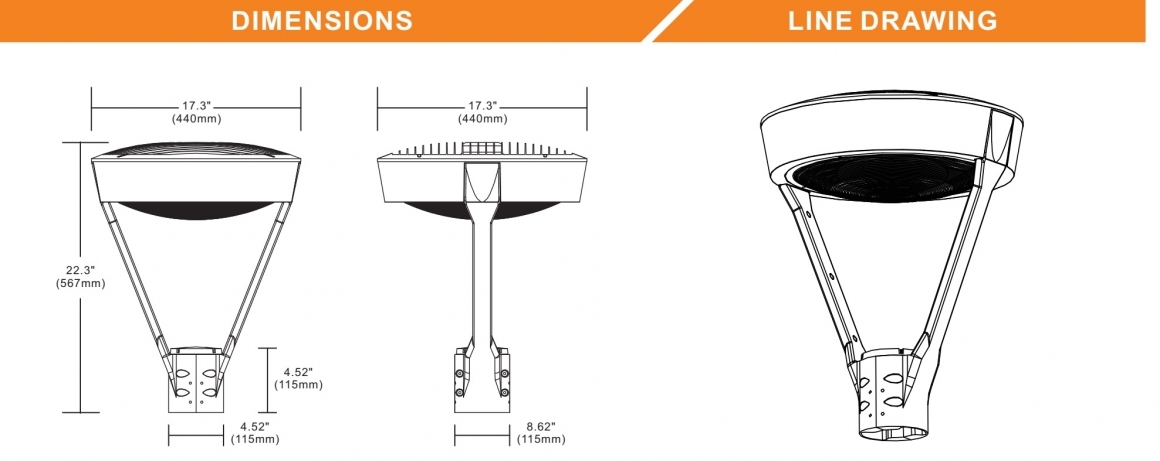

    Dimensions (Inches) 17.3"x17.3"x22.3"

    Build Your Order
    Model
    Number
    System
    Wattage
    Voltage CCT Electrical Housing
    Finish
    LED-9800 53W
    78W
    ​143W
    120-277V 4000K
    5000K
    CUSTOM**
    Photo control**
    ​347V**
    Bronze
    Black**​
    CUSTOM**
    **Optional with adder
      *Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
    **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
       Actual production units may vary from the values reported here by up to +/-10%.
