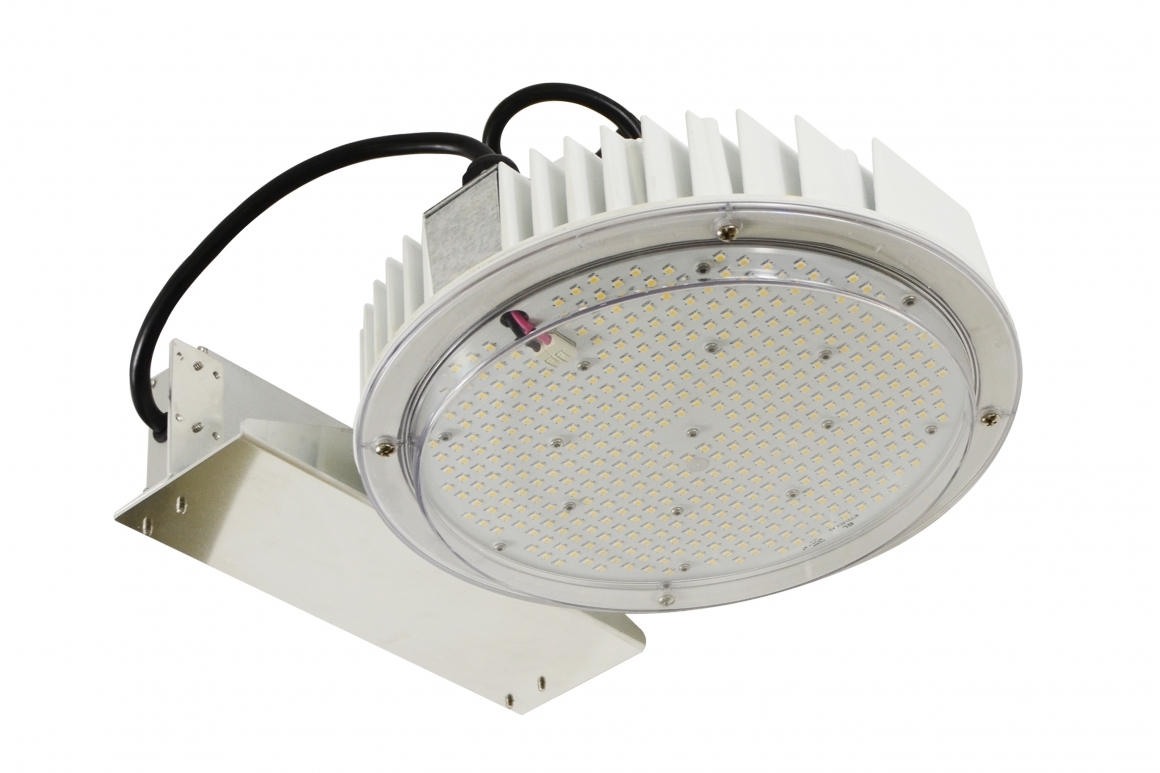

LED-467F

  • A unique feature is the quick disconnected cable, it can quickly seperate the driver from the LED module for easy maintenance.
    The unit has built-in heat sink and comes with a hook made of die-cast aluminum for a strong and easy installation.

    -UL and CUL listed for damp locations.
    -Superior heavy duty die cast aluminum construction.
    -High impact polycarbonate lens.
    -DLC Listed.
    -Optional 347V with adder.


  •  Download Datasheet
    Model Number LED-467F-L3 LED-467F-L5 LED-467F-L9 LED-467-F-L432
    System Wattage 115W 161W 215W 233W
    Delivered Lumens (Lms.) 13950 lm** 17929 lm** 26433 lm** 31354 lm**
    Efficacy (Lm/W) 121 lm/w 111 lm/w 123 lm/w 135 lm/w
    Color Rendering Index (CRI) 70+
    Color Temperature (CCT) 5000K
    Input Voltage 120-277V
    MA 966 MA 780 MA 600 MA 93 MA
    Equivalent 250W MH 250W MH 400W MH 1000W MH
    Dimensions (Inches) 9.25"x 9.25"x7.78" inches
    Weight (kgs) 6.8 kgs / 14.97 lb

    Build Your Order
    Model
    Number
    System
    Wattage
    Voltage CCT Electrical Housing
    Finish
    Mounting
    LED-467F-L3 115W 120-277V
    347V**
    5000K
    CUSTOM**
    Photo control**
    Terminal block**
    White​
    CUSTOM**
    Hook
    Stem**
    LED-467F-L5 161W
    LED-467F-L9 215W
    LED-467F-L432 233W
    **Optional with adder
      *Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
    **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
       Actual production units may vary from the values reported here by up to +/-10%.
