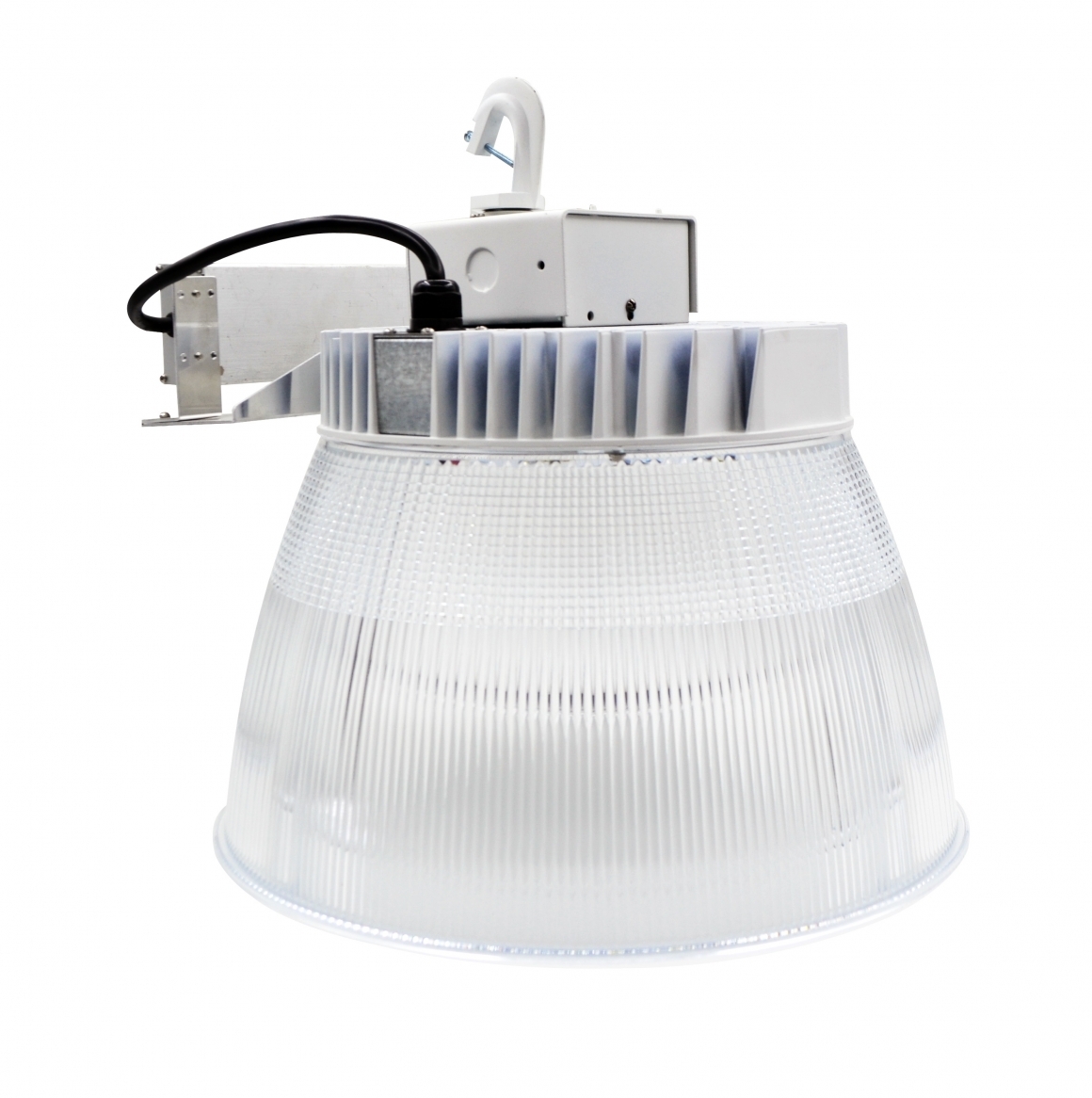

LED-467A

Spec. Download
  • Auniquefeatureforthisfixtureisthequickdisconnectedcable,itcanquicklyseperatethedriverfromtheLEDmoduleforeasymaintenance.Theunithasbuilt-inheatsinkandcomeswithahookmadeofdie-castaluminumforastrongandeasyinstallation.-ULandCULlistedfordamplocations-Superiorheavydutydiecastaluminumconstruction -Acrylicreflector-DLClistedOptions:-Optional347Vwithadder-Optio..
  •  Download Datasheet
    Model Number LED-467A-L3 LED-467A-L5 LED-467A-L9
    System Wattage 115W 161W 215W
    Delivered Lumens (Lms.) 13950 lm** 17929 lm** 26433 lm**
    Efficacy (Lm/W) 121 lm/w 111 lm/w 123 lm/w
    Color Rendering Index (CRI) 70+
    Color Temperature (CCT) 5000K
    Input Voltage 120~277V
    MA 966 MA 780MA 600MA
    Equivalent 250W MH 250W MH 400W MH
    Dimensions (Inches) 16.2"x16.2"x15.5"
    Weight (kg / lb) 9.18kg / 20.2lb

    Build Your Order
    Model
    Number    		 System
    Wattage    		 Voltage CCT Electrical Housing
    Finish    		 Mounting Accessories
    LED-467A-L3 115W 120-277V
    347V**    		 5000K
    CUSTOM**    		 Photo control**
    Terminal block**    		 White​
    CUSTOM**    		 Hook
    Stem**    		 16" drop lens**
    Clamp band and flat glass**
    LED-467A-L5 161W
    LED-467A-L9 215W
    **Optional with adder
      *Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
    **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
       Actual production units may vary from the values reported here by up to +/-10%.
