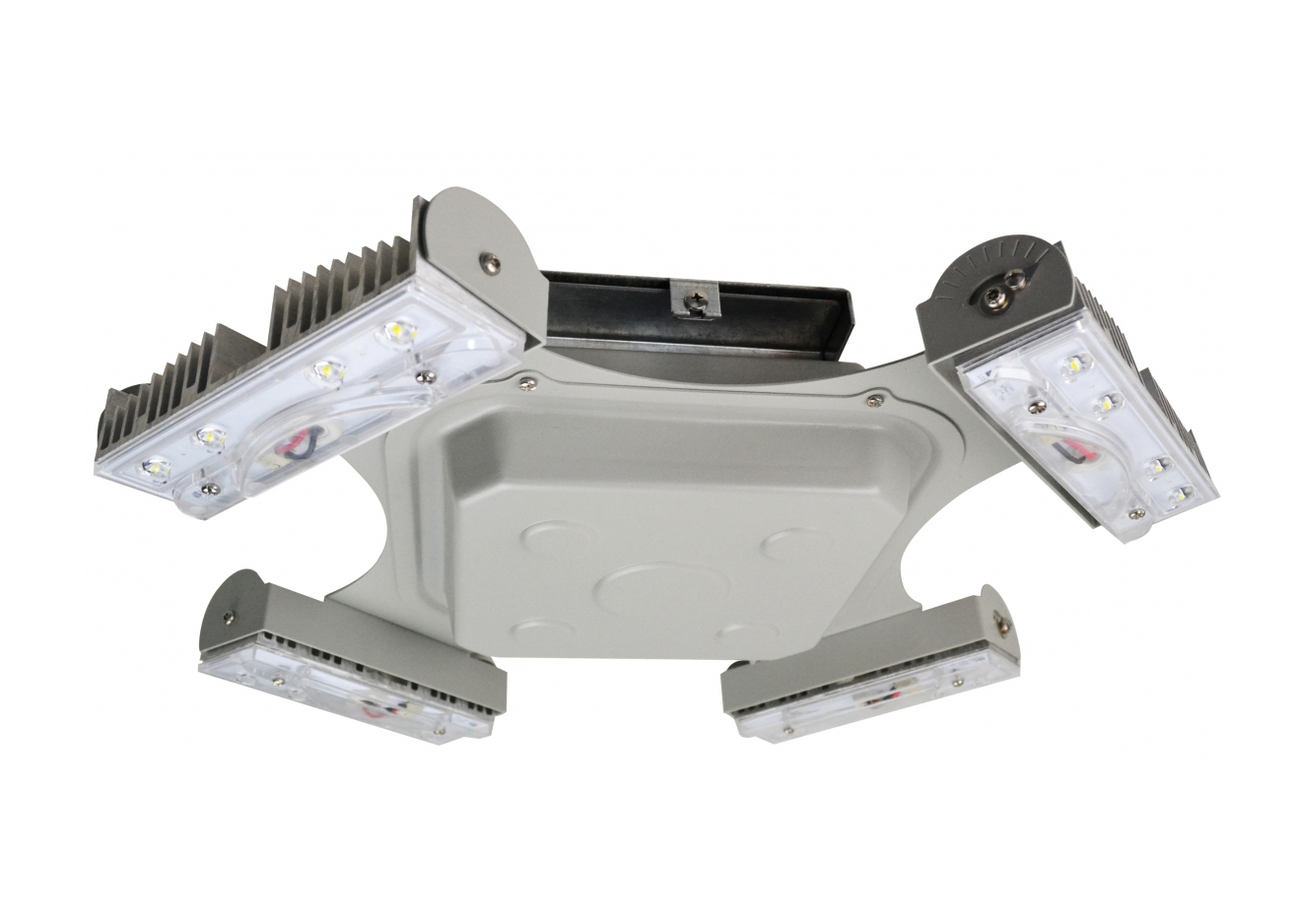

LED-366

  • Heavy duty die-cast construction with modular LED light engine design.
    This slim-profile luminaire is perfectly used in parking garage, canopy or high ceilings.
    It provides an easy installation with quick mount structure for contractors to work safely and easily in the confined space areas.

    -UL and CUL listed for wet locations.
    -Solid construction die-cast aluminum body.
    -UV stabilized power coated finish.
    -Unique quick mount design.
    -DLC Listed.
    -Optional Photo Control with adder.
    -Adjustable directional optics.
    -Motion sensor capability.
    -Finish:  Gray. Color option with adder.
  •   Download Datasheet
    Model Number LED-366
    System Wattage 55W
    Delivered Lumens (Lms.) 5100 lm**
    Efficacy (Lm/W) 93 lm/w
    Color Rendering Index (CRI) 70+
    Color Temperature (CCT) 5000K
    Input Voltage 120~277V
    MA 900 MA
    Equivalent 150W MH

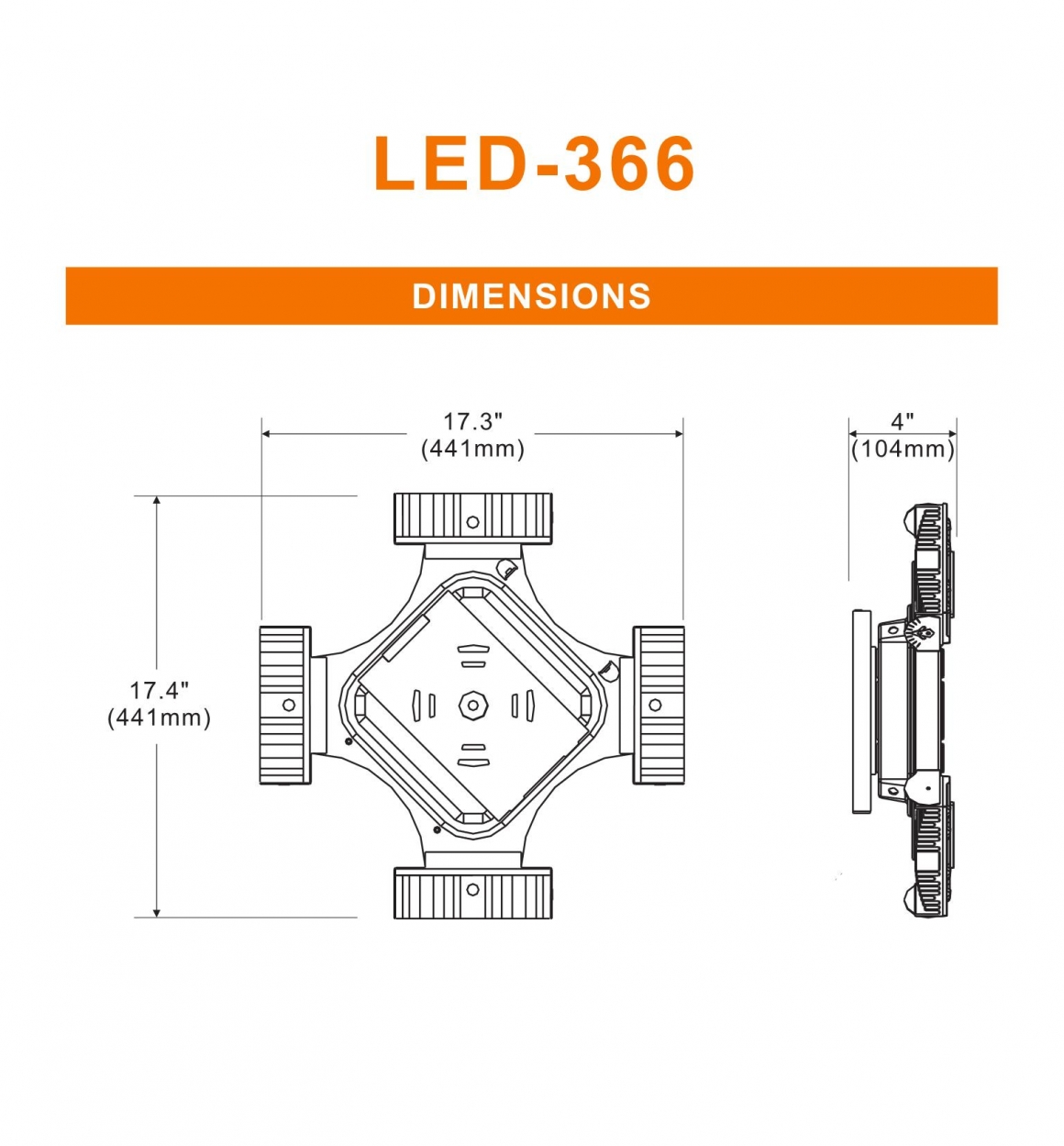

    Dimensions (Inches) 17.3"x 17.4" x 4" inches
    Weight (kg / lb) 5.59kg / 12.3lb

    Build Your Order
    Model
    Number
    System
    Wattage
    Voltage CCT Electrical Housing
    Finish
    Mounting
    LED-366 55W 120-277V 5000K
    CUSTOM**
    Motion sensor**
    Photocell**
    Dimmable option**
    Gray
    CUSTOM**
    Quick Mount
    **Optional with adder
      *Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
    **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
       Actual production units may vary from the values reported here by up to +/-10%.
