SML-106

  • Utilizing the latest generation of LED chips, this uniquely designed wall pack delivers a similar light output to a 150/200 W metal halide but with only 1/3 energy consumption.
    Housing made of die-casting aluminum with reliable powder coating specifically for harsh outdoor environment.
    It is attractive in appearance and performance.

    -UL and CUL listed for wet locations
    -Die cast aluminum body
    -New generation COB technology
    -DLC Listed
    -UV stabilized powder coated finish
    -Heat and impact resistant borosilicate glass
    -Optional Wire Guard / Visor with adder


  •   Download Datasheet
    Model Number SML-106-L1 SML-106-L2 SML-106-L2
    System Wattage 40W 53W 75W
    Delivered Lumens (Lms.) 4303 lm** 5594 lm** 9471 lm**
    Efficacy (Lm/W) 108 lm/w 106 lm/w 126 lm/w
    Color Rendering Index (CRI) 70+
    Color Temperature (CCT) 4000K / 5000K
    Input Voltage 120~277VAC
    MA 950 MA 700 MA 950 MA
    Equivalent 100W MH 100-150W MH 250W MH

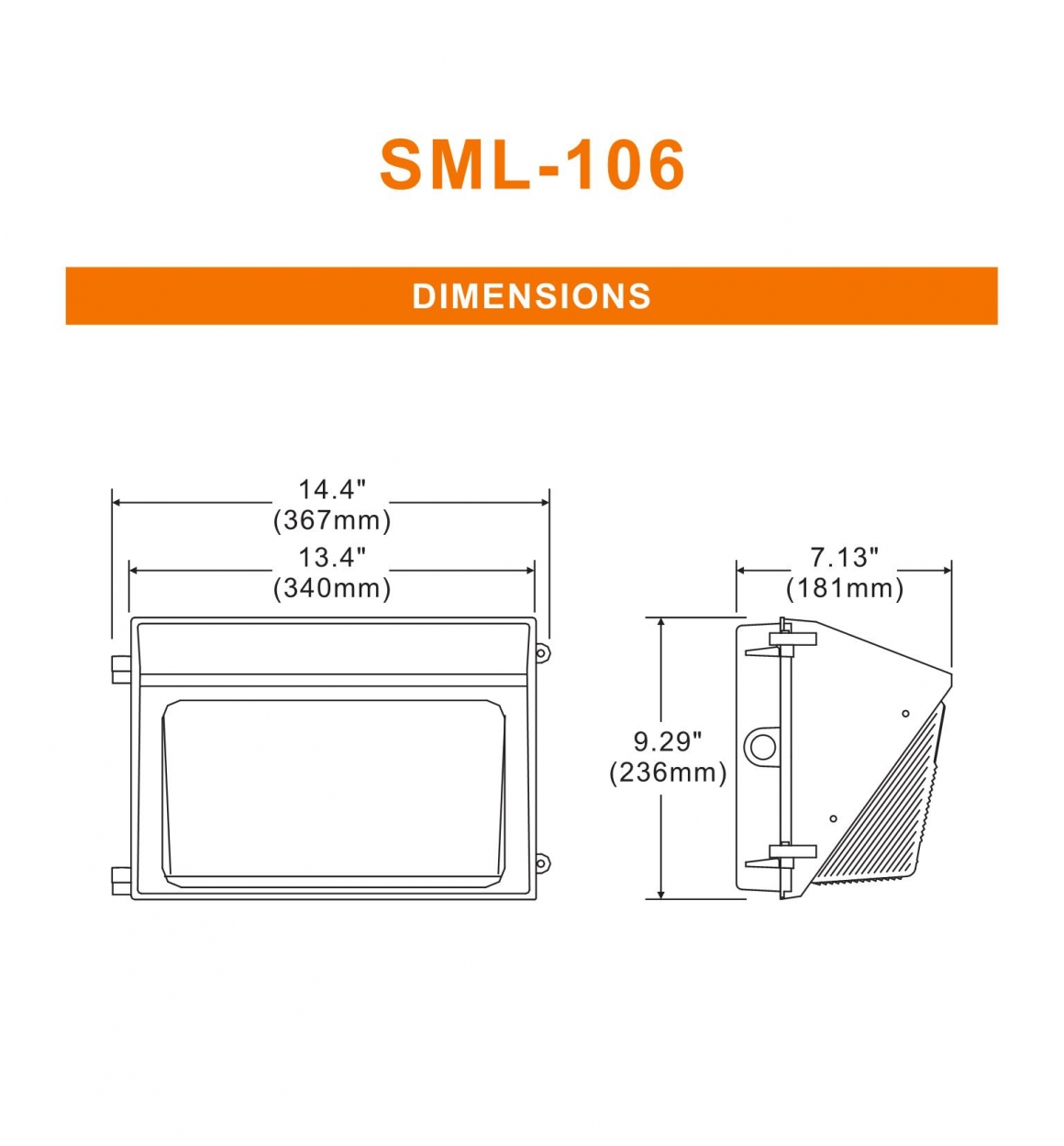

    Dimensions (Inches) 14.4" x 7.13" x 9.29" inches
    Weight (kg / lb) 6.23 kg / 13.73lb

    Build Your Order
    Model
    Number
    System
    Wattage
    Electrical Voltage CCT Housing
    Finish
    Mounting Accessories
     SML-106-L1
    SML-106-L2
    SML-106-L2
    40W
    53W
    75W
    N/A
    120-277VAC

    5000K
    CUSTOM**
    Bronze
    Black**​
    CUSTOM**
    Surface Mount Wire Guard**
    Visor**
    **Optional with adder
      *Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
    **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
       Actual production units may vary from the values reported here by up to +/-10%.
