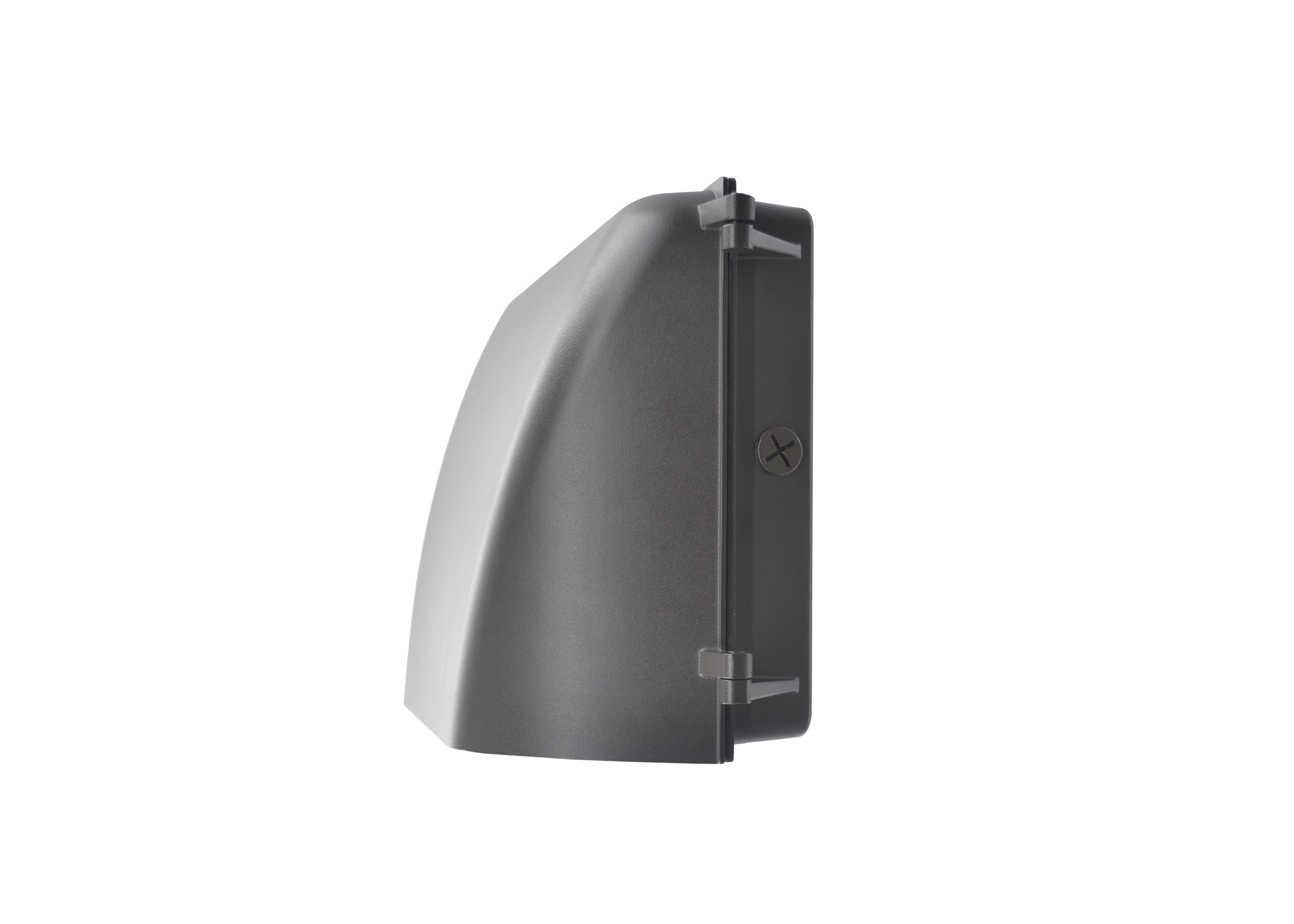

LED-1160

  • This newly designed luminaire with built-in heatsink in casting featuring it's versatility that can be served as wall light, flood light and etc.
    Incorporated with high performance LED module along with high quality optical reflector.
    This fixture performs efficiently and steadily against harsh outdoor environment.

    -UL and CUL listed for wet locations
    ​-Solid construction die-cast aluminum body
    -DLC Listed
    -Patented Fixture
    -UV stabilized powder coated finish
    -High impact resistant tempered glass.
    -Standard quick mount in the Grandlite unit saves time and money during installation. Integrated lever ensure the job is always done right.
    -Grandlite Unit is standard 120-277V with 4KV surge protector and -400C feature. Works in COLD weather.
    -Preset drilling locations allow contractor for faster and precise installation.
    -The unit is capable of doing through wiring, making the job easy and fast.
    -Integrated Internal heatsink helps cool the LED and prevents any gather of extrenal dust and debris.
    -Multi-Tap (120V-277V) button Photocell is an available option as adder.
    -Tempered glass is standard on the Grandlite unit.
  •  Download Datasheet
    Model Number LED-1160
    System Wattage 27W 40W 49W 74W
    Delivered Lumens (Lms.) 3849 lm** 5017 lm** 6272 lm** 9896 lm**
    Efficacy (Lm/W) 142 lm/w 125 lm/w 128 lm/w 134 lm/w
    Color Rendering Index (CRI) 70+
    Dist. Type Type II
    Color Temperature (CCT) 4000K / 5000K
    Input Voltage 120-277V
    MA 950MA 950MA 700MA 950MA
    Equivalent 50-70W MH 100W MH 100W-250W MH 250W MH
    Dimensions (Inches) 9.3" x 5.7" x 14.3" inches


    Build Your Order
    Model
    Number
    System
    Wattage
    Voltage CCT Electrical Housing
    Finish
    Mounting
    LED-1160 27W
    120-277V

    5000K
    CUSTOM**

    Photo control**
    Sensor**


    Bronze​
    CUSTOM**
    Hook
    Stem**
    40W
    49W
    74W
    **Optional with adder
      *Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
    **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
       Actual production units may vary from the values reported here by up to +/-10%.
