GRPL-10A-C/S

  • This attractive, newly redesigned heavy-duty bollard features full proof aluminum construction housing, providing corrosion and vandal resistance,
    ideal for lighting pedestrian walkways, as well as accenting the exterior grounds of office and apartment buildings, hotels and parks.
    A solid construction withstands the elements, driver options work in even the worst weather conditions.

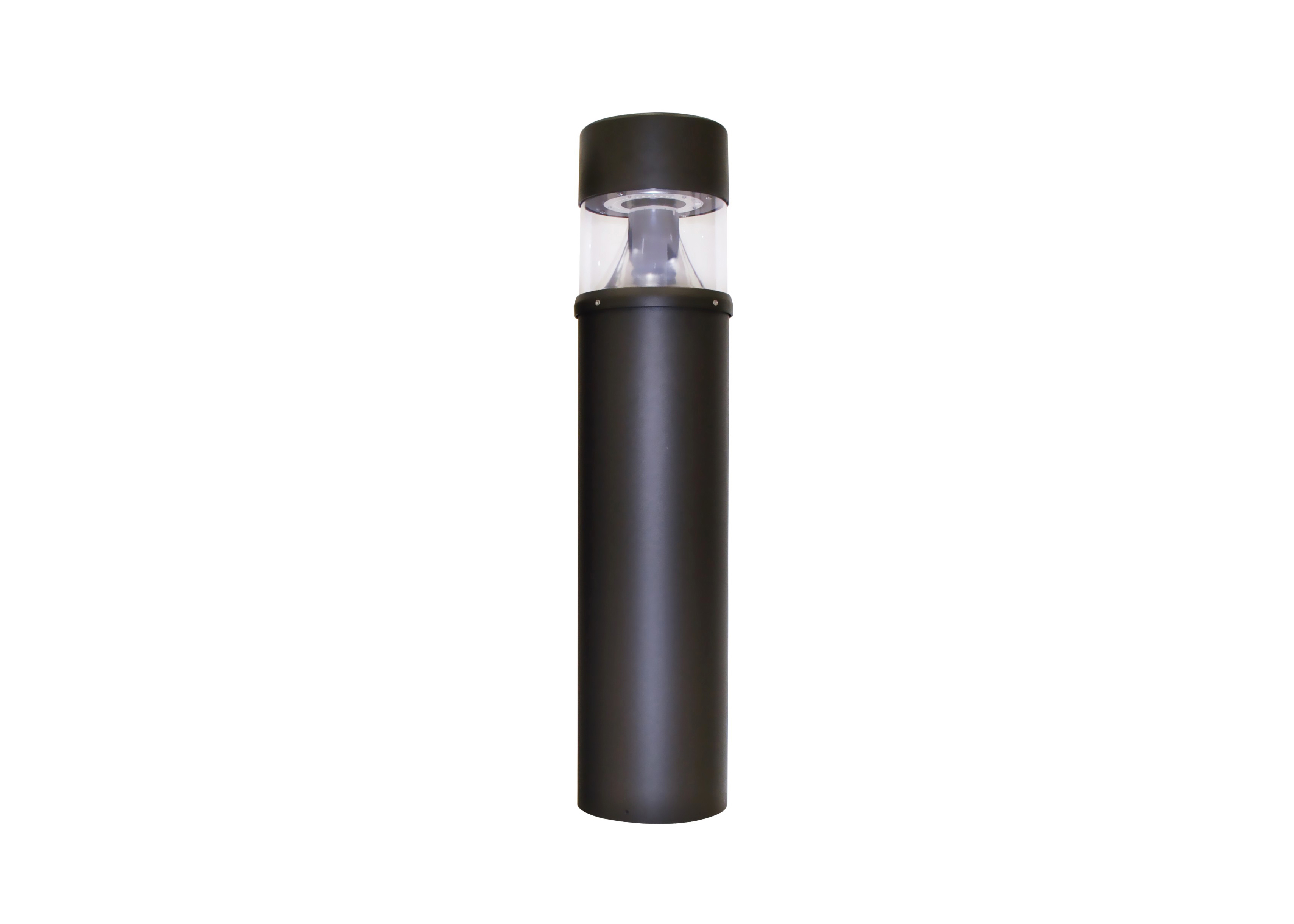

    -GRPL-10A-C:  Cylinder Top  (Flat)

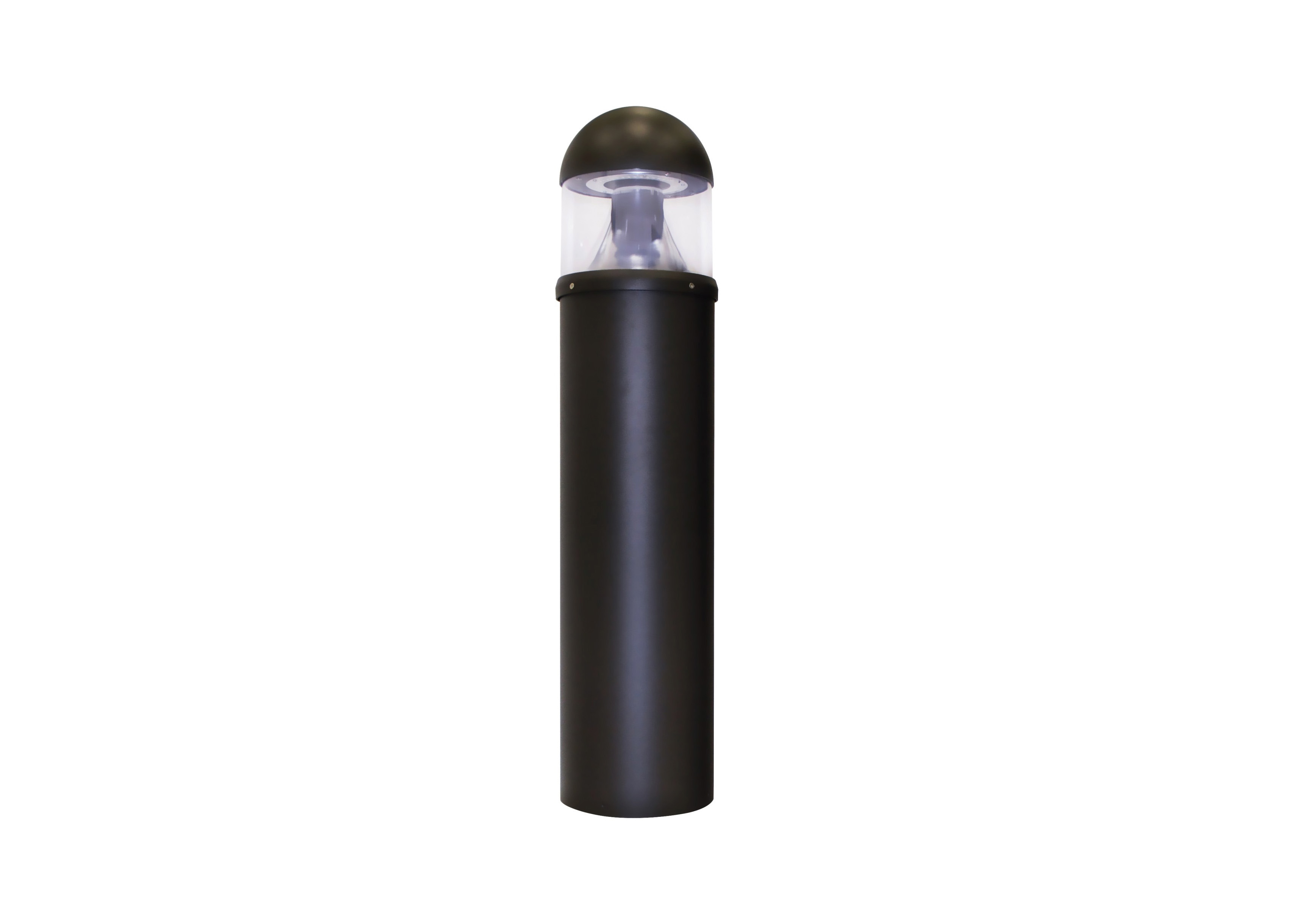

    -GRPL-10A-S:  Sphere Top  (Round)


    -UL and CUL listed for wet locations.
    -DLC Premium Listed.
    -Consisting of an extruded aluminum alloy body.
    -Standard 4kV surge.
    -High-impact polycarbonate diffuser.
    -Options:  Anodized alumimum reflector.
    -Finish: Bronze.
    -Dist. Type:  Type V.

    Features:
    -LED compartment is airtight to prevent fogging and condensation build up and keep water out.
    -Aluminum reflector designed to reduce glare and produce an even distribution.
    -Clear UV resistant polycarbonate lens allows for optimal light transmission and protects the light engine compartment from harsh environments.
    -Driver is mounted under the LED compartment for easy replacement and to pretect from water, that may accumulate in the base of the bollard.
    -Torx security screws secure the LED compartment to the base to gter vandalism.
    -Versatile mounting plate allows for easy installation and replacement for any project or development.
    -Extruded aluminum tube provides strength and durability as well as protects and conceals the component wiring.
    -Terminal block provided on base bracket for easy installation on incoming supply wires.
    -Quick disconnect located near the terminal block for simple connection to the LED driver.
    -Working temperature: -40
    0C ~ + 500C .

  •  Download Datasheet
    Model Number GRPL-10A-S (Sphere Round) GRPL-10A-C (Cylinder Flat)
    System Wattage 18W 36W 18W 36W
    Delivered Lumens (Lms.) 2035 lm**  (Type V) 3960 lm** (Type V) 2035 lm** (Type V) 3960 lm** (Type V)
    Efficacy (Lm/W) 113 lm/w 110 lm/w 113 lm/w 110 lm/w
    Color Rendering Index (CRI) 70+
    Color Temperature (CCT) 4000K / 5000K
    Input Voltage 120~277V

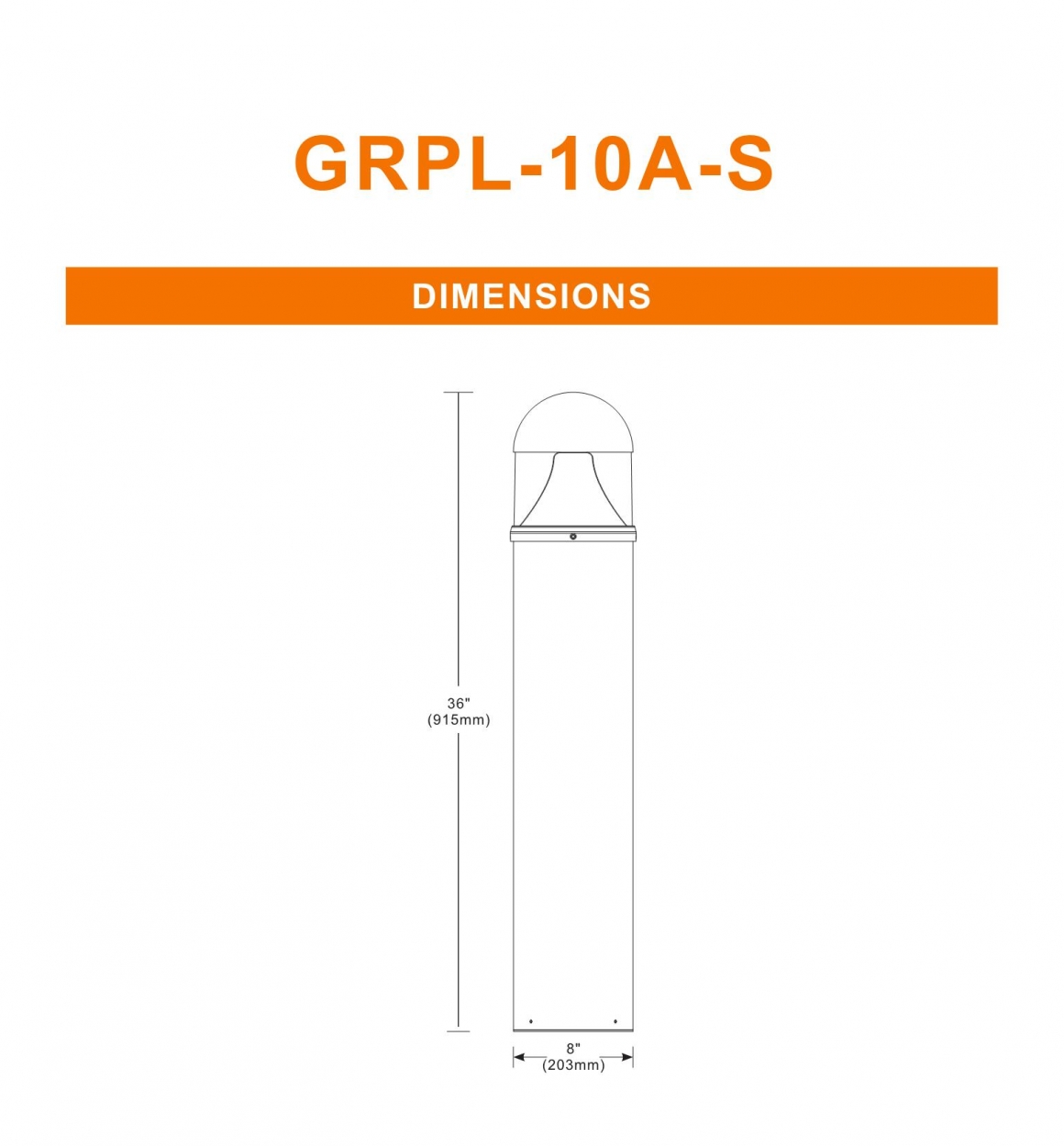

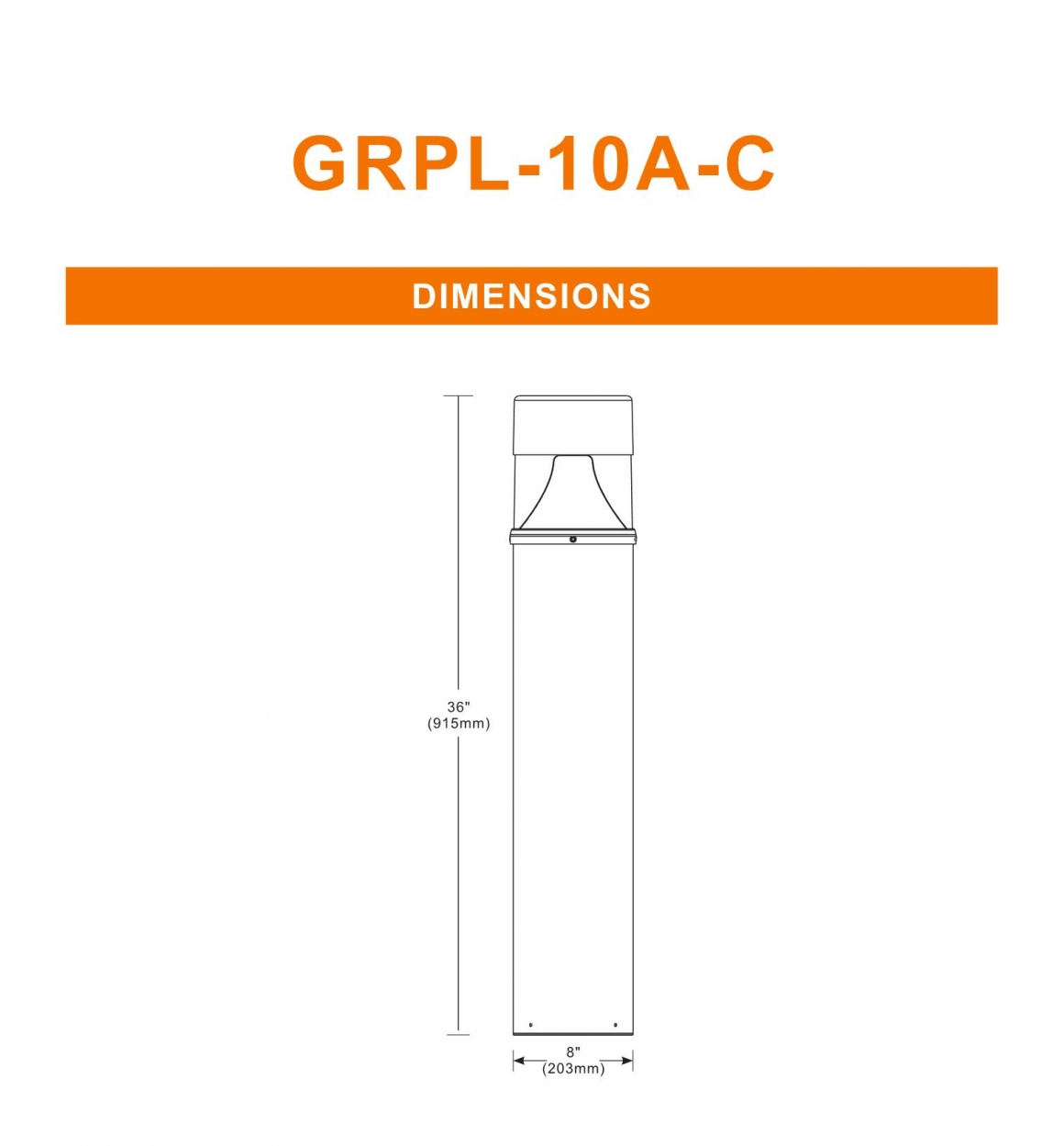

    Dimensions (Inches) 8" * 8" * 36" inches
    Weight (kg / lb) 12kgs / 26.43lbs

    Build Your Order
    Model
    Number
    System
    Wattage
    Voltage CCT Housing
    Finish
    Mounting Accessories
    GRPL-10A-S (Sphere)
    GRPL-10A-C (Cylinder)
    18W
    36W
    120-277V 4000K / 5000K
    • Custom
    BRONZE
    • Custom
    Versatile mounting plate allows for easy installation
    and replacement for any project or development
    Standard 4kV Surge protector
    Anodized alumimum reflector
    **Optional with adder
      *Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
    **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
       Actual production units may vary from the values reported here by up to +/-10%.
