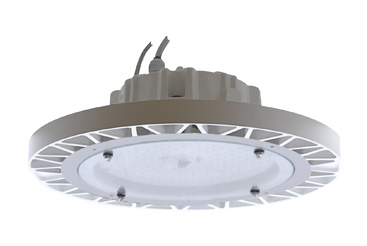

LED-468R-F

A unique feature is the quick disconnected cable, it can quickly seperate the driver from the LED module for easy maintenance. The unit has built-in heat sink and comes with a hook made of die-cast aluminum for a strong and easy installation.

-UL and CUL listed for damp locations
-Superior heavy duty die cast aluminum construction
-Heat and impact resistant tempered glass

Features:
-Driver for east installation and replacement.
-Heavy-duty one complete piece die cast proivdes maximum heat dissipation.
Cooling Fins are added to increase the ambience temperature to 50⁰C standard.
-New Generation LED Chips inside, cover with Round Elegant clear tempered glass.
-Options available with Aircraft Spun Aluminum Powder painted white or PMMA reflector.
-Optional Clamp Band and Flat Glass / or Optional Clamp Band and AL Reflector / or Optional Clamp Band and PMMA Reflector
-Options with 347V with adder.

Model Number	LED-468R-F(120W)	LED-468R-F(160W)	LED-468R-F(200W)
System Wattage	120W	160W	200W
Delivered Lumens (Lms.)	15391 lm**	22204 lm**	25000 lm**
Efficacy (Lm/W)	128 lm/w	138 lm/w	125 lm/w
Color Rendering Index (CRI)	80+
Color Temperature (CCT)	4000K / 5000K
Input Voltage	120-277V
Dimensions (Inches)	13.8"x 13.8"x7.8" inches
Dist. Type	Type VS
Weight (kg/ lb)	5.25 kg / 11.56 lb

Build Your Order

Model Number	System Wattage	Voltage	CCT	Electrical	Housing Finish	Mounting
LED-468R-F (120W)	120W	120-277V 347V**	4000K 5000K CUSTOM**	Photo control**	BLACK CUSTOM**	die-cast Hook
LED-468R-F (160W)	160W
LED-468R-F (200W)	200W

**Optional with adder
*Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
**Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
Actual production units may vary from the values reported here by up to +/-10%.
