Grandlite International Corp




  • A unique feature is the quick disconnected cable, it can quickly seperate the driver from the LED module for easy maintenance. The unit has built-in heat sink and comes with a hook made of die-cast aluminum for a strong and easy installation.

    -UL and CUL listed for damp locations
    -Superior heavy duty die cast aluminum construction
    -Heat and impact resistant tempered glass

    -Driver for east installation and replacement.
    -Heavy-duty one complete piece die cast proivdes maximum heat dissipation.
       Cooling Fins are added to increase the ambience temperature to 500C standard.
    -New Generation LED Chips inside, cover with Round Elegant clear tempered glass.
    -Options available with Aircraft Spun Aluminum Powder painted white or PMMA reflector.
    -Optional Clamp Band and Flat Glass / Optional Clamp Band and AL Reflector / Optional Clamp Band and PMMA Reflector
    -Options with 347V with adder.
  •  Download Datasheet

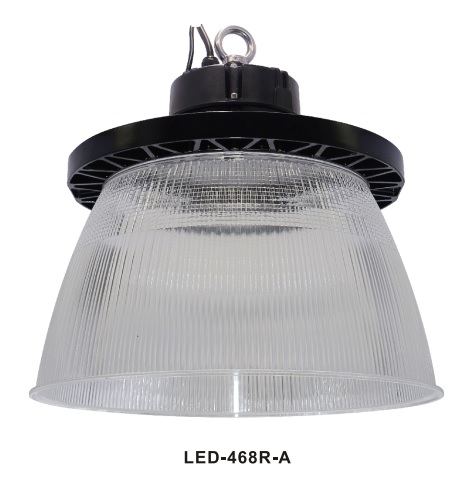

    Model Number LED-468R-A(120W) LED-468R-A(160W) LED-468R-A(200W)
    System Wattage 120W 160W 200W
    Delivered Lumens (Lms.) 15391 lm** 22204 lm** 25000 lm**
    Efficacy (Lm/W) 128 lm/w 138 lm/w 125 lm/w
    Color Rendering Index (CRI) 80+
    Color Temperature (CCT) 4000K / 5000K
    Input Voltage 120-277V
    Dimensions (Inches) 16.2" x 16.2"x 16"  inches
    Dist. Type Type VS
    Weight (kg / lb) 6.75 kg / 14.86 lb
    Build Your Order
    Voltage CCT Electrical Housing
    LED-468R-A (120W) 120W 120-277V
    Photo control** BLACK
    die-cast Hook
    LED-468R-A (160W) 160W
    LED-468R-A (200W) 200W
    **Optional with adder
      *Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
    **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
       Actual production units may vary from the values reported here by up to +/-10%.
