Grandlite International Corp

LED-3945

LED-3945
LED CANOPY LIGHT

This canopy light has a slim and low profile design which provides a safe and visually appealing lighting experience.
Luminaire can be mounted directly or with 3/4" pendant mounting option. Quick mount structure allows for contractors to work safely and easily in the confined space areas.
With the patented smart controller, this canopy allows multiple wattages and CCT to choose from . It is the perfect upgrade from a 1 OOW metal halide lamp with the benefit of low maintenance cost.



  • LED CANOPY LIGHT

    -UL and CUL listed
    ​-Solid construction die cast aluminum body.
    ​-UV stabilized powder coated finish.
    -Unique quick mount design.
    -High-impact acrylic diffuser.
    -DLC Listed.
    -Optional Photo Control with adder.
    -Finish:  Bronze, Glare Free.


    Model Number LED-3945
    System Wattage 8/16/23/26W 14/25/37/42W
    Delivered Lumens (Lms.) 3349 lm** 5451 lm**
    Efficacy (Lm/W) 136.5 lm/w 136 lm/w
    Color Rendering Index (CRI) 70+
    Color Temperature (CCT) 5000K
    Input Voltage 120~277V
    MA 950 MA
    Equivalent 70-100W MH 100W MH

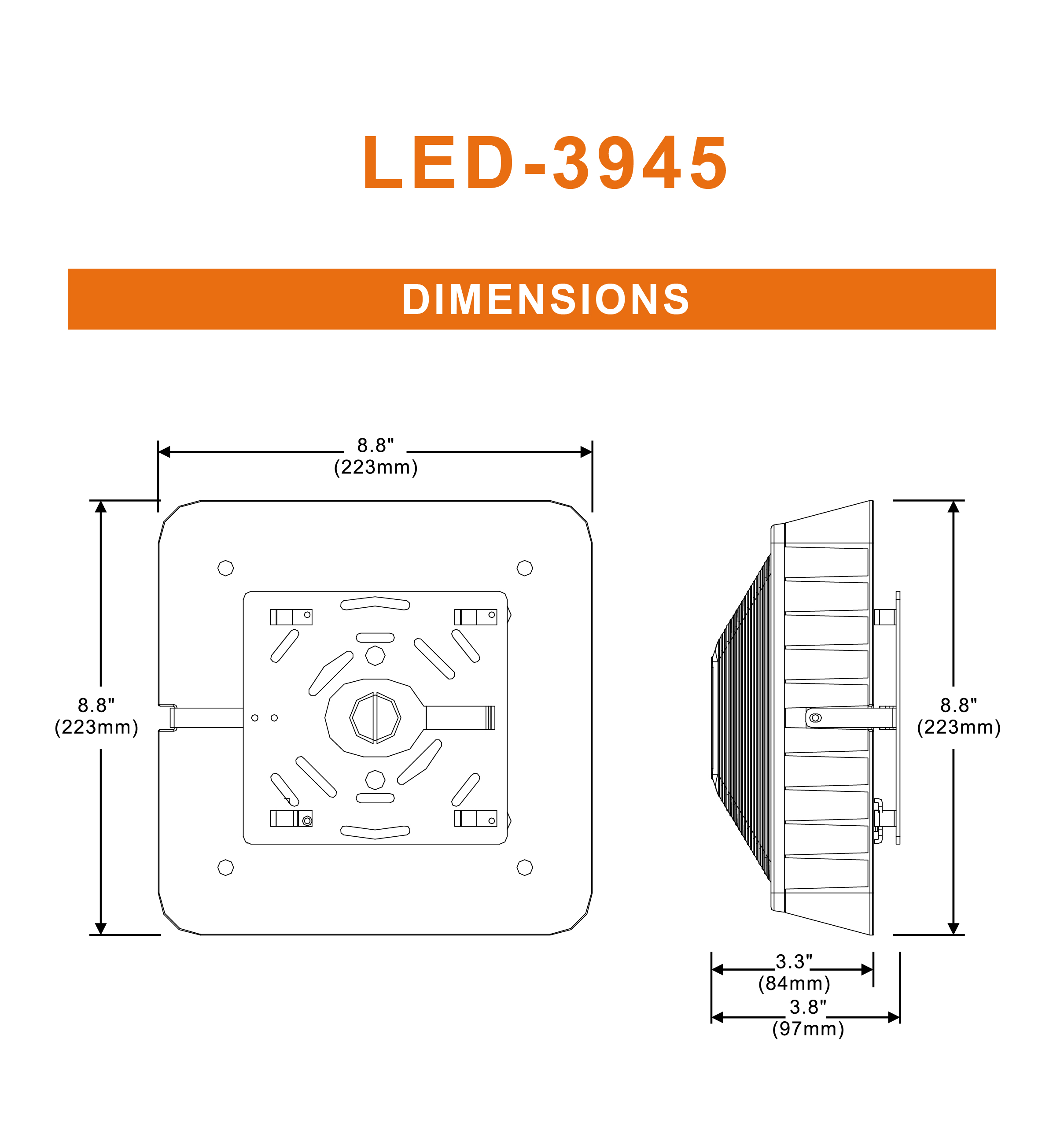

    Dimensions (Inches) 8.8" * 8.8" * 3.8"
    Weight (kg / lb) 2.5kg / 5.51lb

    Build Your Order
    Model
    Number
    System
    Wattage
    Voltage Electrical CCT Housing
    Finish
    Mounting
    LED-3945 26W
    42W
    120-277V

    Photo Control** 3000k
    4000k
    5000k
    CUSTOM**
    Bronze
    CUSTOM**
    Quick mount
    **Optional with adder
      *Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
    **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
       Actual production units may vary from the values reported here by up to +/-10%.
