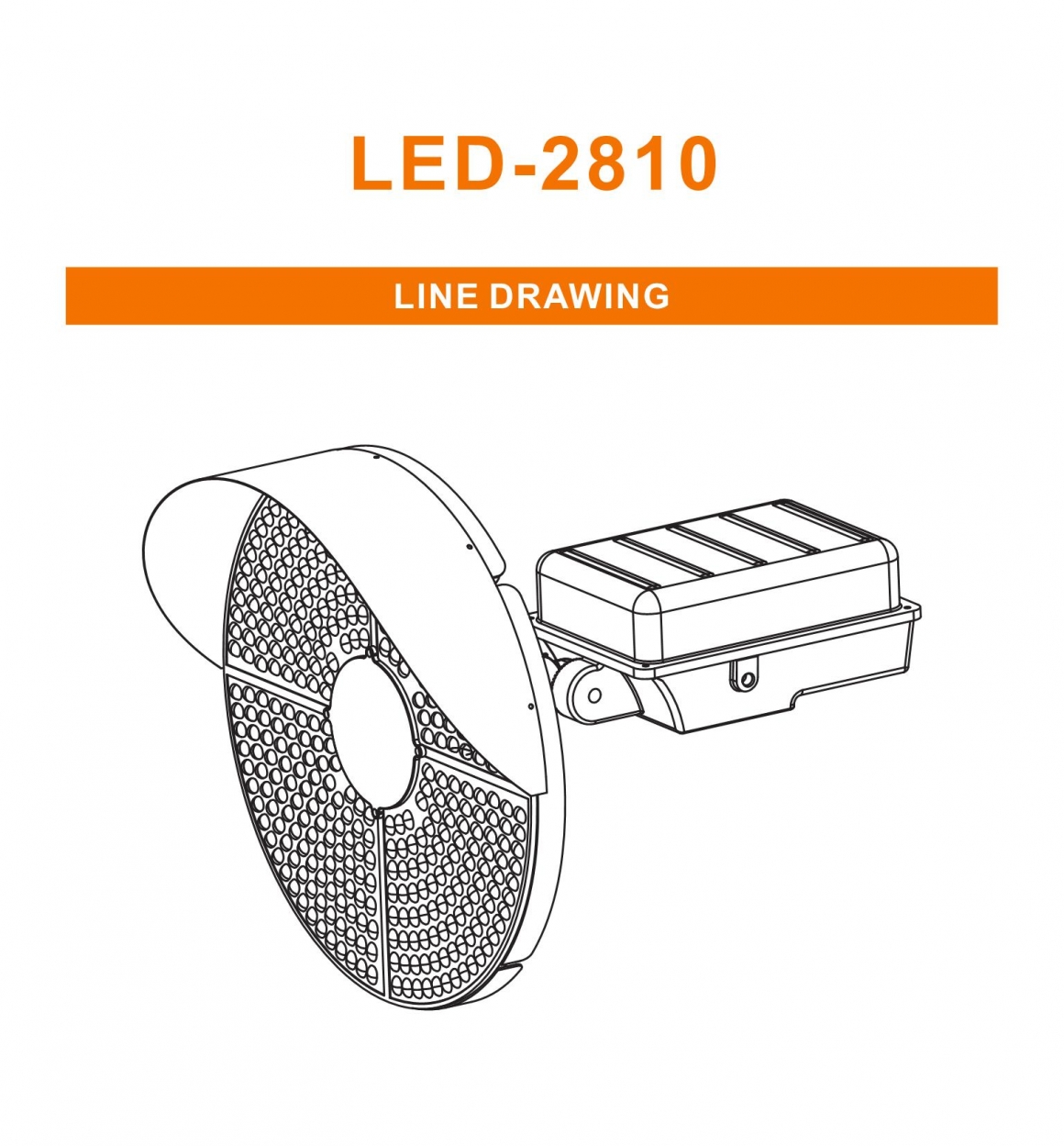

LED-2810

  • This powerful luminaire has been designed to meet diversified installation requirements.
    It can be used as a flood light and an area light.
    With built-in heat-sinks on the back of the luminaire, the LED-2810 provides truly spectacular light while keeping the LEDs at a cool temperature.

    -UL and CUL listed for wet location.
    -Die-cast aluminum and extruded aluminum body.
    -LEDs:   New Generation LED module.
    -UV stabilized powder coated finish
    -LENs:  Optional NEMA 3,  NEMA 5, or NEMA 7 optics with adder.
    -Dimmable optional  with adder.
    -Finish - Bronze. Color options with adder


  •  Download Datasheet
    Model Number LED-2810
    System Wattage      362W             425W         505W
    Delivered Lumens (Lms.)    54997 lm**              64375 lm** 76394 lm**
    Efficacy (Lm/W)  152 lm/w            152 lm/w 152 lm/w
    Color Rendering Index (CRI) 70+
    Color Temperature (CCT) 3000K / 4000K / 5000K
    Input Voltage 120~277V AC
    MA 114 MA 117 MA 117 MA
    Equivalent 1500W MH 2000W MH 2*1500W MH
    Dimensions (Inches)  28.3" X * 22.3" X 22.3" (inches)
    Weight (kg / lb) 12 kgs / 26.43 lb


    Build Your Order
    Model
    Number
    System
    Wattage
    Voltage CCT Housing
    Finish
    Mounting Accessories
              LED-2810            362W
    425W
    505W
      120-277V    5000K
    • Custom
     Bronze
    • Custom
      LENS: Optional NEMA 3, NEMA 5, NEMA 7
    optics with adder
    Dimmable options with adder
    ** Optional with adder
    ** Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
    ** Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
        Actual production units may vary from the values reported here by up to +/-10%.
