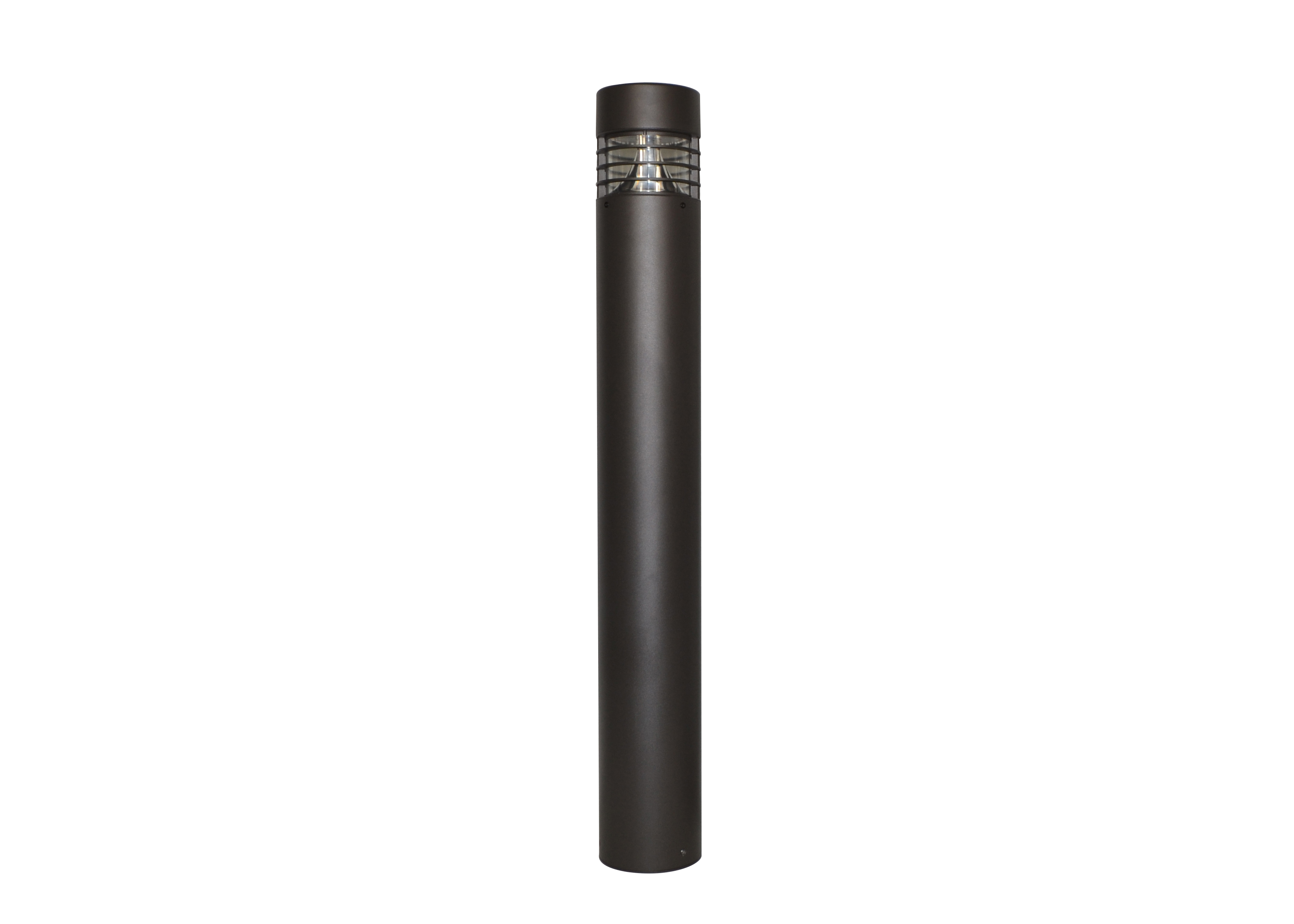

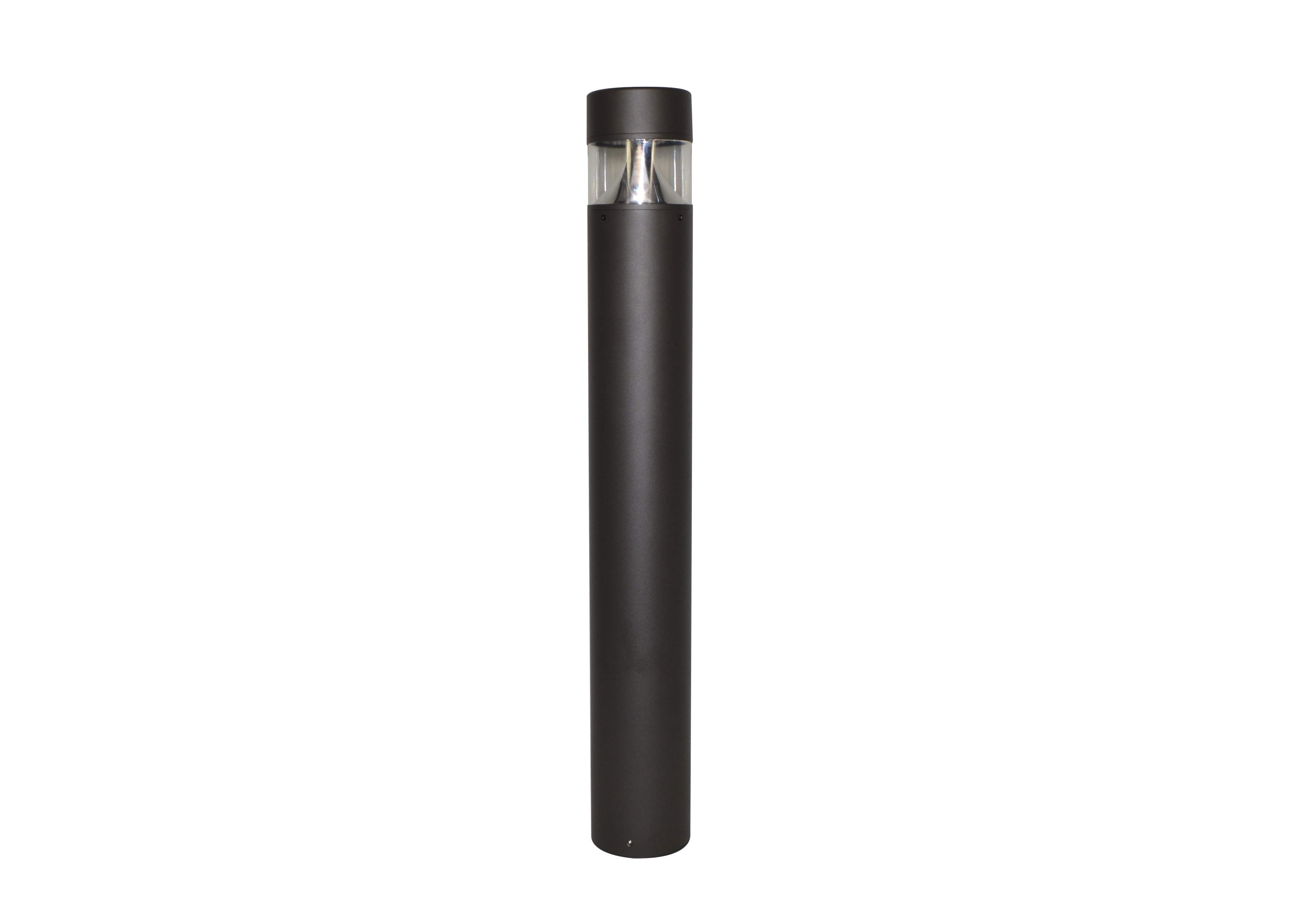

GRPL-5510 / GRPL-5520

GRPL-5510/5520
LED Bollard

This attractive, newly redesigned heavy-duty bollard features full proof aluminum construction housing, providing corrosion and vandal resistance,
ideal for lighting pedestrian walkways, as well as accenting the exterior grounds of office and apartment buildings, hotels and parks.
A solid construction withstands the elements, driver options work in even the worst weather conditions.
Spec. Download
  • LED Bollard

    -UL and CUL listed for wet locations.
    -DLC Premium Listed.
    -Consisting of an extruded aluminum alloy body.
    -Standard 4kV surge.
    -High-impact polycarbonate diffuser.
    -Options:  Anodized alumimum reflector.
    -Finish: Bronze.
    -Dist. Type:  Type V.

    Features:
    -LED compartment is airtight to prevent fogging and condensation build up and keep water out.
    -Aluminum reflector designed to reduce glare and produce an even distribution.
    -Clear UV resistant polycarbonate lens allows for optimal light transmission and protects the light engine compartment from harsh environments.
    -Driver is mounted under the LED compartment for easy replacement and to pretect from water, that may accumulate in the base of the bollard.
    -Torx security screws secure the LED compartment to the base to deter vandalism.
    -Versatile mounting plate allows for easy installation and replacement for any project or development.
    -Extruded aluminum tube provides strength and durability as well as protects and conceals the component wiring.
    -Terminal block provided on base bracket for easy installation on incoming supply wires.
    -Quick disconnect located near the terminal block for simple connection to the LED driver.
    -Working temperature: -40    ﾟC ~ + 50ﾟC .


    Model Number GRPL-5510 GRPL-5520
    System Wattage 20W 30W 20W 30W
    Delivered Lumens (Lms.) 2456 lm 3410 lm 706 lm 1231 lm
    Efficacy (Lm/W) 129 116 37 42

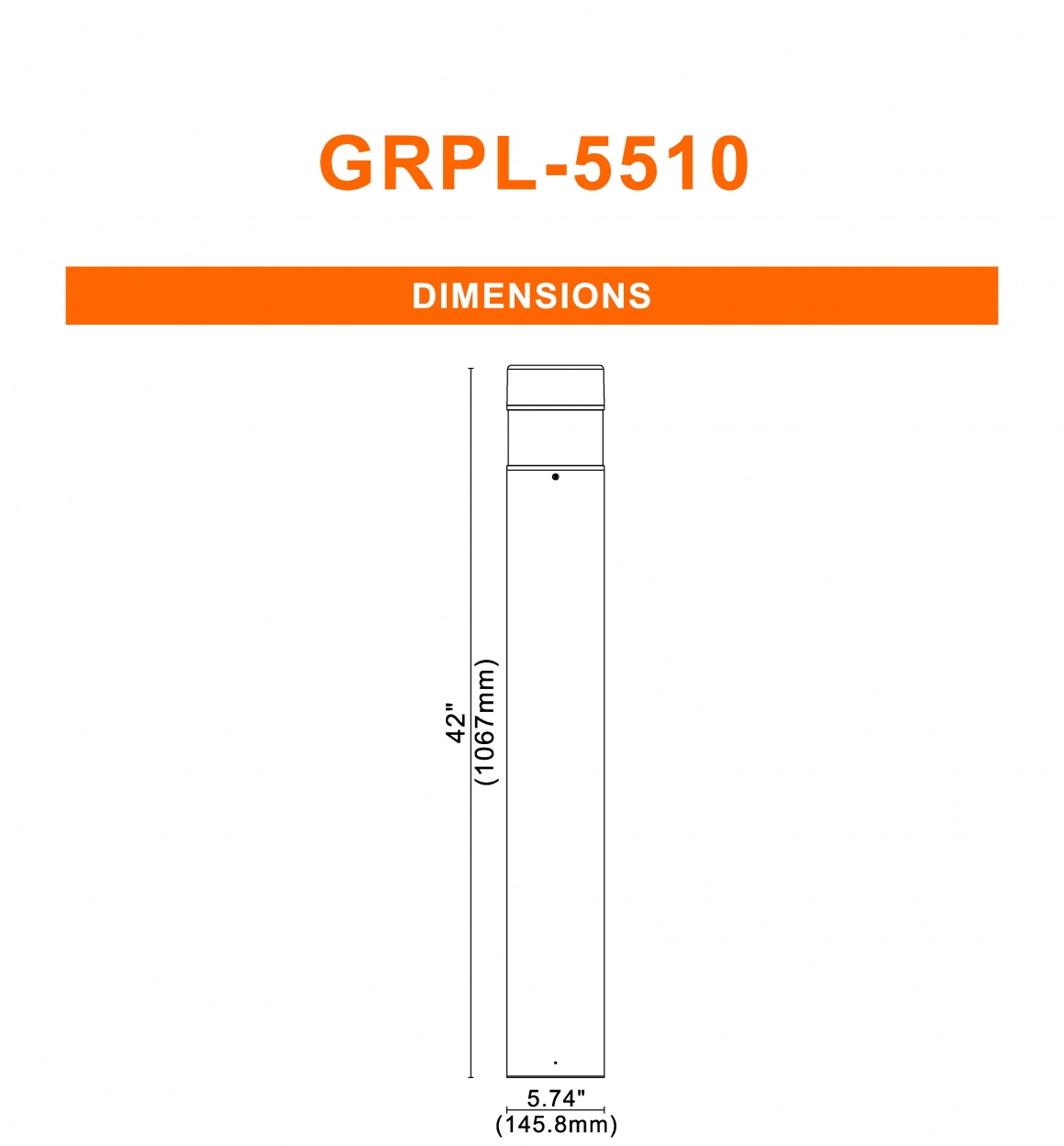

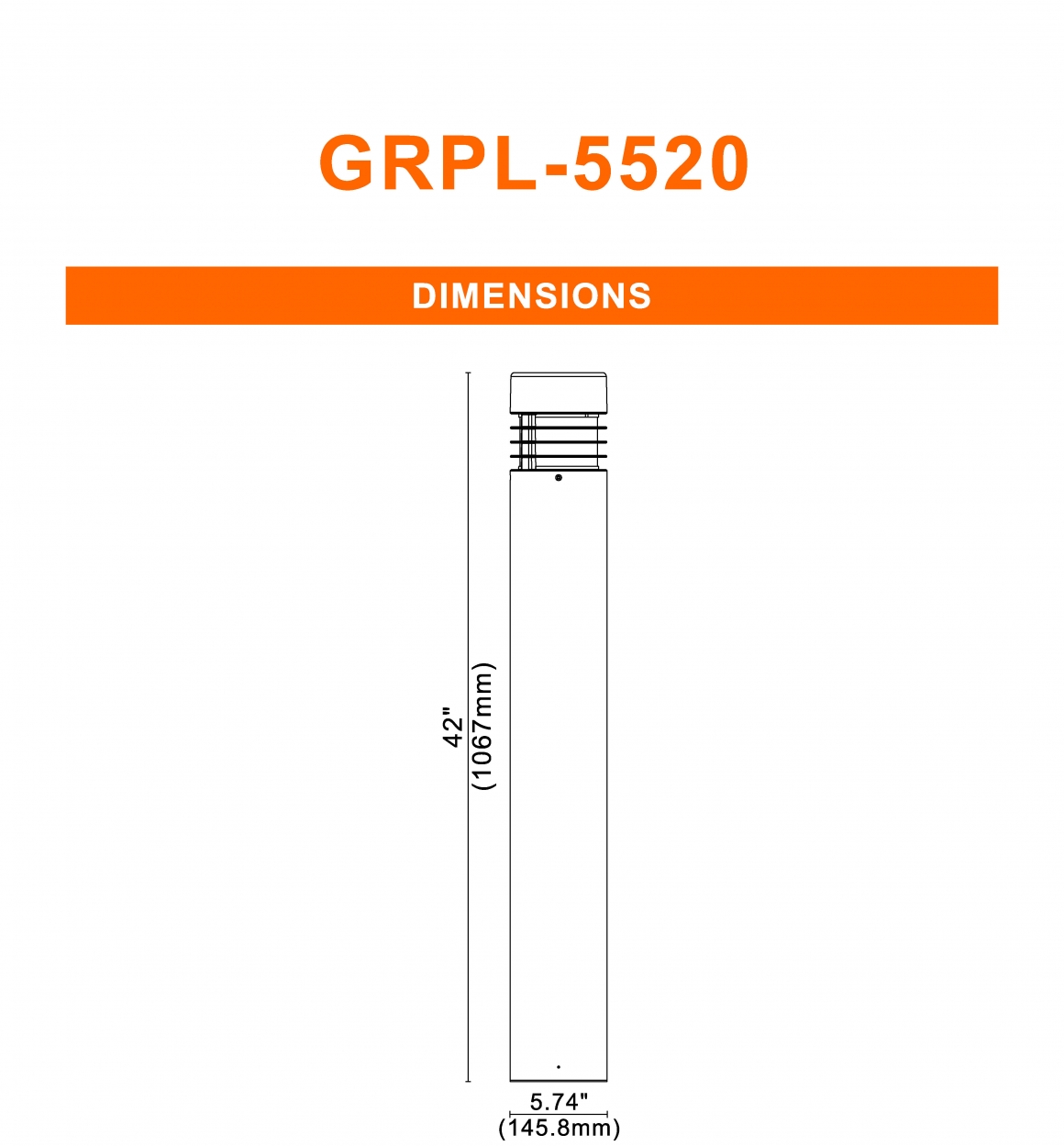

    Dimensions (Inches) 5.74" * 5.74" * 42" inches
    Color Rendering Index (CRI) 70+
    Color Temperature (CCT) 3000K/4000K/5000K
    Dist. Type TYPE V

    Build Your Order
    Model
    Number    		 System
    Wattage    		 Voltage CCT Housing
    Finish    		 Mounting Accessories
    GRPL-5510
    GRPL-5520
          		 20W
    30W    		 120-277V     3000K
       4000K
        5000K
    • Custom
         		 BRONZE
    • Custom         		 Versatile mounting plate
    allows for easy installation
    and replacement for any project
    or development    		 Standard 4kV Surge protector
    Anodized alumimum reflector

    **Optional with adder
      *Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
    **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
       Actual production units may vary from the values reported here by up to +/-10%.


  •  Download Datasheet
