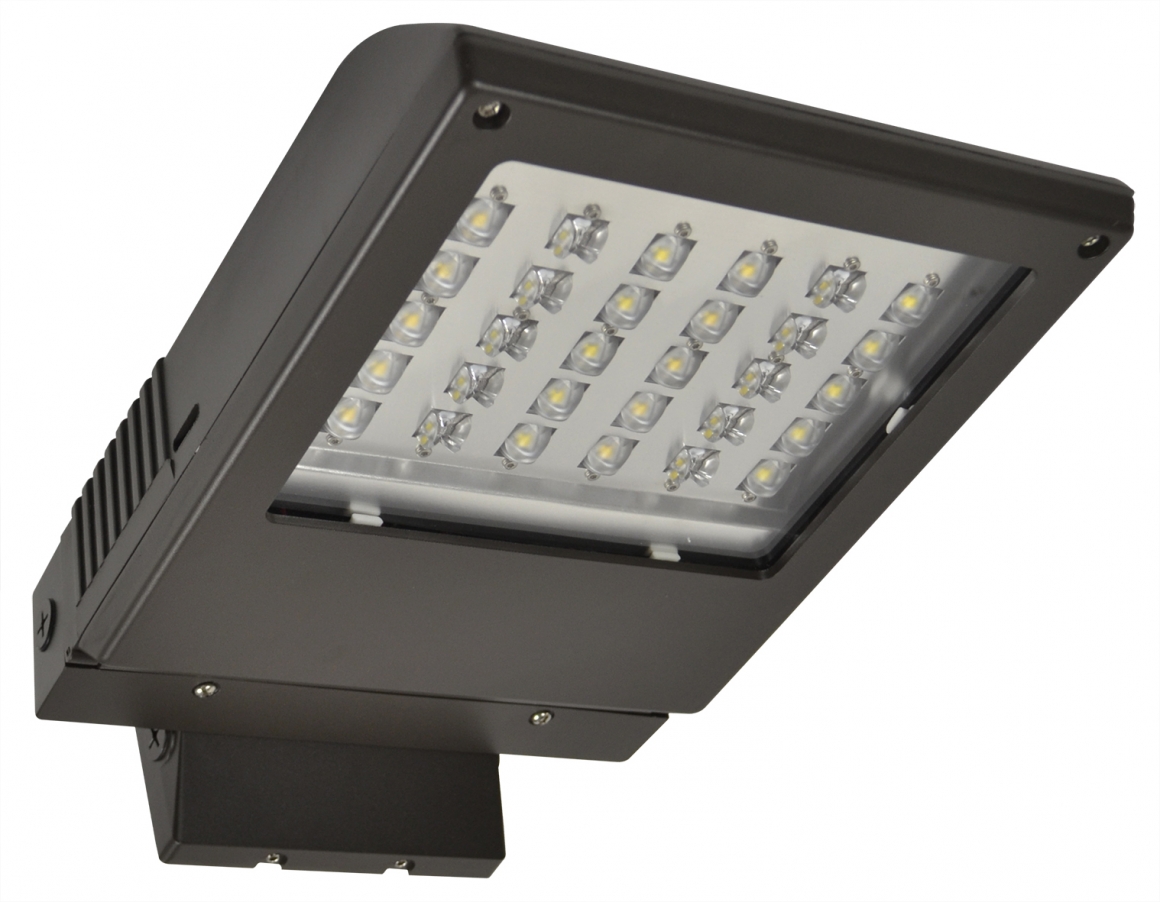

LED-575-L30
-
Utilizing a clean design formula the performance is appropriate for environments where elegance is required.
With a strategic lens providing various light distributions along with newest generation of LED module,
this fixture is sufficient to provide the desired illumination when required.
Ideally used for illumination of walkways, parking lots, and other public places.
This unit is uniquely designed with front hinged door frame for easy maintenance and it's own J-box for thru-wiring.
-UL and CUL listed for wet locations
-UV stabilized powder coated finish
-Solid constructed die-cast aluminum body
-Front hinged door frame
-Lens: Transparent Clear Tempered Glass
-with Quick Mount.
-Optional optical lenses available with adder.
-Options with Photo Control.
-Finish: Bronze. Color Option with adder.
Mouting Options:
(1) Wall Pack base:
(2) Pole Mount: PM
(3) U Bracket -
Download Datasheet
Model Number LED-575-L30 System Wattage 59W Delivered Lumens (Lms.) 5955 lm** Efficacy (Lm/W) 101 lm/w Color Rendering Index (CRI) 70+ Color Temperature (CCT) 5000K Input Voltage 120~277V MA 500 MA Equivalent 200W MH Dimensions (Inches) 16.28" x 11" x 2.44" inches Weight (kg / lb) 7.06 kg /15.5lb
Build Your OrderModel
NumberSystem
WattageDistribution Voltage CCT Electrical Housing
FinishMounting LED-575-L30 59W Wide
Narrow120-277V 5000K
CUSTOM**Photo Control** Bronze
CUSTOM**Quick Mount
Pole Mount
U-Bracket**Optional with adder
*Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
**Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
Actual production units may vary from the values reported here by up to +/-10%.
