SML-352

SML-352

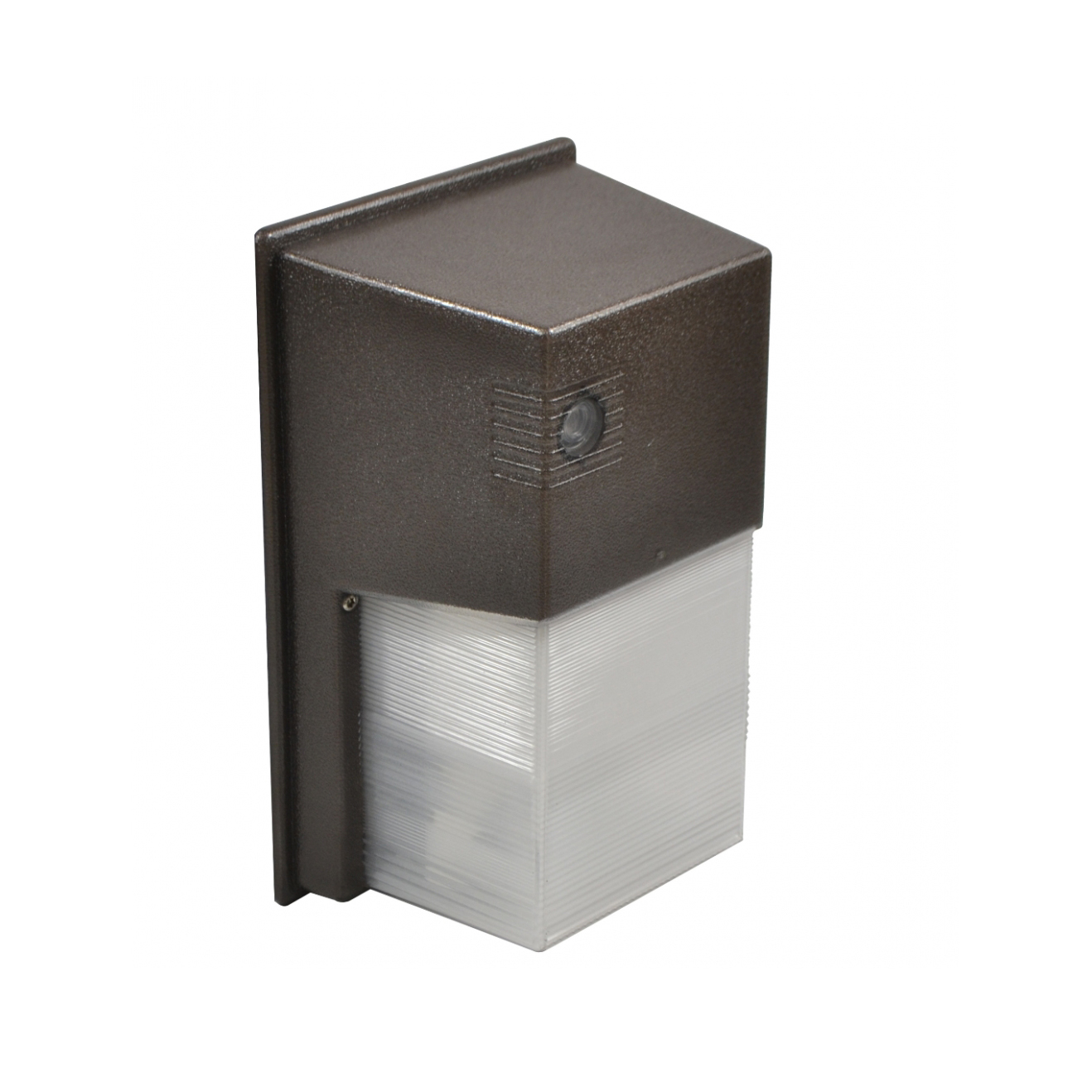

LED SURFACE MOUNT LIGHT

Utilizing the latest generation of LED chips, this uniquely designed wallpack delivers a similar light output to a 70W metal halide but with only 1/3 energy consumption.
Housing made of die-casting aluminum with reliable powder coating specifically for harsh outdoor environment.
It is attractive in appearance and performance.


  • -UL and CUL listed for wet locations
    -Solid construction die cast aluminum body
    -Prismatic lens for uniform light distribution
    -Photo control included
    -Finish- Bronze / White



    Model Number SML-352
    System Wattage 15W    19W
    Delivered Lumens (Lms.) 1769 lm**  2131 lm**
    Efficacy (Lm/W) 118 lm/w 113 lm/w
    Color Rendering Index (CRI) 70+
    Color Temperature (CCT) 5000K
    Input Voltage 120~277V
    MA 300MA 480MA
    Equivalent 50W-70W MH 70W-100W MH
    Dimensions (Inches) 6.89"x11.02"x5.24" inches
    Weight (kg / lb) 2.5 kg / 5.51lb

    Build Your Order
    Model
    Number
    System
    Wattage
    Electrical Voltage CCT Housing
    Finish
    Mounting
    SML-352 15W
    19W
    With 120V
    Photo control
    120-277V 5000K
    CUSTOM**
    Bronze
    White**​
    CUSTOM**
    Surface Mount
    **Optional with adder
      *Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
    **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
       Actual production units may vary from the values reported here by up to +/-10%.
