Grandlite International Corp

LED-797B

LED-797B
LED SURFACE MOUNT LIGHT

This elegant luminaire efficiently with a strategic lens providing various light distributions.
Using the latest generation of LED chips, this architectural wall light provides similar light output to a 150W metal halide for less than 1/3 the energy !

This fixture combines energy effociency, extreme long life, and unique design.



  • LED SURFACE MOUNT LIGHT

    -UL and CUL listed for wet location.
    -Through wiring.
    -​UV stabilized powder coated finish.
    -Precise optical lenses
    -Finish:  Bronze.  Color option with adder.



    Model Number LED-797B
    System Wattage 39W
    Delivered Lumens (Lms.) 4088 lm
    Efficacy (Lm/W) 105 lm/w
    Color Rendering Index (CRI) 70+
    Color Temperature (CCT) 5000K
    Input Voltage 120~277V
    MA 350MA
    Equivalent 150W MH

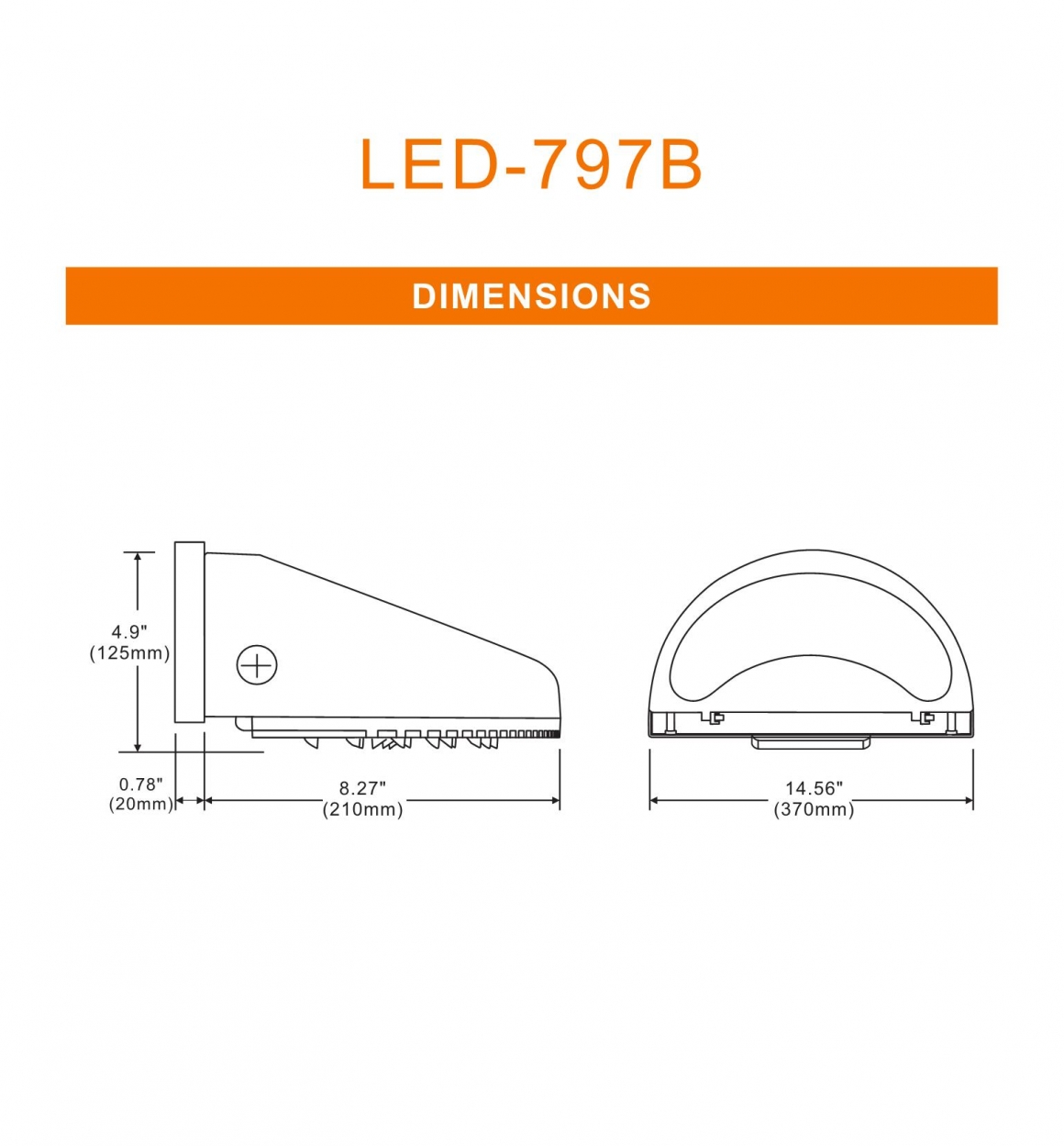

    Dimensions (Inches) 14.56" x 8.27" x 4.9" inches
    Weight (kg / lb) 4.67 kg / 10.2 lb

    Build Your Order
    Model
    Number
    System
    Wattage
    Distribution Voltage CCT Optional accessory Housing
    Finish
    Mounting
    LED-797B 39W Wide**
    Narrow**
    120-277V 5000K
    CUSTOM**
    Photo control** Bronze
    CUSTOM**
    Quick mount
    **Optional with adder
      *Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
    **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
       Actual production units may vary from the values reported here by up to +/-10%.
