LED-HBS

  • HIGH BAY LIGHTING
    With its slim design, this New High-Bay fom Grandlite seamlessly blends high quality housing and precision optics to produce a sleek, subtle aesthetic that meets most office ceiling application needs.
    With its built-in J-box design, this fixture is installation friendly.

    Ideal for office spaces, supermarkets, and meeting rooms.

    FEATURES:
    -UL and CUL listed
    -Housing made of high quality steel with high reflectance paint, providing high lumen output.
    -Ambient Temperature:  suitable for use in -40C to + 50
    C.
    -Efficacy:  Up to 130 lm/W.
    -CCT:  3000K / 4000K / 5000K.
    -CRI >   80+
    -Optics:  Transparent Lens or Frosted Lens producing superior uniformity.

    ELECTRICAL FEATURES:
    -Voltage:  120-277V standard, Class 2 constant current Drivers with 90% power factor, <20% THD. Driver efficiency (>90% standard); 50/60Hz;
    -4KV Surge prtector per ANSI/IEEE C62.412;
    -Dimming 0-10V driver Standard.
    -Microwave Motion Sensor optional.

    FINISHES:
    -Polyester powder white finish, Multi-stage process produces 3mil thickness for superior corrosion and maximum environment durability.
    -90% Efficient High efficiency lens provides wide coverage and uniformity for your application.
    -High Power and Efficient LED, making the fixture DLC Premium.
    -Easy access compartment provides friendly and fast installation. The contractor can do the wiring in the compartment from the top;
    -Emergency ballast optional;
    -The aluminum heatsink provide the most idea heat dissipation, making the fixture cool to the touch.
    -Cooling Channels.
    -Chain mounted or Pendant mounted.
    -Optional Microwave Motion Sensor for energy saving and control.
    -Knock-out Condult.
  •  Download Datasheet
    Model Number LED-HBS-60 LED-HBS-90 LED-HBS-150 LED-HBS-220
    System Wattage 63W 92W 157W 229W
    Delivered Lumens (Lms.) 8379 lm**  (Type V) 12784 lm** (Type V) 21272 lm**  (Type V) 31416 lm** (Type V)
    Efficacy (Lm/W) 133 138 136 145
    Color Rendering Index (CRI) 80+
    Color Temperature (CCT) 3000K / 4000K / 5000K
    Input Voltage 120~277V

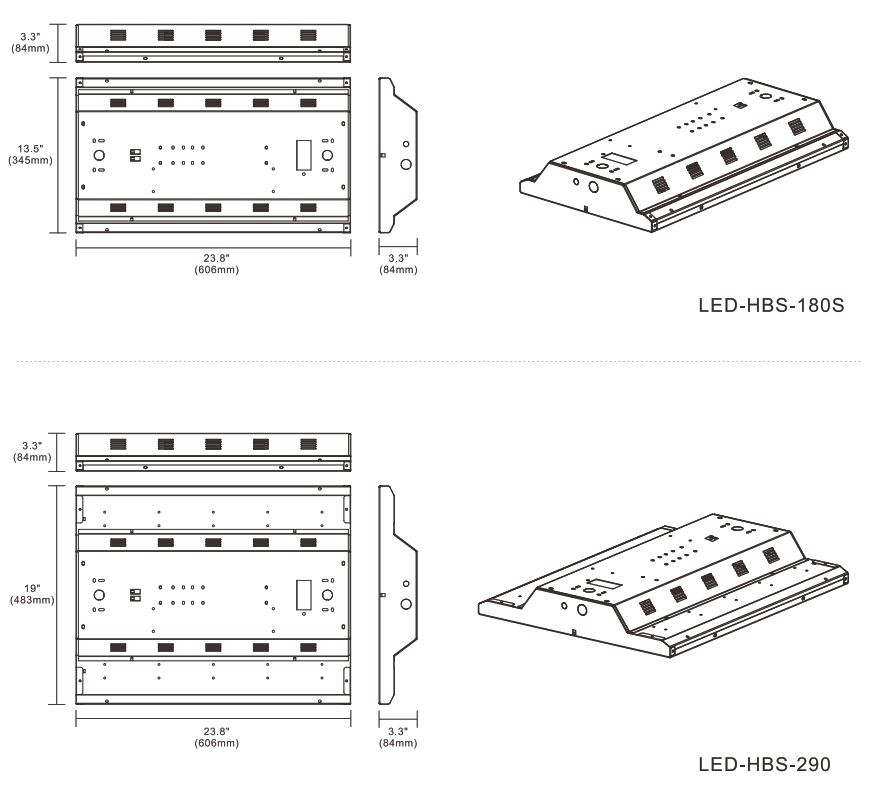

    Dimensions (Inches) 23.8" X 13.5" X 3.3" inches 23.8" X 19" X 3.3" inches
    Weight (kg / lb) 4.8kgs / 10.57lbs 6.8kgs / 14.98lbs

    Build Your Order
    Model
    Number
    System
    Wattage
    Voltage CCT Housing
    Finish
    Mounting Accessories
    LED-HBS-60
    LED-HBS-90
    LED-HBS-150
    LED-HBS-220


    63W
    92W
    157W
    229W
    120-277V 3000K
    4000K
    5000K
    • Custom
    WHITE
    • Custom
    Chain or Pendant  Dimmable 0-10V Driver standard
    Standard 4kV Surge protector
    Microwave Motions Sensor optional
    **Optional with adder
      *Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
    **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
       Actual production units may vary from the values reported here by up to +/-10%.
