Grandlite International Corp

LED-6073

LED-6073
LED AREA LIGHT

This sleek and modern luminaire has been designed to handle any environment.
With an appealing slimline design along with one of the highest lumen performance on the market,this versatile fixture can be used as a flood light or an area light. Including a multitude of mouting options, surge protection devices, IOT photocell capability, and the most technologically advanced LED's on the market, the LED-6073 is ready to conquer the lighting landscape.


  • -UL and CUL listed for wet location, DLC premium.
    -ONE-PIECE die-cast aluminum body with die-cast hinged driver access for easy installation.
    -LEDs:  The most technologically advanced LED chips in the market.
    -UV stabilized powder coated finish
    -Lens:  Optional Type III, Type IV,  Type V optics.
    -Standard 4kV Surge.
    -Finish - Bronze. Color options with adder



    Model Number LED-6073-L192 LED-6073-L264
    System Wattage 222W 308W
    Delivered Lumens (Lms.) 27500 38017
    Efficacy (Lm/W) 124 123
    Color Rendering Index (CRI) 70+
    Color Temperature (CCT) 4000K / 5000K
    Input Voltage 120~277 V

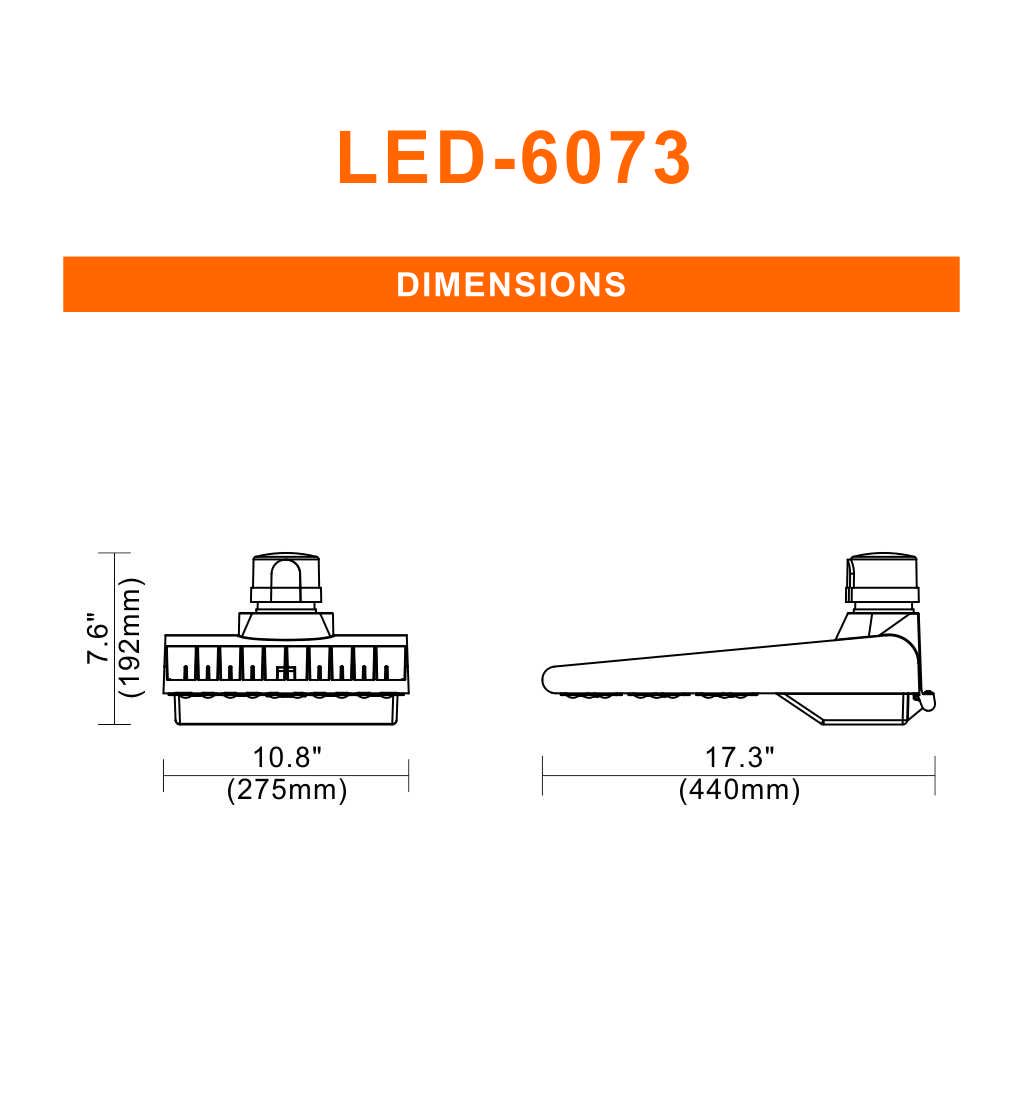

    Dimensions (Inches) 17.3"x 10.8" x 7.6"

    Build Your Order
    Model
    Number
    System
    Wattage
    Voltage CCT Housing
    Finish
    Mounting Accessories
    LED-6073-L192
    LED-6073-L264

    222W
    308W

    120-277V   4000K
    5000K

    Bronze

    Trunnion
    Slip fitter
    Pole mount
    Lens: Type III, IV, V options options
    IOT Photocell capability
    Standard 4kV Surge
      *Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
    **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
       Actual production units may vary from the values reported here by up to +/-10%.
