LED-6100

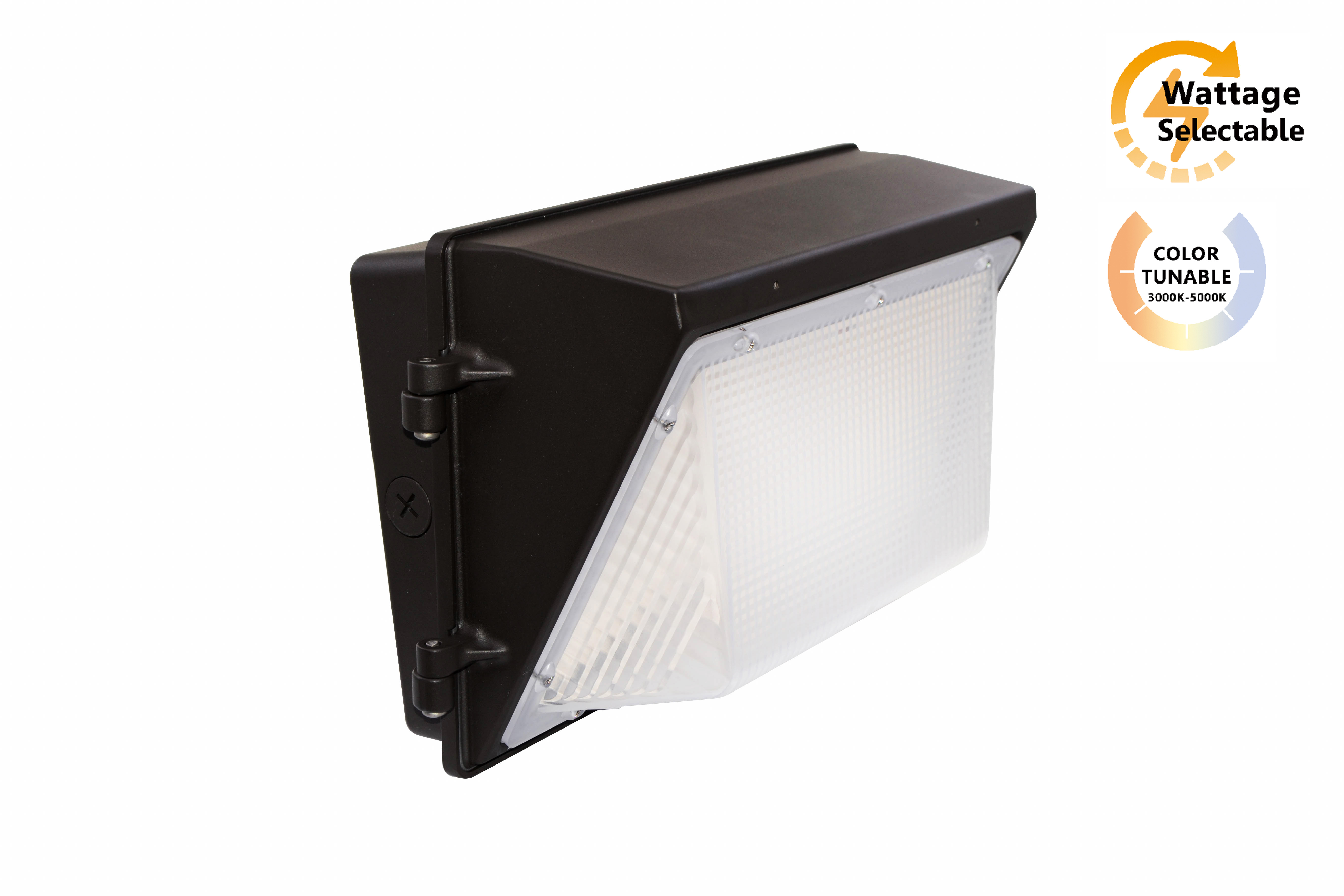

Utilizing the latest generation of LED chips, and a patented smart controller, this uniquely designed wall pack not only delivers a similar light output of a 150/200 W metal halide, but it also has multiple wattage and CCT to choose from based on different environments.
Housing made of die-casting aluminum with reliable powder coating specifically for harsh outdoor environment.
It is attractive in appearance and performance.

-UL and CUL listed for wet locations
-Die cast aluminum body
-UV stabilized powder coated finish
-High impact polycarbonate lens
-Optional 8W Emergency driver.
-Optional photocontrol
-Finish- Bronze. Color option with adder

Model Number	SML-6100
System Wattage	16/30/42/46W	21/41/61/71W	32/62/92/100W
Delivered Lumens (Lms.)	6422 lm**	9973 lm**	13952 lm**
Efficacy (Lm/W)	142 lm/w	141 lm/w	140 lm/w
Color Rendering Index (CRI)	70+
Color Temperature (CCT)	3000K/4000K/5000K
Input Voltage	120~277VAC
Dimensions (Inches)	14.5" x 9.33" x 6.65" inches
Weight (kg / lb)	3.673 kg / 8.08 lbs

Build Your Order

Model Number	System Wattage	Electrical	Voltage	CCT	Housing Finish	Mounting	Optional Accessories
SML-6100	46W 71W 100W	N/A	120-277VAC	3000K 4000K 5000K CUSTOM**	Bronze CUSTOM**	Surface Mount	Photocell Emergency driver

**Optional with adder
*Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
**Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
Actual production units may vary from the values reported here by up to +/-10%.
