LED-4630

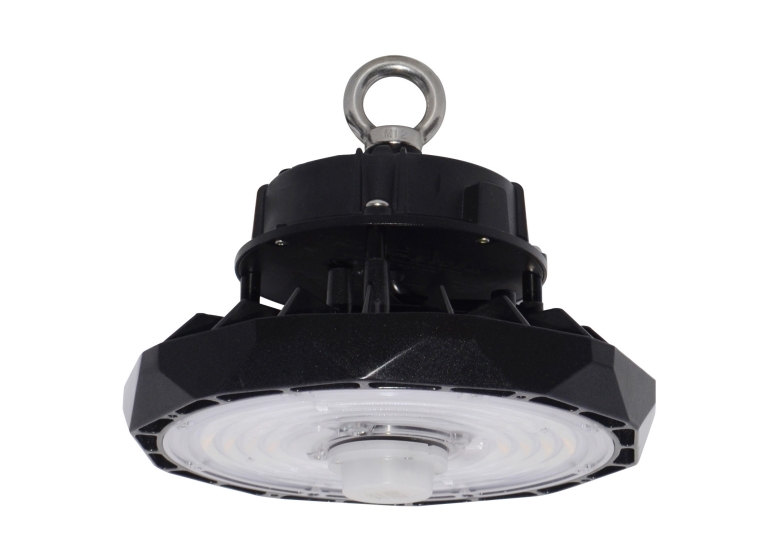

  • A unique feature for the fixture is the quick disconnected cable, it can quickly seperate the driver from the LED module for easy maintenance. The unit has built-in heat sink and comes with a hook made of die-cast aluminum for a strong and easy installation.

    -UL and CUL listed for damp locations.

    Housing:
    -Superior heavy duty die cast aluminum construction.

    Options:
    -Acrylic reflector. AL reflector.
    -16" Flat glass, drop lens, Conical drop lens.
    -6KV surge
    -0-10v Dimming
    -Optional 347V with adder.
  •  Download Datasheet
    Model Number LED-4630 (122W) LED-4630 (155W)
    System Wattage 122W 155W
    Delivered Lumens (Lms.) 16566 lm** 21242 lm**
    Efficacy (Lm/W) 136lm/W 137 lm/W
    Color Rendering Index (CRI) 80+
    Dist. Type  Type V
    Color Temperature (CCT) 4000K / 5000K
    Input Voltage 120-277V,     347-480V
    Dimensions (Inches) 9.67" * 9.67" * 7.52" inches


    Build Your Order
    Model
    Number
    System
    Wattage
    Voltage CCT Optional Accessories Housing
    Finish
    Mounting

    LED-4630

    122W 120-277V
    347-480V
    4000K
    5000K
    CUSTOM**
    16" Flat Glass and Clamp Band
    16" Drop lens with clamp band
    16" Conical Drop lens with clamp band

    Aluminum Reflector white
    Aluminum Reflector gloss
    Acrylic Reflector Clear
    ​Acrylic Reflector Matte
    16" wire guard
    Microwave occupancy sensor
    30W Emergency driver
    WHITE
    BLACK**
    CUSTOM**
    die-cast Hook
    155W
    **Optional with adder
      *Different LED Kelvin temperature available with 7-8 week lead time. Please call for quote.
    **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
       Actual production units may vary from the values reported here by up to +/-10%.
