LED-RL

•
•
•
•
•

•
•
•
•
•

LED-RL
OFFICE LIGHTING

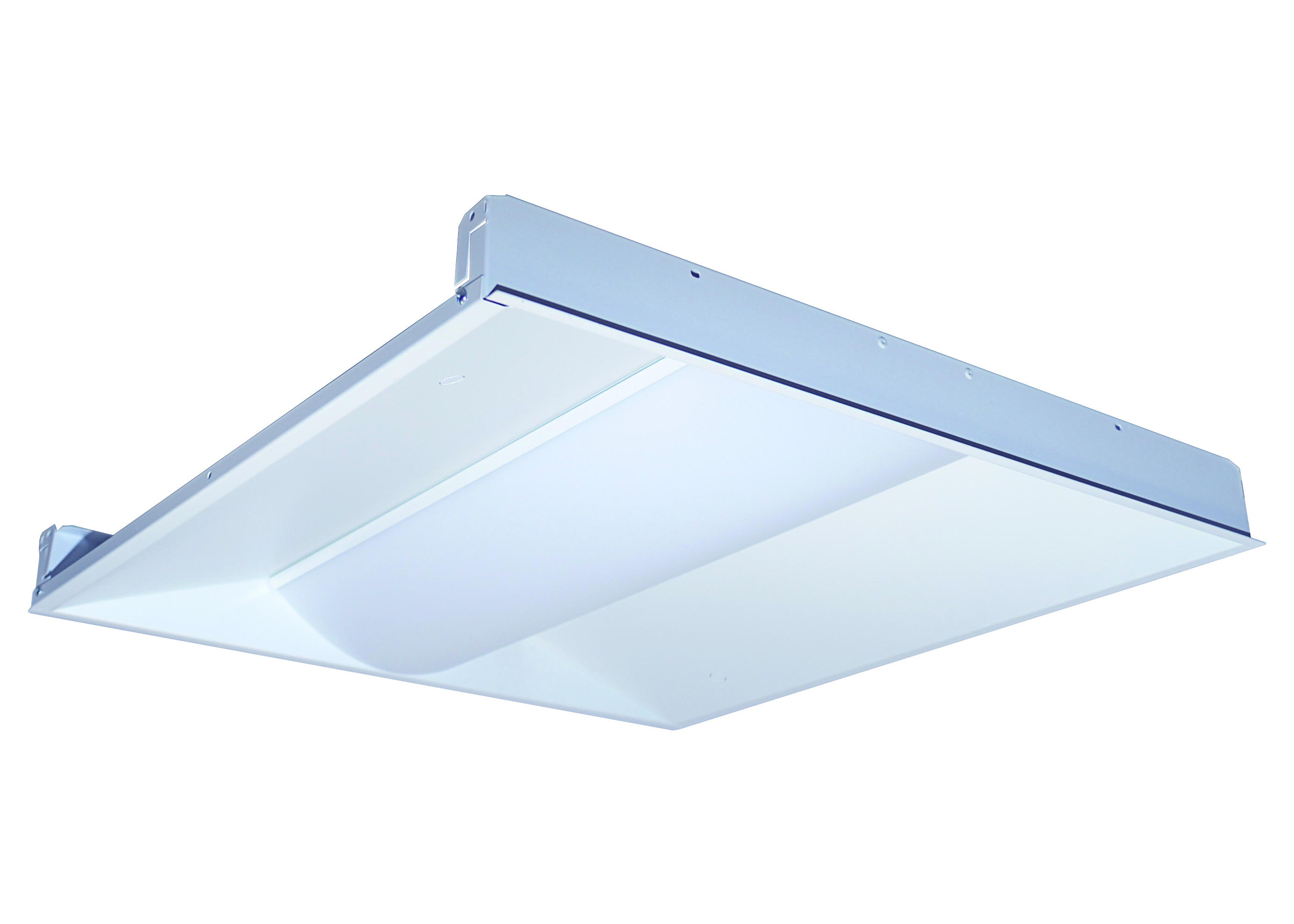

With its slim design, this New Troffers fom Grandlite seamlessly blends flat high quality housing and precision optics to produce a sleek,
subtle aesthetic that meets most office ceiling application needs, and with its built-in J-box design, this fixture is very installation friendly.
Ideal for office spaces, supermarkets, and meeting rooms.

• OFFICE LIGHTING


  FEATURES:
  -UL and CUL listed.
  -Housing made of high quality steel with high relectance paint, providing high lumen output.
  -Ambient Temperature:  suitable for use in -40^ﾟC to + 50^ﾟC.
  -Efficacy:  Up to 130 lm/W.
  -CCT:  3000K / 3500K / 4000K / 5000K.
  -CRI:   80CRI.
  -Optics:  Precision and high reflectance lens producing superior uniformly.

  Electrical Features:
  -Voltage:  120-277V standard, Class 2 constant current Drivers with 90% power factor, <20% THD. Driver efficiency (>90% standard); 50/60Hz;
  -2KV Surge prtector per ANSI/IEEE C62.412;
  -Dimming 0-10V driver Standard.
  -Occupancy sensor (PIR) optional.

  FINISHES:
  -Polyester powder white finish, Multi-stage process produces 3mil thickness for superior corrosion and maximum environment durability.
  -Built-in L tabs.
  -Slim profile design ensures installation for almost every application.
  -Easy access J-Box provides friendly and fast installation. The contractor can do the wiring in the J-Box.
  -Emergency ballast optional.
  -87% Efficient High efficiency lens provides wide coverage and uniformity for your application.
  -High Power and Efficient LED, making the fixture DLC Premium.
  -Optional occupancy sensor for energy saving and control.



  Model Number	LED-RL-S14 (1*4)		LED-RL-S22 (2*2)		LED-RL-S24 (2*4)			LED-RL-D22 (2*2)	LED-RL-D24 (2*4)
  System Wattage	32	38	24	32	37	42	59	31	42	72
  Delivered Lumens (Lms.)	4082	4808	3030	4082	4890	5458	7646	4651	6212	9943
  Efficacy (Lm/W)	127	127	127	127	132	131	129	146	152	140
  Dist. Type	Type V
  Color Rendering Index (CRI)	80+
  Color Temperature (CCT)	3000K / 3500K/ 4000K / 5000K
  Input Voltage	120~277V
  Dimensions (Inches)	48" * 11.8" * 2.48"		24.3" * 23.6" * 2.48"		48" * 23.6" * 2.48"			23.6" * 23.6" * 2.5"	47.7" * 23.6" * 2.5"



  Build Your Order

  Model Number	System Wattage	Voltage	CCT	Housing Finish	Mounting	Accessories
  LED-RL-S14 LED-RL-S-22 LED-RL-S24 LED-RL-D22 LED-RL-D24	32W/38W 24W/32W 37W/42W/59W 31W 42W/72W	120-277V	3000K 3500K 4000K 5000K • Custom	WHITE • Custom	Chain or Pendant	Dimmable Driver 0-10V standard Standard 2kV Surge protector Emergency Ballast optional Optional occupancy sensor  for energy saving and control

  **Optional with adder
    *Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
  **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
     Actual production units may vary from the values reported here by up to +/-10%.
