Grandlite International Corp

SML-303N

SML-303N
LED SURFACE MOUNT LIGHT

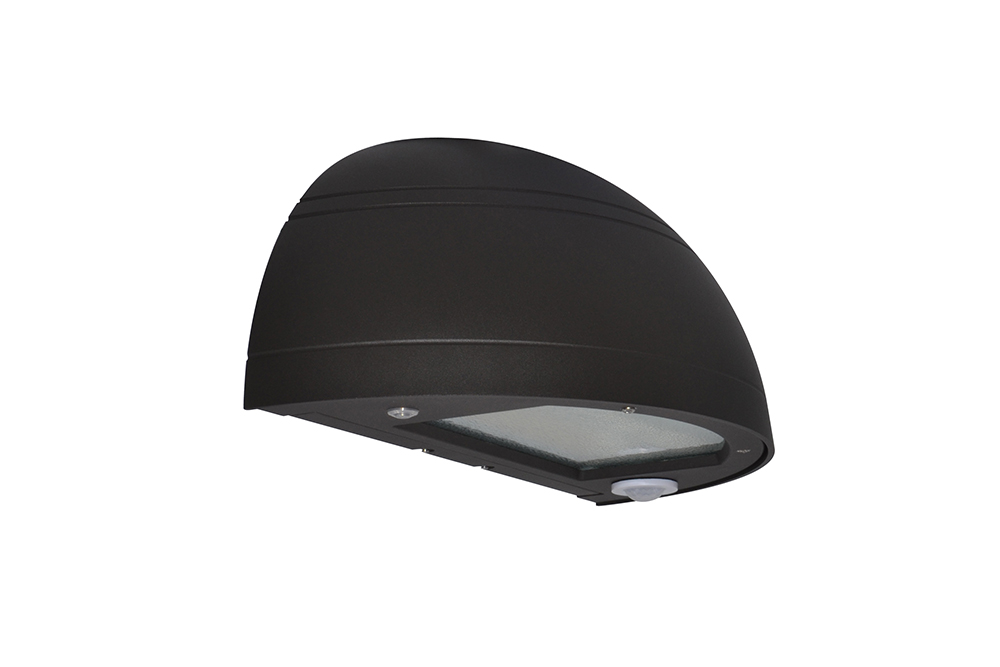

This trapezoid full cut-off wall pack is elegant as it is functional.
With high performance LEDs and long lasting driver, this fixture provides effective lighting all around.
It can be used around factories, restaurants, shopping centers etc.


  • This trapezoid full cut-off wall pack is elegant as it is functional.
    With high performance LEDs and long lasting driver, this fixture provides effective lighting all around.
    It can be used around factories, restaurants, shopping centers etc.

    -UL and CUL listed for wet locations
    -Die cast aluminum body
    -New generation LED
    -UV stabilized powder coated finish
    -Finish- Bronze.  color option with adder



    Model Number SML-303N
    System Wattage          30W                 50W          15/30/50/72W
    Delivered Lumens (Lms.)  3811 6410 8621
    Efficacy (Lm/W)  131 125 120
    Reflector FT=Forward throw    WT=Wide throw
    Color Rendering Index (CRI) 70+
    Color Temperature (CCT) 3000K / 4000K / 5000K
    Input Voltage 120~277VAC
    Dimensions (Inches)  18.1" X 9.05" X 9.05"


    Build Your Order
    Model Number System Wattage Voltage CCT Housing Finish Option
    SML-303N 30W
    50W
    15/30/50/72W
    120-277VAC 3000K
    4000K
    5000K
    • Custom
     BK=Bronze
    • Custom
    BLANK=No Sensor
    OC=Occupancy Sensor
    EM=Emergency Driver
    SS=10KV Surge
    ** Optional with adder.
    ** Different LED Kelvin temperature available with 7-8 week lead time. Please call for quote.
    ** Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
        Actual production units may vary from the values reported here by up to +/-10%.
