GRPL-5540/5541 Selectable
GRPL-5540/5541 Selectable

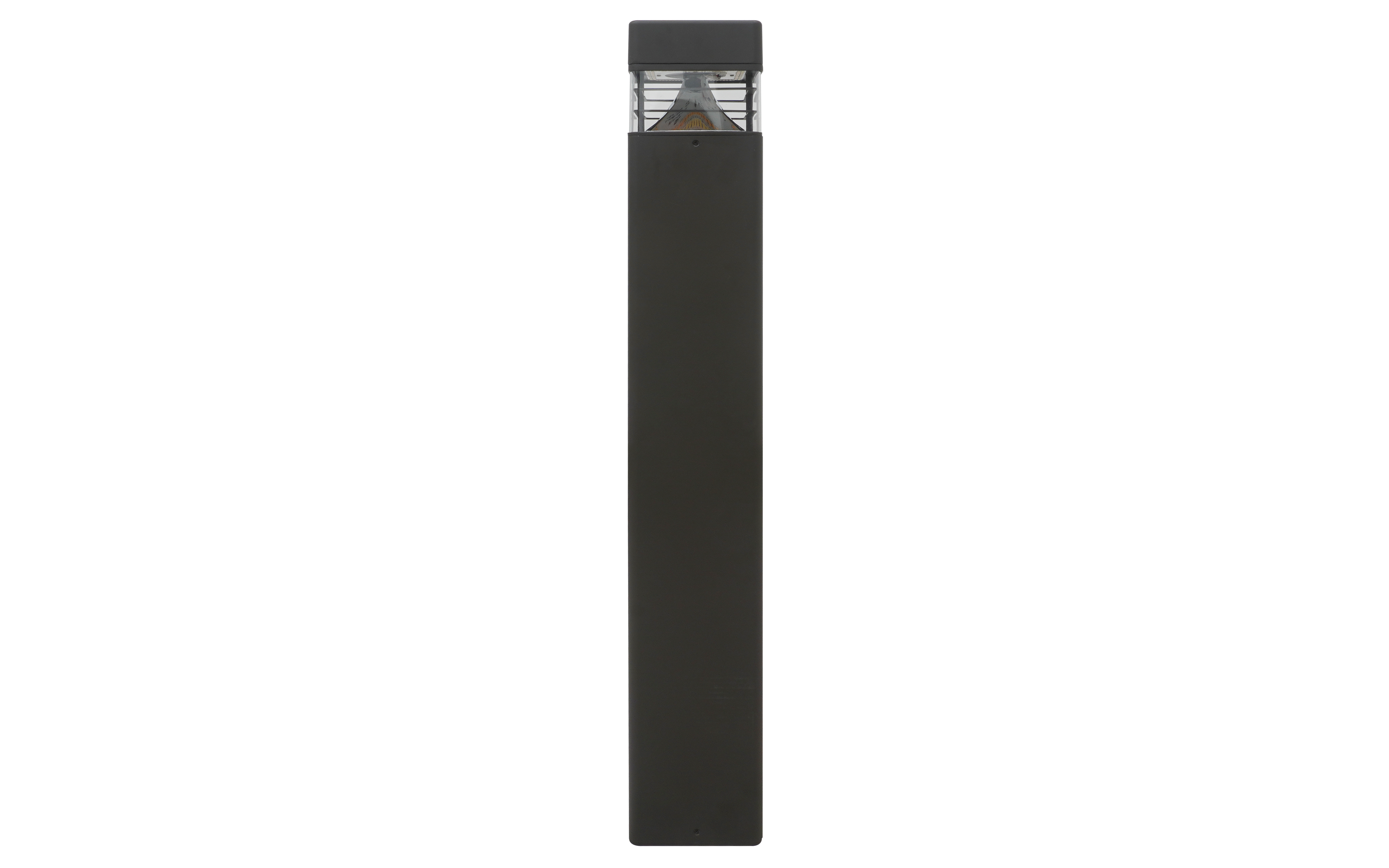

LED Bollard
This attractive and newly redesigned heavy-duty bollard features a full proof aluminum constructed housing. It provides corrosion and vandal resistance that is not only ideal for lighitng pedestrial walkways, but also for accenting the exterior ground of office and apartment buildings, hotels and parks. A solid fundation withands the element and driver even in the worst weather conditions. The upgraded color tuning switch allows easy access to a range of CCTs based on different environments.
LED Bollard
This attractive and newly redesigned heavy-duty bollard features a full proof aluminum constructed housing. It provides corrosion and vandal resistance that is not only ideal for lighitng pedestrial walkways, but also for accenting the exterior ground of office and apartment buildings, hotels and parks. A solid fundation withands the element and driver even in the worst weather conditions. The upgraded color tuning switch allows easy access to a range of CCTs based on different environments.
-
LED Bollard
-UL and CUL listed for wet locations.
-DLC Premium Listed.
-Consisting of an extruded aluminum alloy body.
-Standard 4kV surge.
-High-impact polycarbonate diffuser.
-Options: Anodized alumimum reflector.
-Finish: Bronze.
-Dist. Type: Type V.
Features:
-LED compartment is airtight to prevent fogging and condensation build up and keep water out.
-Aluminum reflector designed to reduce glare and produce an even distribution.
-Clear UV resistant polycarbonate lens allows for optimal light transmission and protects the light engine compartment from harsh environments.
-Driver is mounted under the LED compartment for easy replacement and to pretect from water, that may accumulate in the base of the bollard.
-Torx security screws secure the LED compartment to the base to deter vandalism.
-Versatile mounting plate allows for easy installation and replacement for any project or development.
-Extruded aluminum tube provides strength and durability as well as protects and conceals the component wiring.
-Terminal block provided on base bracket for easy installation on incoming supply wires.
-Quick disconnect located near the terminal block for simple connection to the LED driver.
-Working temperature: -40ﾟC ~ + 40ﾟC .
Model Number GRPL-5540 GRPL-5541 Nominal Wattage 10/20/30W Delivered Lumens (Lms. based on the highest lumen 5000K) 3771 lm 1901 lm Efficacy (Lm/W based on the highest lumen 5000K) 125 lm/W 63 lm/W Input Voltage 120-347V Dimensions (Inches) 5.74" * 5.74" * 42" inches Color Rendering Index (CRI) 80+ Color Temperature (CCT) 3000K/4000K/5000K Dist. Type TYPE V
Build Your OrderModel
NumberSystem
WattageVoltage CCT Housing
FinishMounting Accessories GRPL-5540GRPL-554110/20/30W 120-347V 3000K
4000K
5000K
• Selectable
BRONZE
• CustomVersatile mounting plate
allows for easy installation
and replacement for any project
or developmentStandard 4kV Surge protector
Anodized alumimum reflector
**Optional with adder
*Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
**Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
Actual production units may vary from the values reported here by up to +/-10%.
