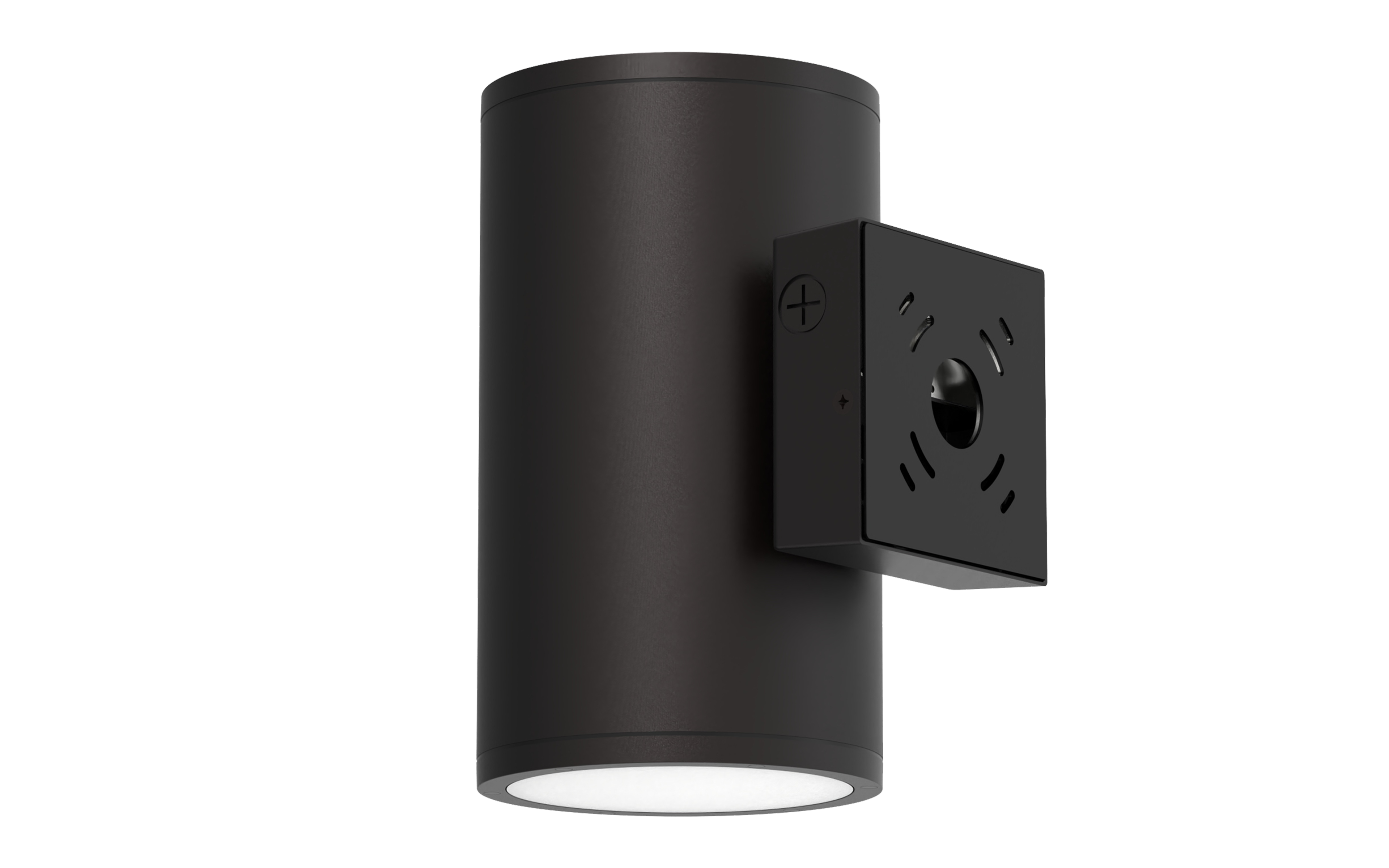

LED-8060/10120 Series

LED-8060/10120
CYLINDER
This architectural cylinder series combines elegance with functionality,  offering  a  versatile  lighting  solution  with  its wide range of settings. With various mounting options and multiple  color  temperature  (CCT)  choices,  these  fixtures provide exceptional flexibility to adapt to any environment. Equipped  with  high-performance  LEDs  and  a  durable, long-lasting driver, this series is built to meet the demands of many different applications, ensuring reliable performance and a  tailored  lighting experience for any space.
Spec. Download
  • Listing
    - UL and CUL listed.

    Housing:
    - Superior heavy duty die cast aluminum extrusion construction.

    Finish:
    - UV stabilized powder coated finish for outdoor
    - Available in Black, Grey, or White


    Model Number Nominal Watts**         Lumen**              Efficacy**             Angle
    LED-8060W 55/45/30W 8628 lm** 155 lm/w** 45° / 75°
    LED-10120W 105/95/75W 15877 lm** 160 lm/w**
    LED-8060C/P 55/45/30W 8342 lm** 150 lm/w**
    LED-10120C/P 105/95/75W 15351 lm** 155 lm/w**
    ** Lumen and Efficacy are based on highest wattage 4000K at 45° Angle

    Build Your Order
    Model
    Number    		 Nominal
    Watts**    		 Voltage CCT Angle Finish Option
    LED-8060X
    LED-10120X
    		 55W
    105W    		 120-277V
    3000K/4000K/5000K

    		 45°
    75°    		 WH = White
    BK = Black
    GY = Gray    		 2R = 2ft rigid stem
    4R = 4ft rigid stem
    EM = 4W Emergency Driver
    **Optional with adder
    **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
       Actual production units may vary from the values reported here by up to +/-10%.
  •  Download Datasheet
