LED-6010N

LED-6010N

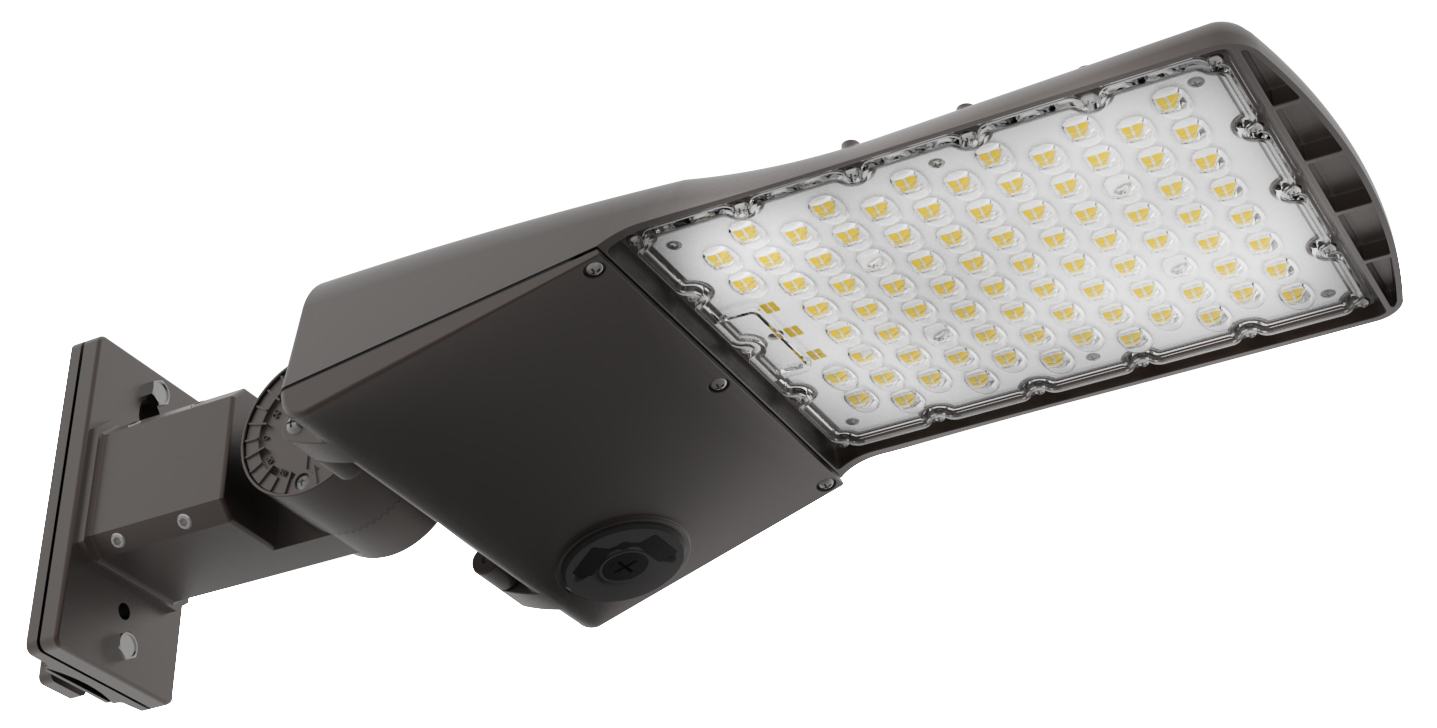

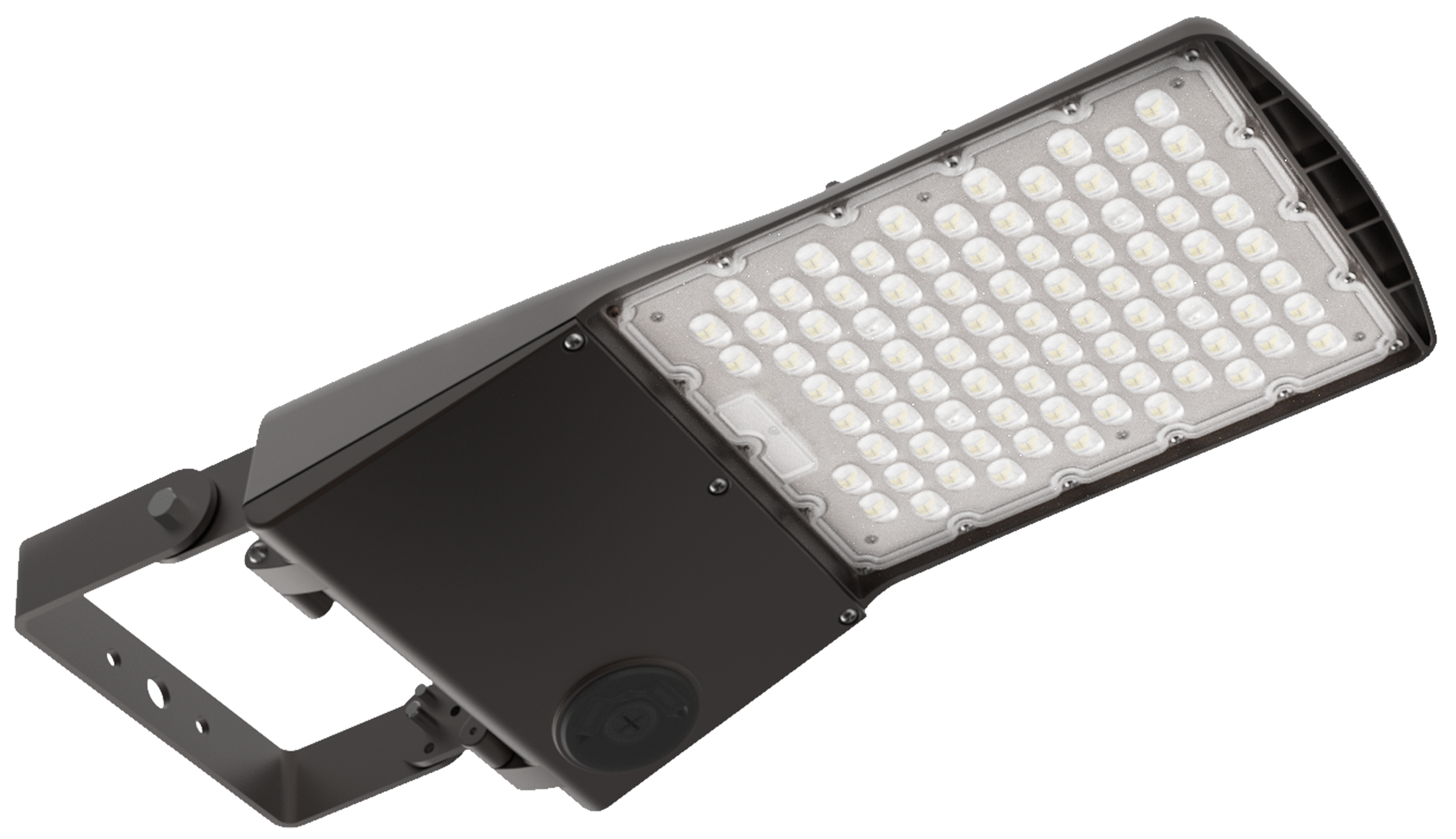

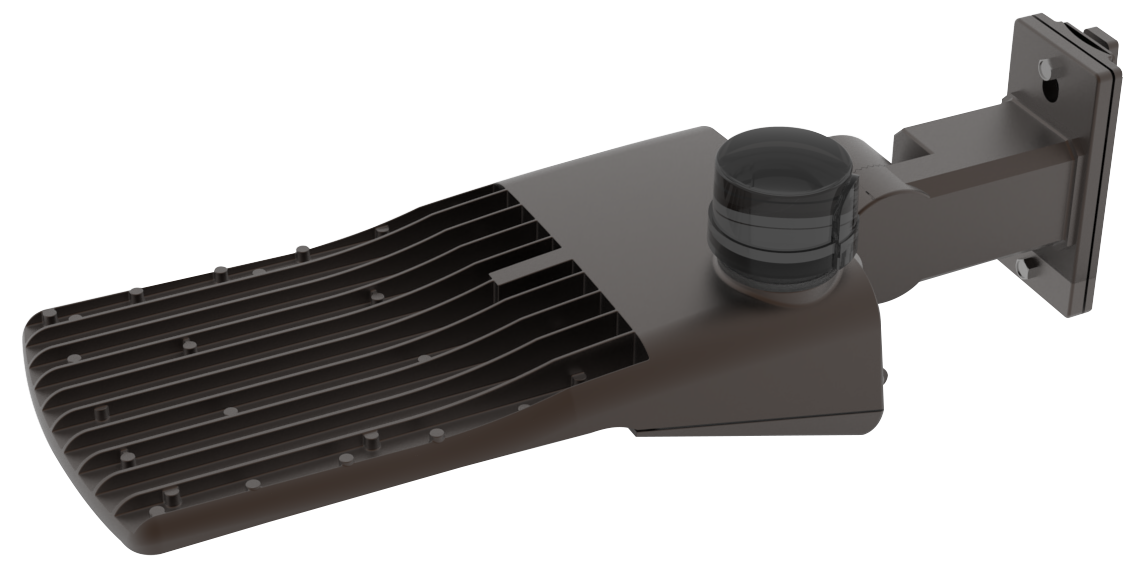

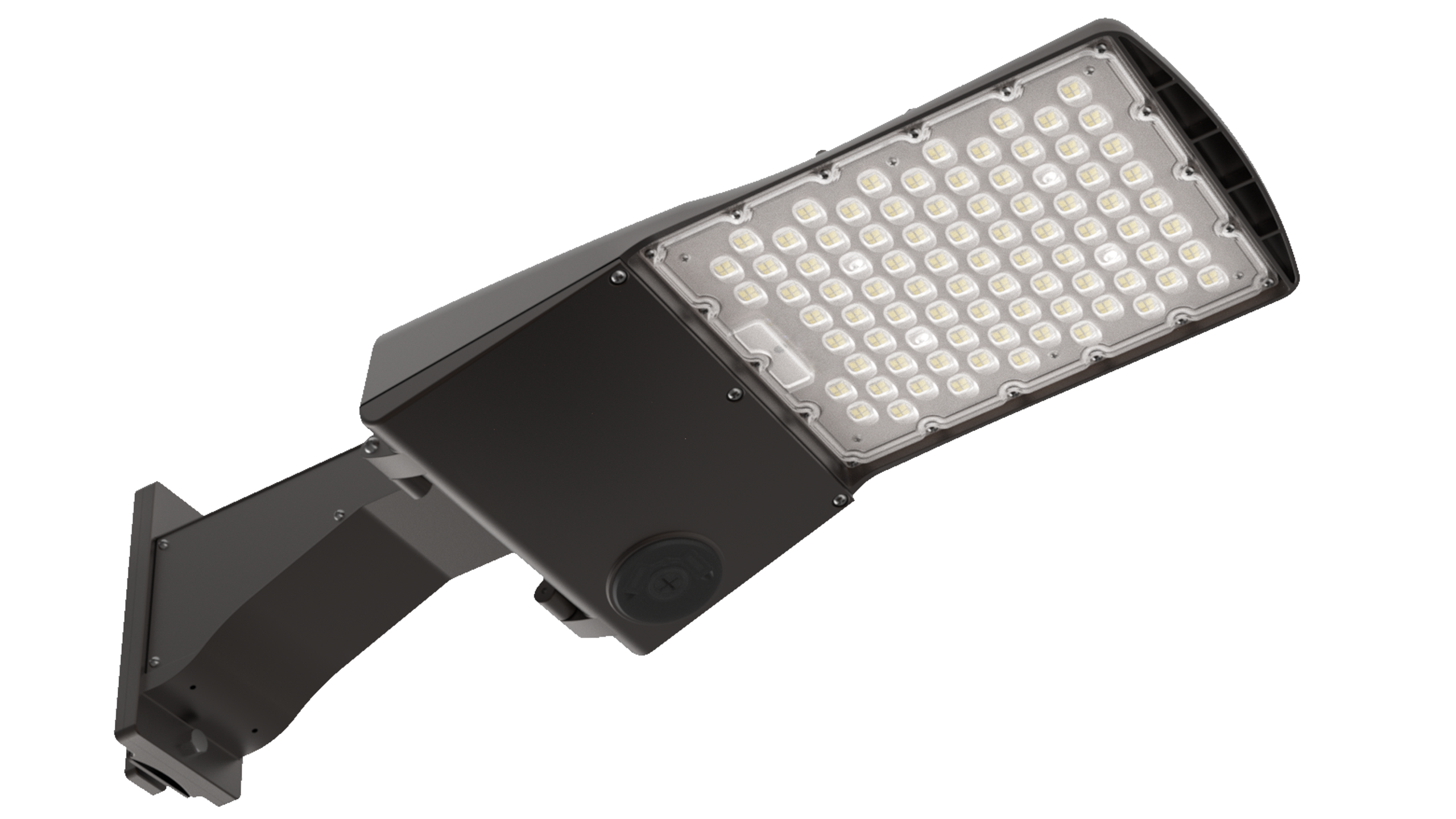

LED AREA LIGHT

This slick and modern luminaire has been designed to handle any environment. With a beautiful slimline design along with one of the highest lumen performances on the market, this versatile fixture can be used as an area light. LED-6015N is ready to conquer the lighting landscape with various mounting options, surge protection devices, IOT photocell capability, and the most technologically advanced LED on the market.


Spec. Download
  • LED AREA LIGHT

    LISTING
    - UL and CUL listed for wet locations
    HOUSING
    - One piece die-cast aluminum body with die-cast hinge panel for easy installation access
    LED
    - The most technologically advanced LED chips in the market
    FINISH
    - UV stabilized powder coated finish
    LENS
    - Optional Type III, Type IV,  Type V optics
    OPTIONS
    - Optional 347V or 480V with adder
    - Bi-level dimmable or photocontrol optional available with adder
    - Finish: bronze. Color option with adder
    - Optional House Side Shield


    Model Number LED-6015N
    Nominal Wattage 40/60/80W 100/125/150W
    Delivered Lumens (Lms.) 11609 lm** 20297 lm**
    Efficacy (Lm/W) 144 lm/W** 136 lm/W**
    Color Rendering Index (CRI) 70+
    Color Temperature (CCT) 3000K / 4000K / 5000K
    Input Voltage 120~277V / 277-480V
    Dimensions (Inches) 25.67" X 9.45" X 7.4"  (UM Mount)
    22.44" X 9.45" X 6.3" (TR Mount)
    26.26" X 9.45" X 8.3" (PM Mount)
    ** Lumen and Efficacy are based on the highest wattage 5000K Type III

    Build Your Order
    Model
    Number    		 System
    Wattage    		 Voltage CCT Housing
    Finish    		 Mounting Accessories

       LED-6010N
         		 80W
    150W    		 120-277V
     277-480V    		 3000K
    4000K
    5000K
    • Custom    		 Bronze
    • Custom    		 PM = Pole Mount
    UM = Universal Mount
    TR = Trunnion    		 OS = Occupancy Sensor
    PE = Photocontrol
    3R = 3-pin Receptacle
    5R = 5-pin Receptacle
    7R =  7-pin Receptacle
    HSS = House Side Shield
    *Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
       Actual production units may vary from the values reported here by up to +/-10%.
