Grandlite International Corp

LED-3777/3778

•
•
•
•
•

•
•
•
•
•

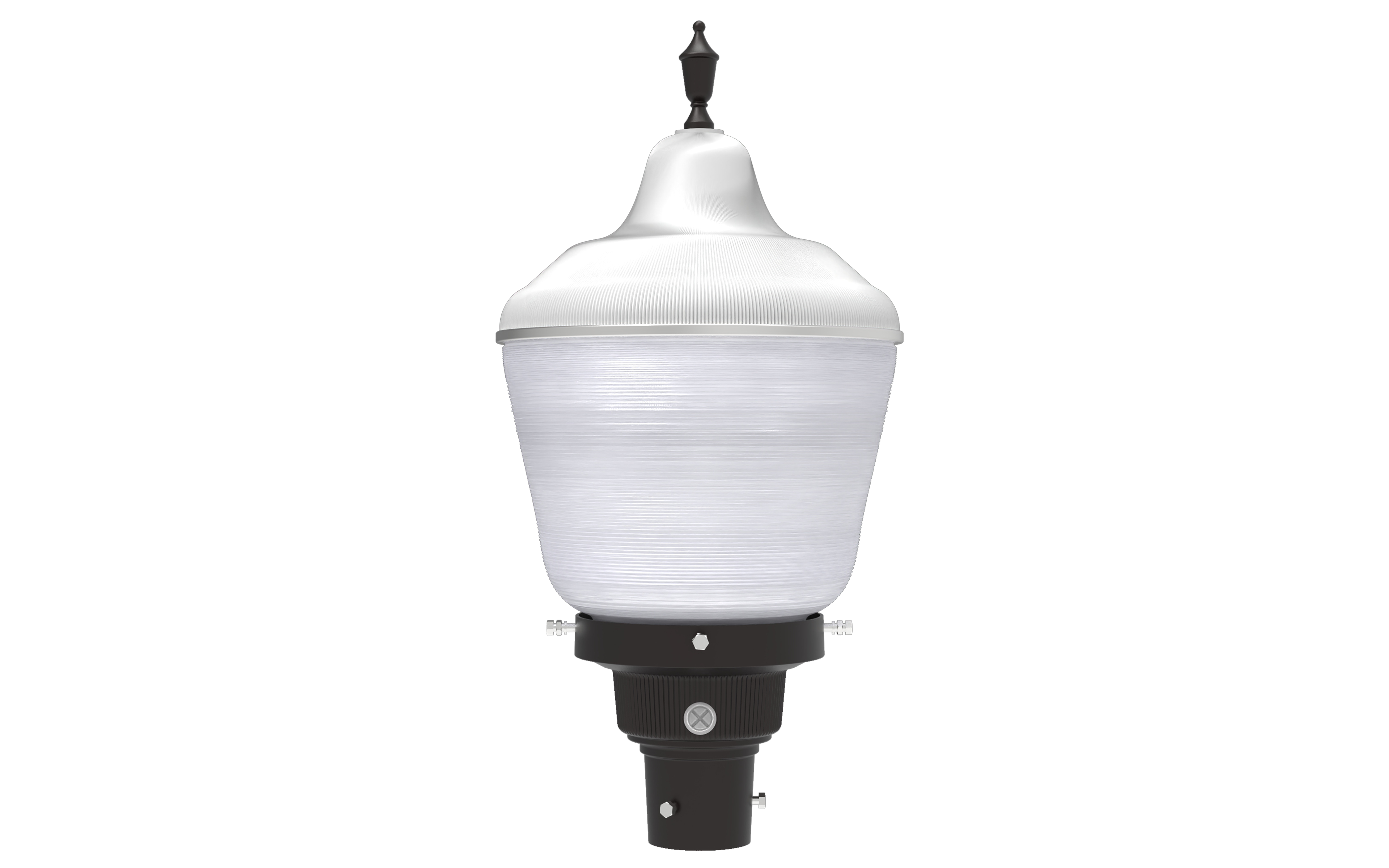

LED-3777/3778 Selectable
LED POST TOP LIGHT

This slick and modern luminaire has been designed to handle any environment. The upgraded tuning switch allows for easy access to a range of CCTs and wattages.




• FEATURES
  LISTING
  - UL and CUL listed for wet locations
  HOUSING
  - Corrosion resistant heavy duty-cast aluminum construction.
  ​LENS
  - UV acrylic optic assembly (polycarbonate optional)
  FINISH
  - UV stablized powder coated finish
  OPTIONS
  - Optional photocell
  - Finish: bronze. Color options with adder

  PERFORMANCE DATA

  Model Number	LED-3777 Selectable	LED-3778 Selectable
  Nominal Watts	70/50/30W
  Delivered Lumens* (Lms. based on the highest wattage 4000K)	6840 lm*	9991 lm*
  Efficacy* (Lm/W based on the highest wattage 4000K)	98.7 lm/w*	142.93 lm/w*
  Color Rendering Index (CRI)	80+
  Color Temperature (CCT)	3000K/ 4000K / 5000K
  Input Voltage	120~277V
  Dimensions (Inches)	30.4" X14.5" X 3.7"	29.7" X 14.7" X 3.7"


  Build Your Order

  Model Number	System Wattage	Voltage	CCT	Options	Housing Finish
  LED-3777 LED-3778	70W	120-277V	3000K 4000K 5000K	PC = Photocontrol	Bronze CUSTOM**

  **Optional with adder
  **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
     Actual production units may vary from the values reported here by up to +/-10%.


• Download Datasheet
