Grandlite International Corp

SML-30XN Selectable

•
•
•
•
•
•
•
•
•

•
•
•
•
•
•
•
•
•

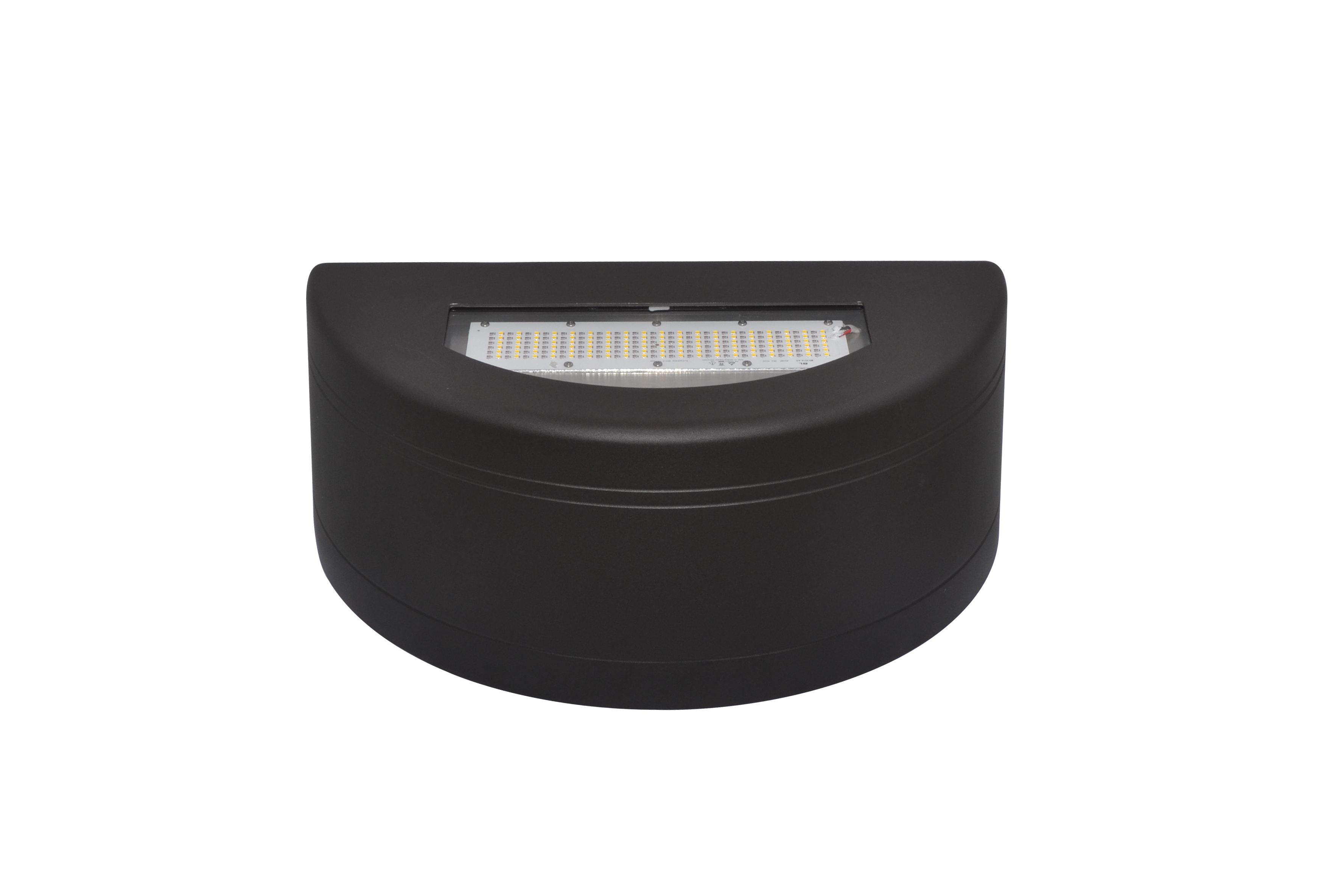

SML-30XN
LED SURFACE MOUNT LIGHT

This full cut-off wall pack is elegant as it is functional. With high performance LEDs and long lasting driver, this fixture provides effective lighting all around. It can be used around factories, restaurants and shopping centers, etc. The updated CCT and wattage selectable control allows for easy access for three different CCTs and wattages.





• -UL and CUL listed for wet locations
  -Die cast aluminum body
  -New generation LED
  -UV stabilized powder coated finish
  -Finish- Bronze.  color option with adder



  Model Number	SML-301N	SML-302N	SML-302N-U/D	SML-303N
  Nominal Wattage	25/45/65W	25/45/65W	25/45/65W	25/45/65W
  Delivered Lumens (Lms. based on highest wattage 5000K)	8183 lm	7993 lm	10258 lm	8003 lm
  Efficacy (Lm/W based on highest wattage 5000K)	125 lm/W	123 lm/W	157 lm/W	124 lm/W
  Reflector	FT=Forward throw    WT=Wide throw
  Color Rendering Index (CRI)	70+
  Color Temperature (CCT)	3000K / 4000K / 5000K
  Input Voltage	120~277VAC
  Finish	Bronze





  Build Your Order

  Model Number	System Wattage	Voltage	CCT	Housing Finish	Option
  SML-301N SML-302N SML-302N-U/D SML-303N	25/45/65W Selectable	120-277VAC	3000K 4000K 5000K Selectable	BZ=Bronze • Custom	BLANK=No Sensor PC=Photocell OC=Occupancy Sensor EM=Emergency Driver SS=10KV Surge

  ** Optional with adder.
  ** Different LED Kelvin temperature available with 7-8 week lead time. Please call for quote.
  ** Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
      Actual production units may vary from the values reported here by up to +/-10%.
