Grandlite International Corp

LED-2170S

•
•
•
•
•

•
•
•
•
•

LED-2170S Selectable

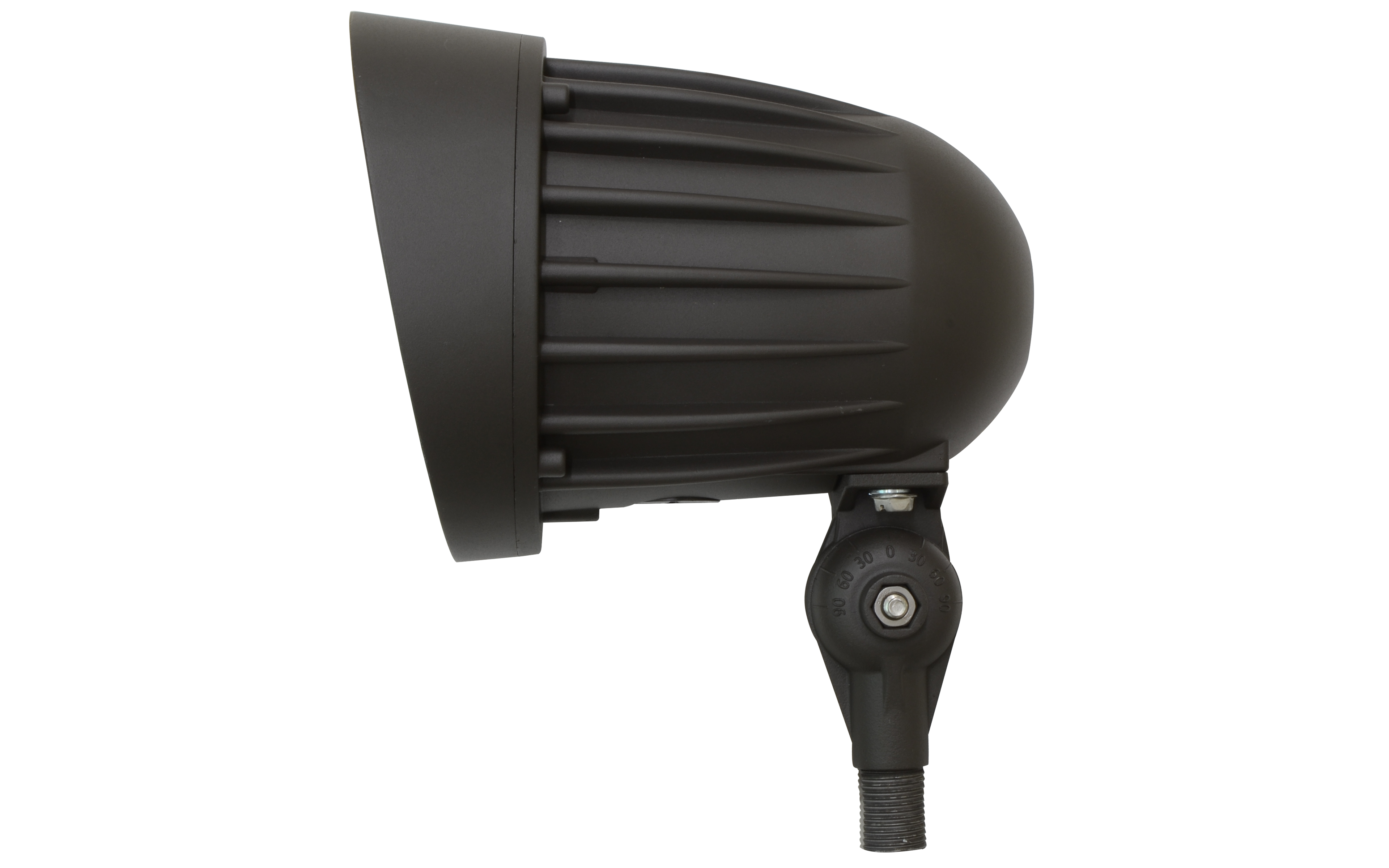

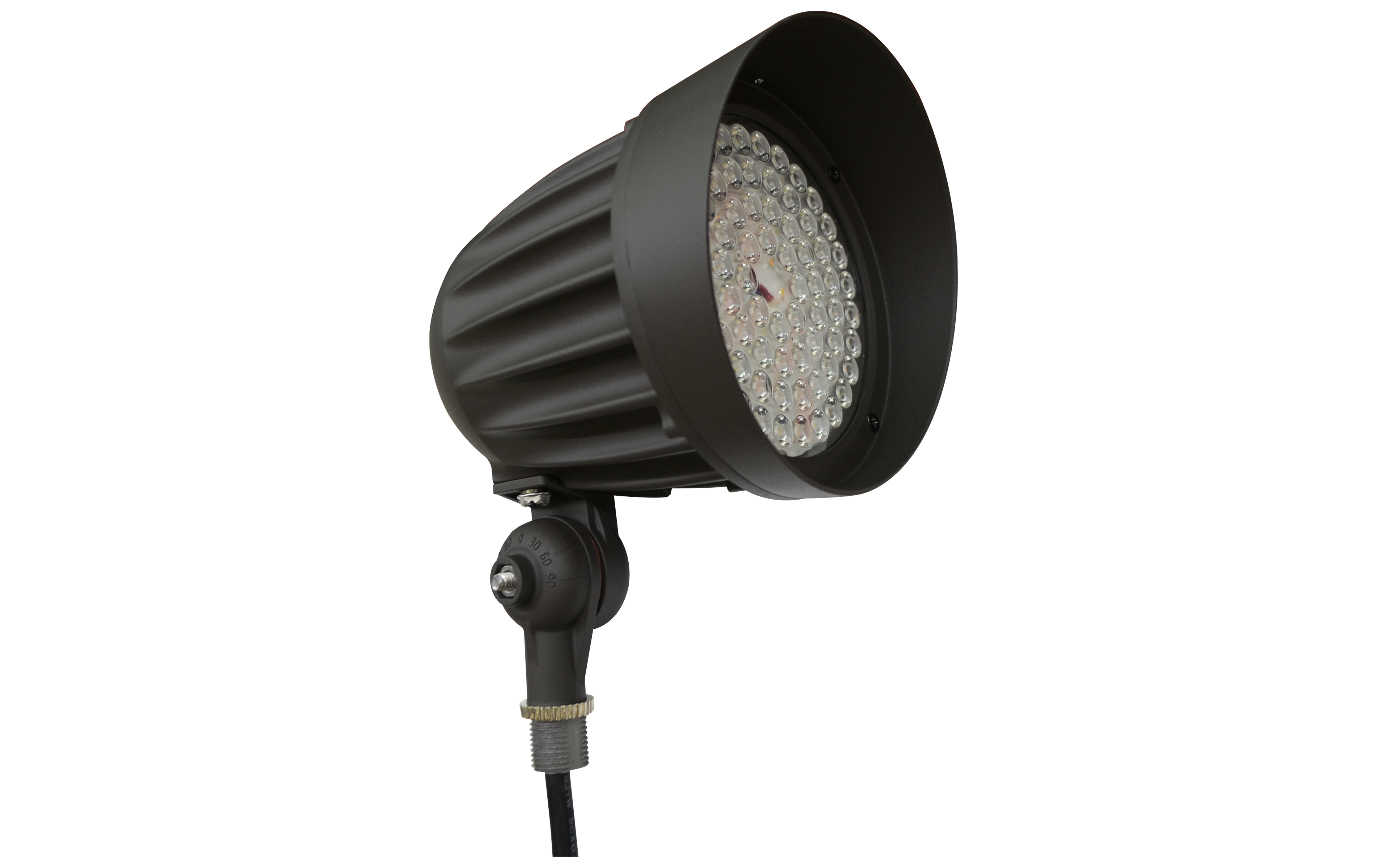

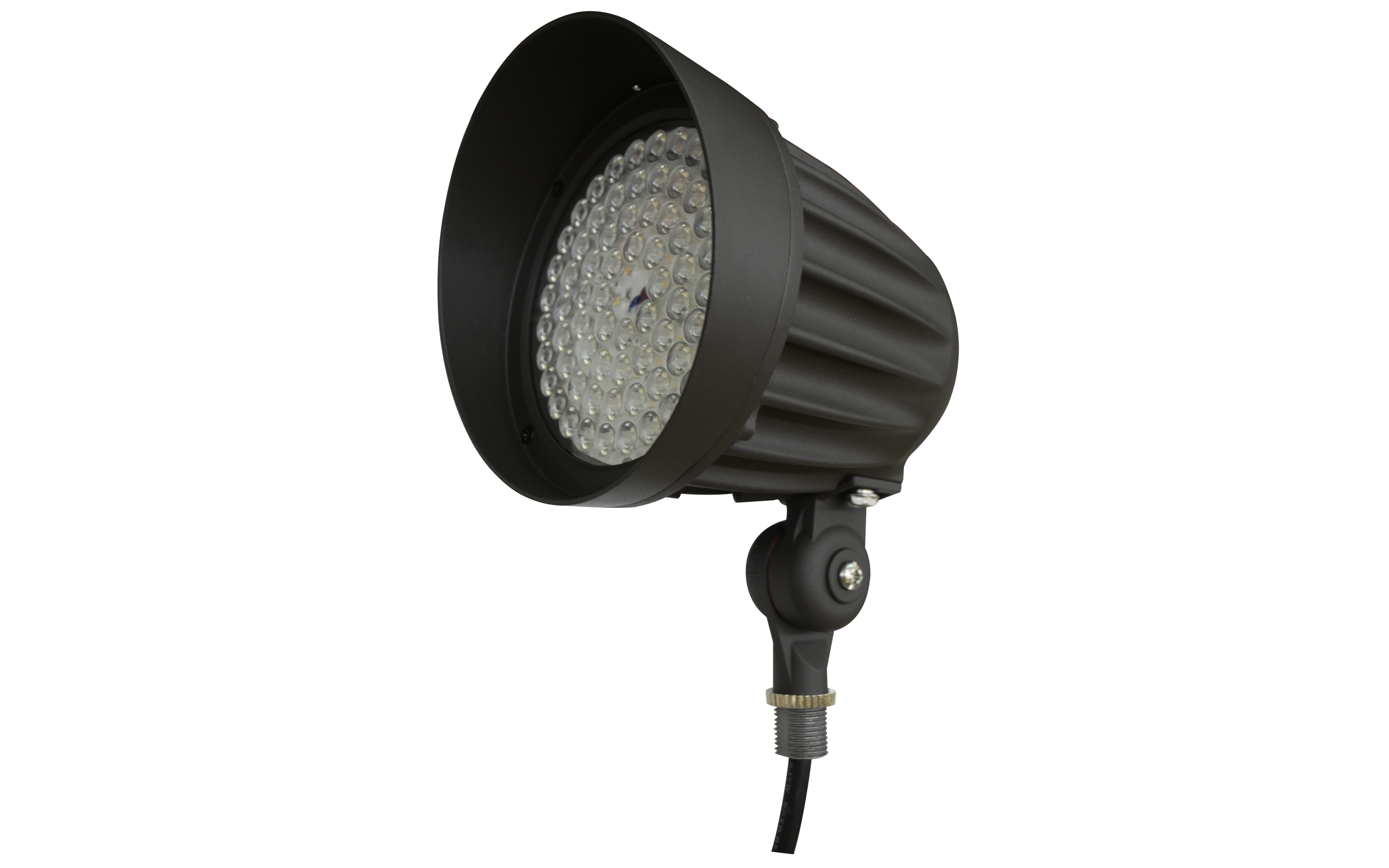

LED FLOOD LIGHT

This compact but powerful flood light is a true innovation practically and aesthetically. The upgraded tuning switch allows for easy access to a range of CCTs, beam angle, and wattages based on different environments. Utilizing performance optics andlong lasting driver, these landscape flood lights will last for years to come.






• LED FLOOD LIGHT

  - UL and CUL listed for wet locations
  - Solid construction die-cast aluminum housing
  - UV stabilized powder coated finish

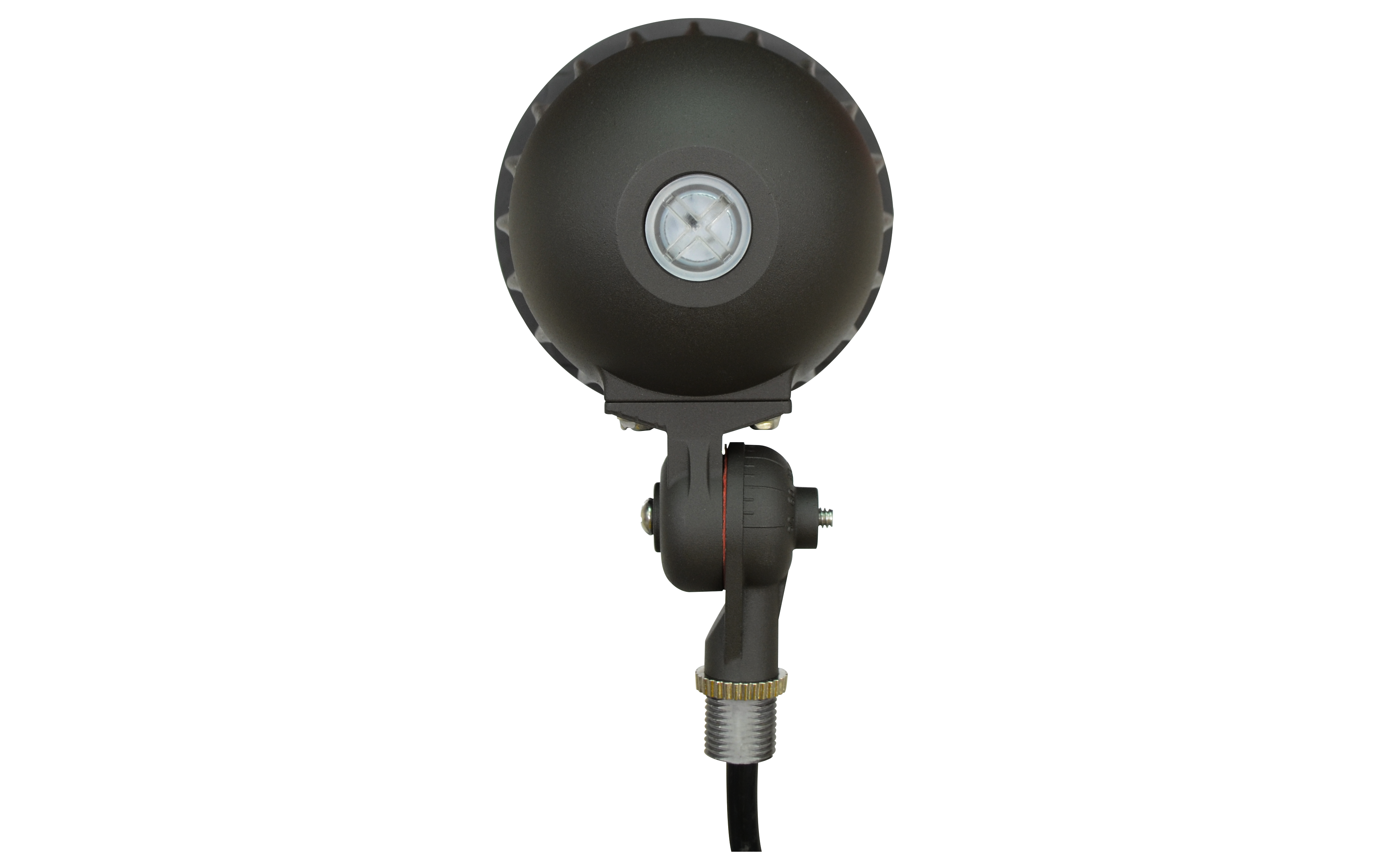

  - Optional photocell
  - Finish - Bronze. Color options with adder





  Model Number	LED-2170
  System Wattage	9W /16W/ 24W
  Delivered Lumens (Lms.)	3287 lm**
  Efficacy (Lm/W)	144.17 lm/w
  Color Rendering Index (CRI)	80+
  Color Temperature (CCT)	3000K/4000K/5000K
  Beam Angle	25° / 45° / 65°
  Input Voltage	120~277V
  Dimensions (Inches)	8.74" * 7.24" * 5.9"
  Operating Temp.	-40°C to 40°C



  Build Your Order

  Model Number	System Wattage	Distribution	Voltage	CCT	Housing Finish	option
  LED-2170	24W	Various optic lenses**	120-277V	3000K 4000K 5000K CUSTOM**	Bronze	PC=Photocontrol FAO=Wattage, Beam Angle, and CCT Smart Controller

  **Optional with adder
    *Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
  **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
     Actual production units may vary from the values reported here by up to +/-10%.
