Grandlite International Corp

SML-30XNL NEW Optic Selectable

•
•
•
•
•
•
•

•
•
•
•
•
•
•

SML-30XNL

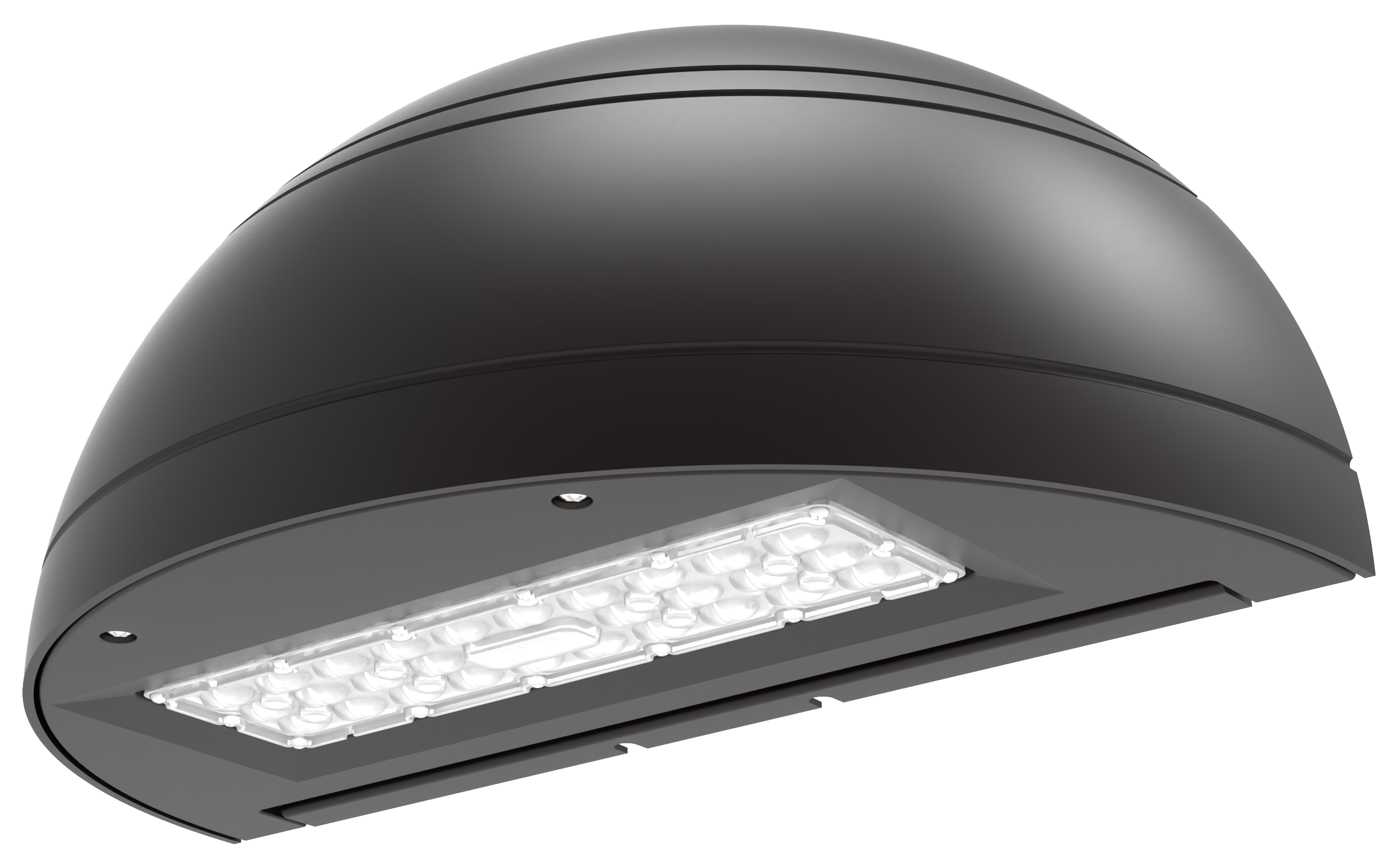

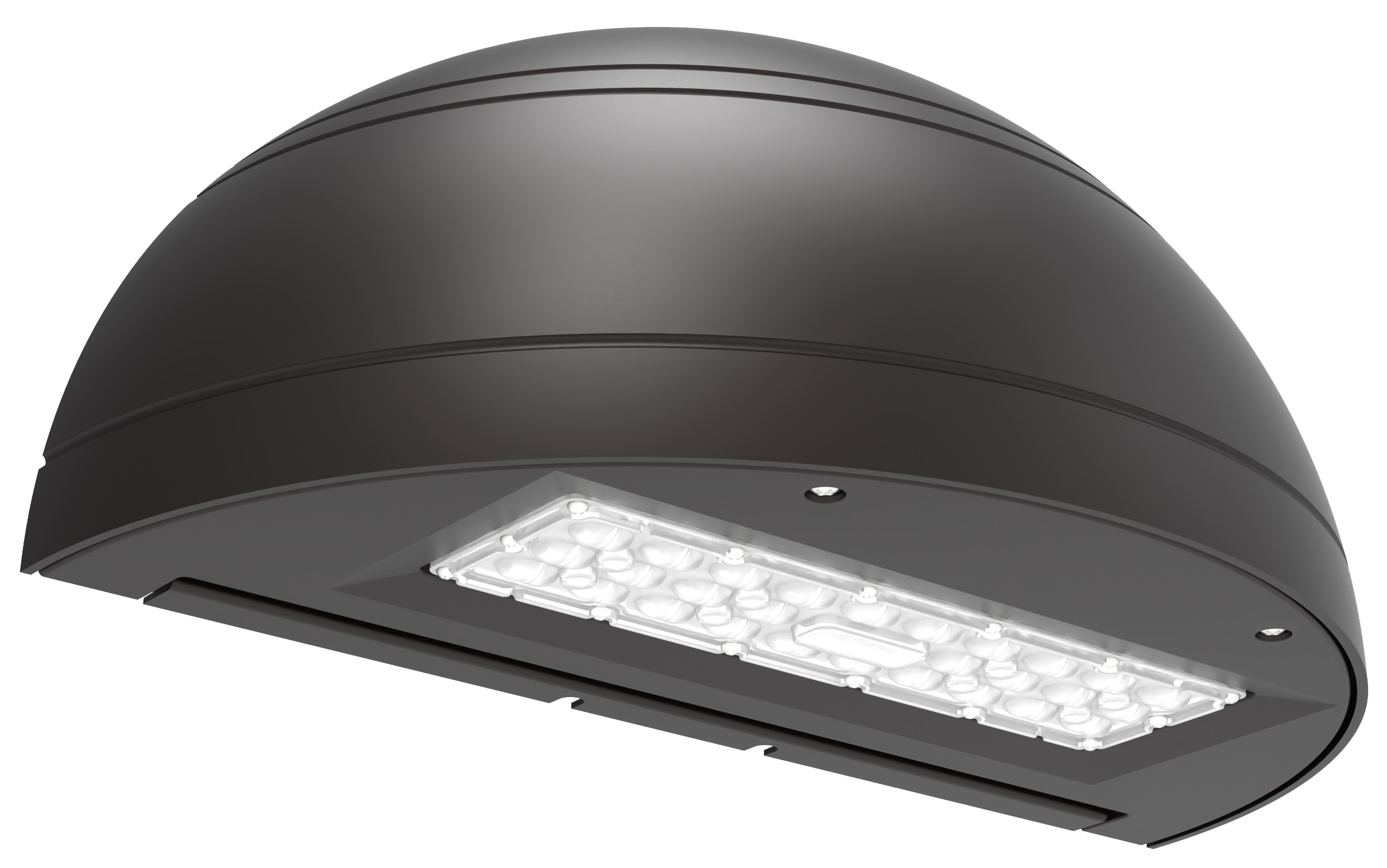

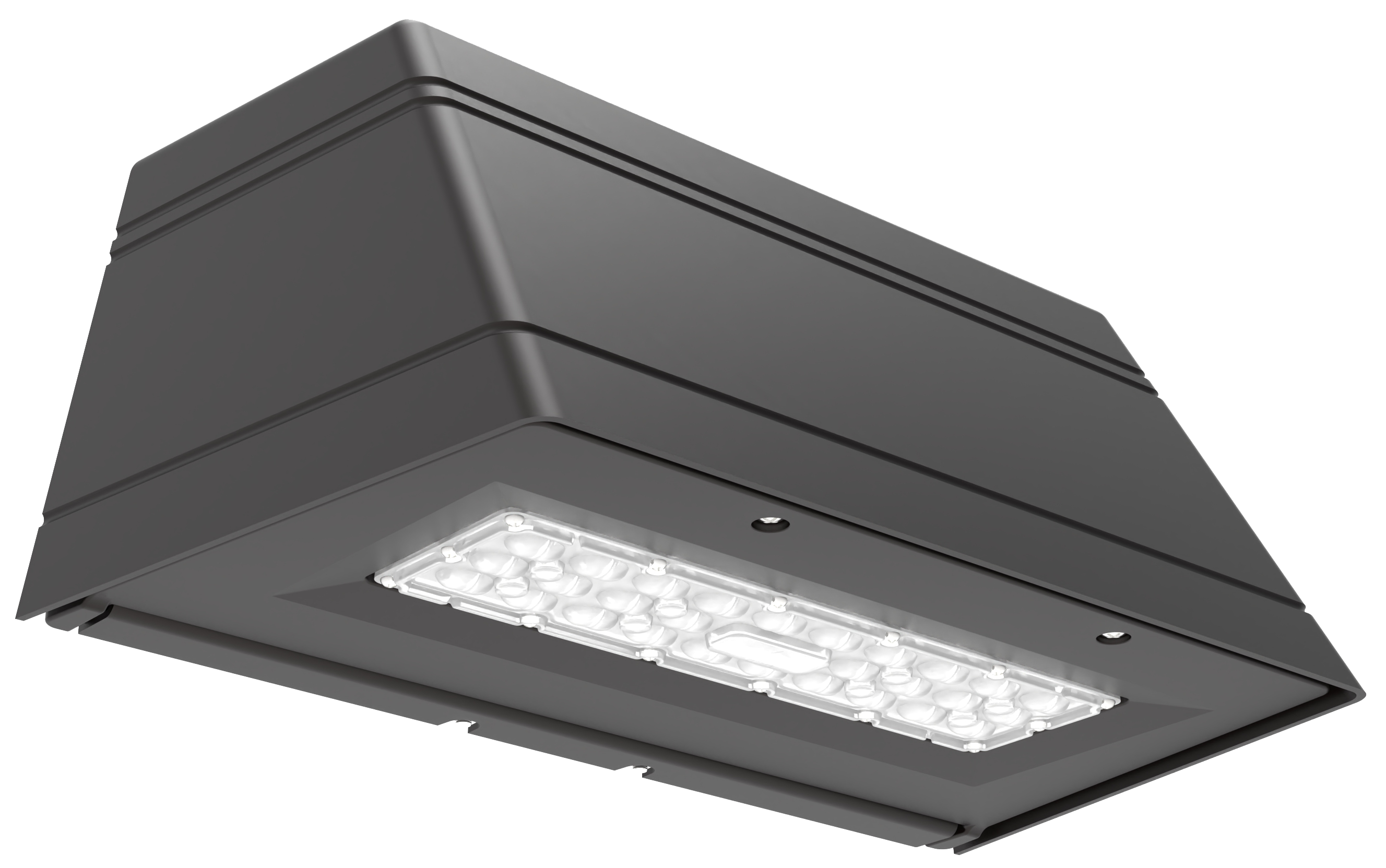

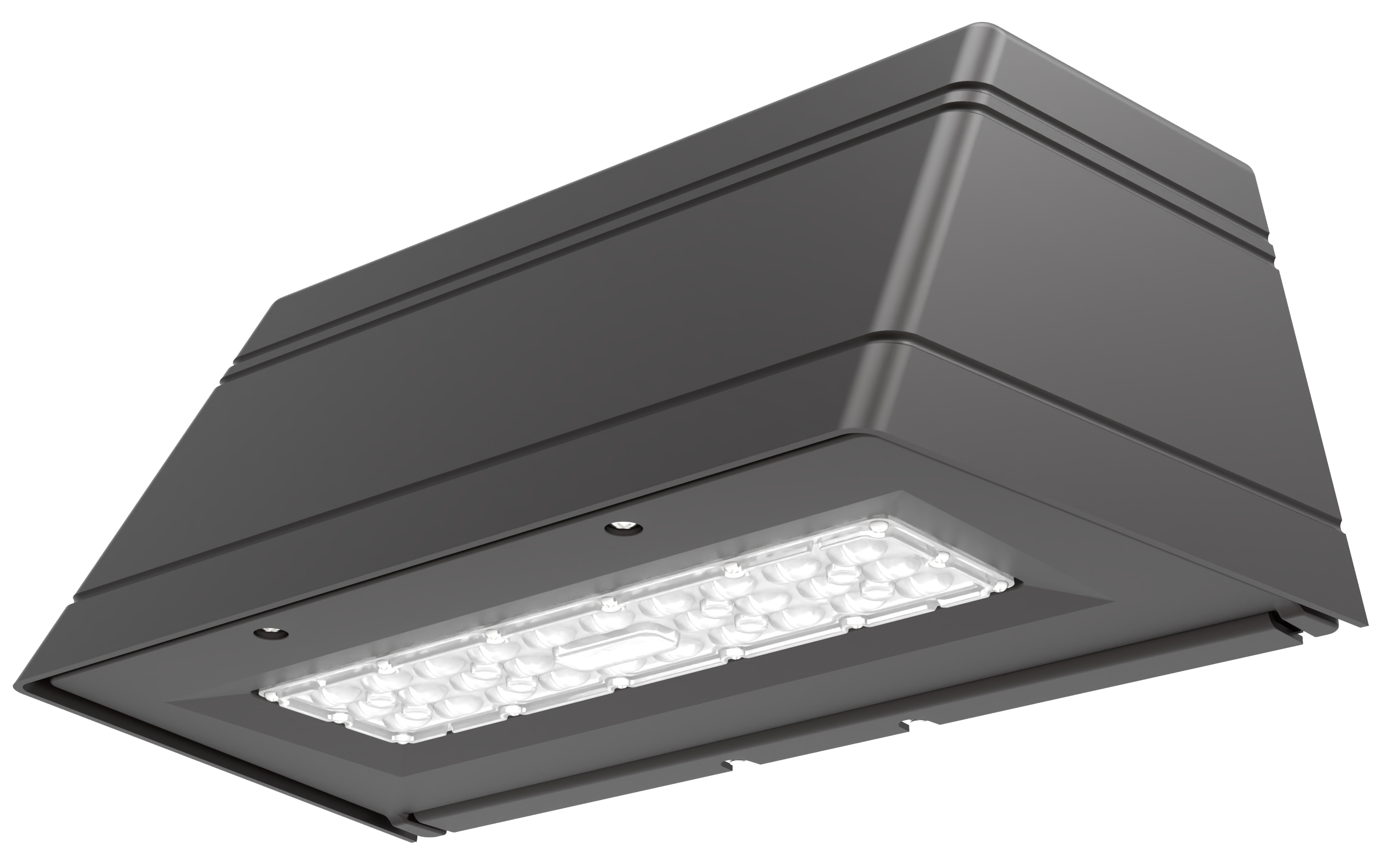

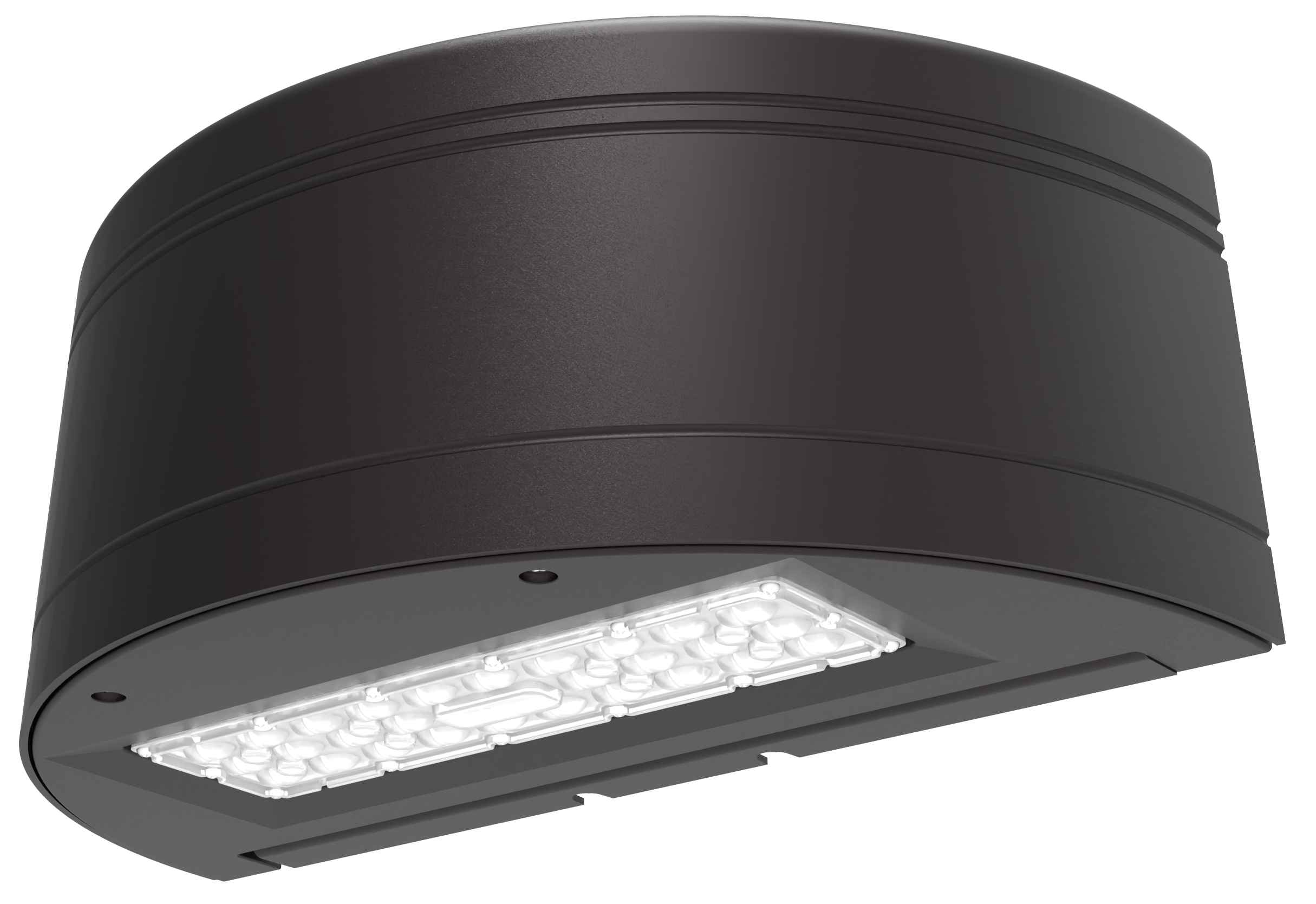

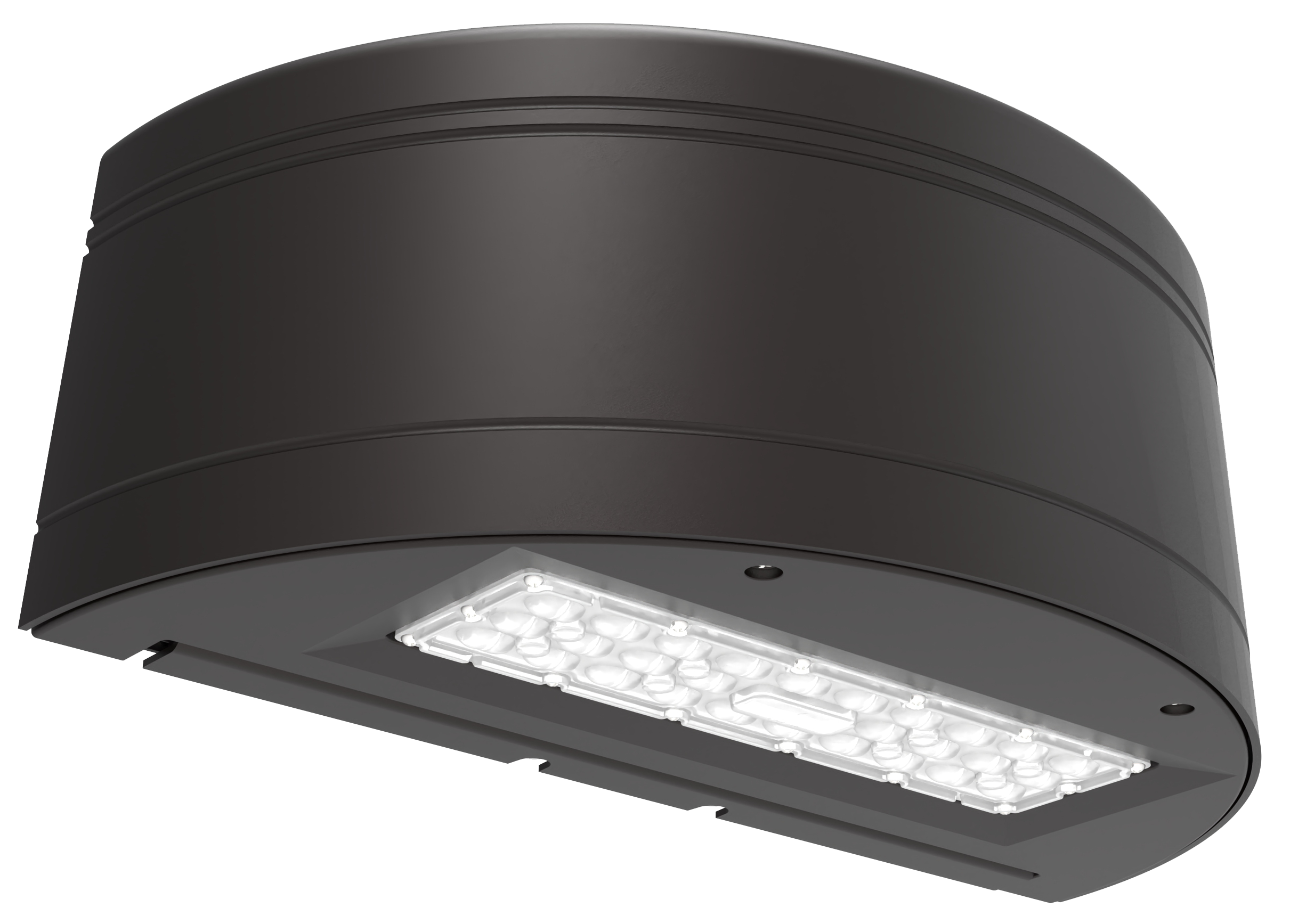

LED SURFACE MOUNT LIGHT

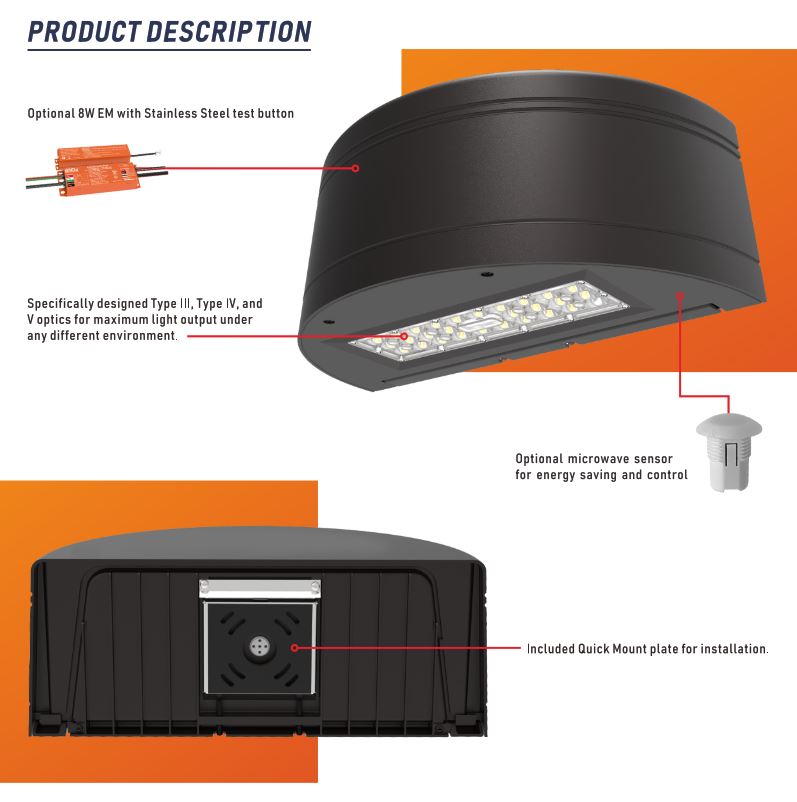

This new updated full cutoff selectable wall pack is elegant and functional. With high performance LEDs, updated advanced optics, and long lasting driver, this fixture provides effective lighting in various applications..

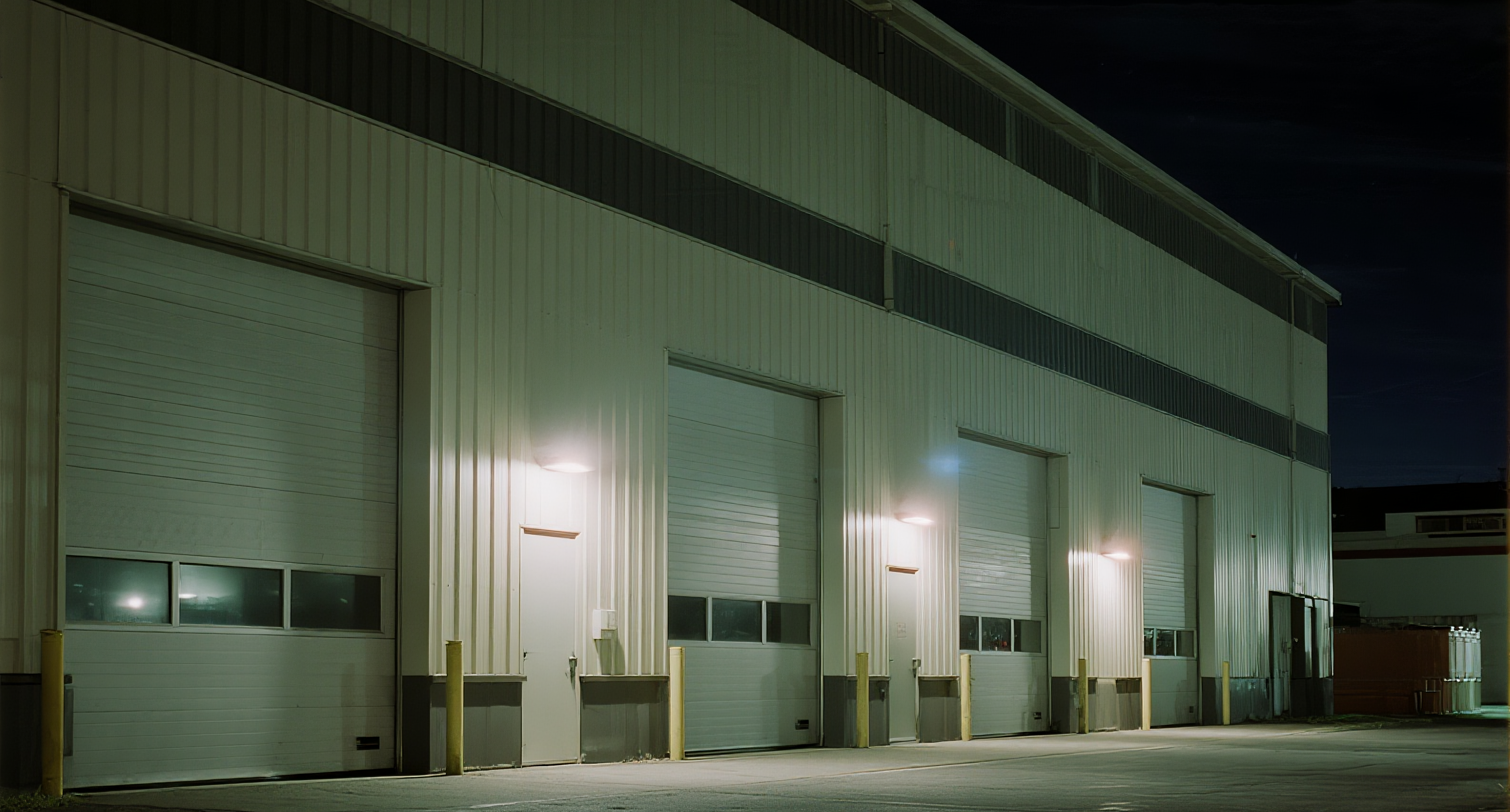

t can be used around factories, restaurants, and shipping centers, etc.





• -UL and CUL listed for wet locations
  -Die cast aluminum body
  -New generation LED
  -UV stabilized powder coated finish
  -Finish- Bronze.  color option with adder







  Model Number	SML-301NL	SML-302NL	SML-303NL

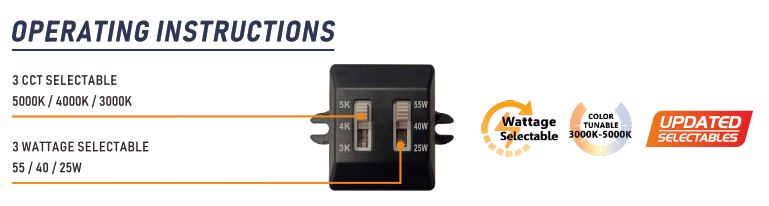

  Nominal Wattage	25/40/55W
  Delivered Lumens (Lms. based on highest wattage 5000K)	8800 lm*
  Efficacy (Lm/W based on highest wattage 5000K)	175 lm/W*
  Color Rendering Index (CRI)	70+
  Color Temperature (CCT)	3000K / 4000K / 5000K
  Input Voltage	120~277VAC 277-480VAC
  Distribution	Type III / Type IV / Type V
  Option	Microwave Sensor Emergency Driver 10KV Surge
  Finish	Bronze





  Build Your Order

  Model Number	System Wattage	Voltage	CCT	Housing Finish	Option
  SML-301NL SML-302NL SML-303NL	25/40/55W Selectable	120-277VAC 277-480VAC	3000K 4000K 5000K Selectable	BZ=Bronze • Custom	BLANK=No Sensor PC=Photocell OC=Occupancy Sensor EM=Emergency Driver SS=10KV Surge

  ** Optional with adder.
  ** Different LED Kelvin temperature available with 7-8 week lead time. Please call for quote.
  ** Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
      Actual production units may vary from the values reported here by up to +/-10%.
