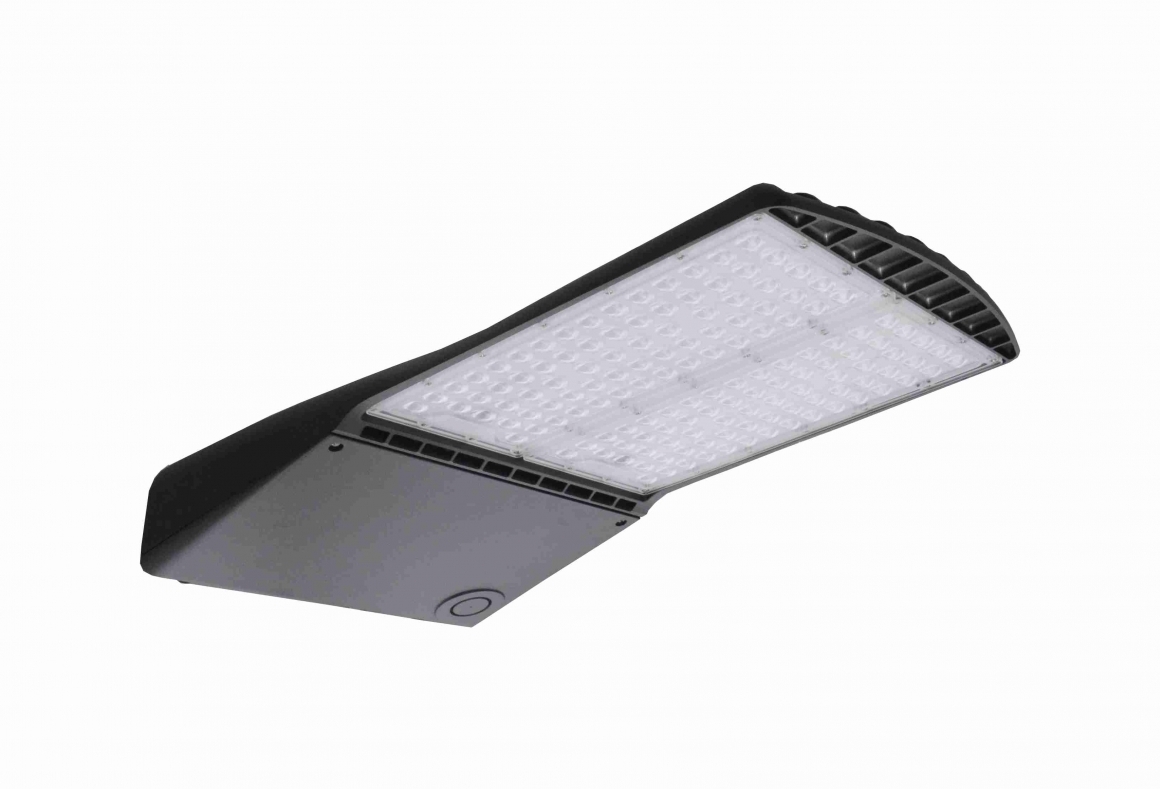

LED-6032

-
This slick and modern luminaire has been designed to handle any environment.
With a beautiful slimline design along with one of the highest lumen performance on the market,
this versatile fixture can be used as a flood light or an area light,
including a multitude of mouting options, surge protection devices,
IOT photocell capability, and the most technologically advanced LED's on the market,
the LED-6032 is ready to conquer the lighting landscape.
-UL and CUL listed for wet location.
-ONE-PIECE die-cast aluminum body with die-cast hinge panel for easy installation access.
-LEDs: The most technologically advanced LED chips in the market.
-UV stabilized powder coated finish
-Lens: Optional Type III, Type IV, Type V optics.
-3-pin / 5-pin / 7-pin Receptacle.
-Bi-Level Dimmable or Photocontrol optional available with adder.
-IOT Photocell capability.
-Standard 4kV Surge.
-Mounting options: Trunnion, Slip Fitter, and Pole Mount
-Optional 347V or 480V with adder.
-Finish - Bronze. Color options with adder
-Suitable for Street & Tunnel, Park, Gas Station, Parking, and Industrial Site.
-
Download Datasheet
Model Number LED-6032 System Wattage 214W 312W Delivered Lumens (Lms.) 32334 lm** (Type III) 33487 lm**(Type IV) 33850 lm**(Type V) 42795 lm**(Type III) 44921 lm**(Type IV) 44736 lm**(Type V) Efficacy (Lm/W) 151lm/w 156 lm/w 158 lm/w 141 lm/w 148 lm/w 148 lm/w Color Rendering Index (CRI) 70+ Color Temperature (CCT) 4000K / 5000K Input Voltage 120~277V AC Dimensions (Inches) 14"x 24.8" x 4.52" (Pole Mount PM) Weight (kg / lb) 11kgs / 24.22lbs Build Your OrderModel
NumberSystem
WattageVoltage CCT Housing
FinishMounting Accessories
LED-6032
218W
311W120-277V 4000K
5000K
• CustomBronze
• CustomPOLE MOUNT 6" /10"
TRUNNION
Slip Fitter
U BracketLens: Type III, IV, V options as options
Bi-Level Dimmable or Photocontrol options
IOT Photocell capability
Standard 4kV Surge**Optional with adder
*Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
**Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
Actual production units may vary from the values reported here by up to +/-10%.
