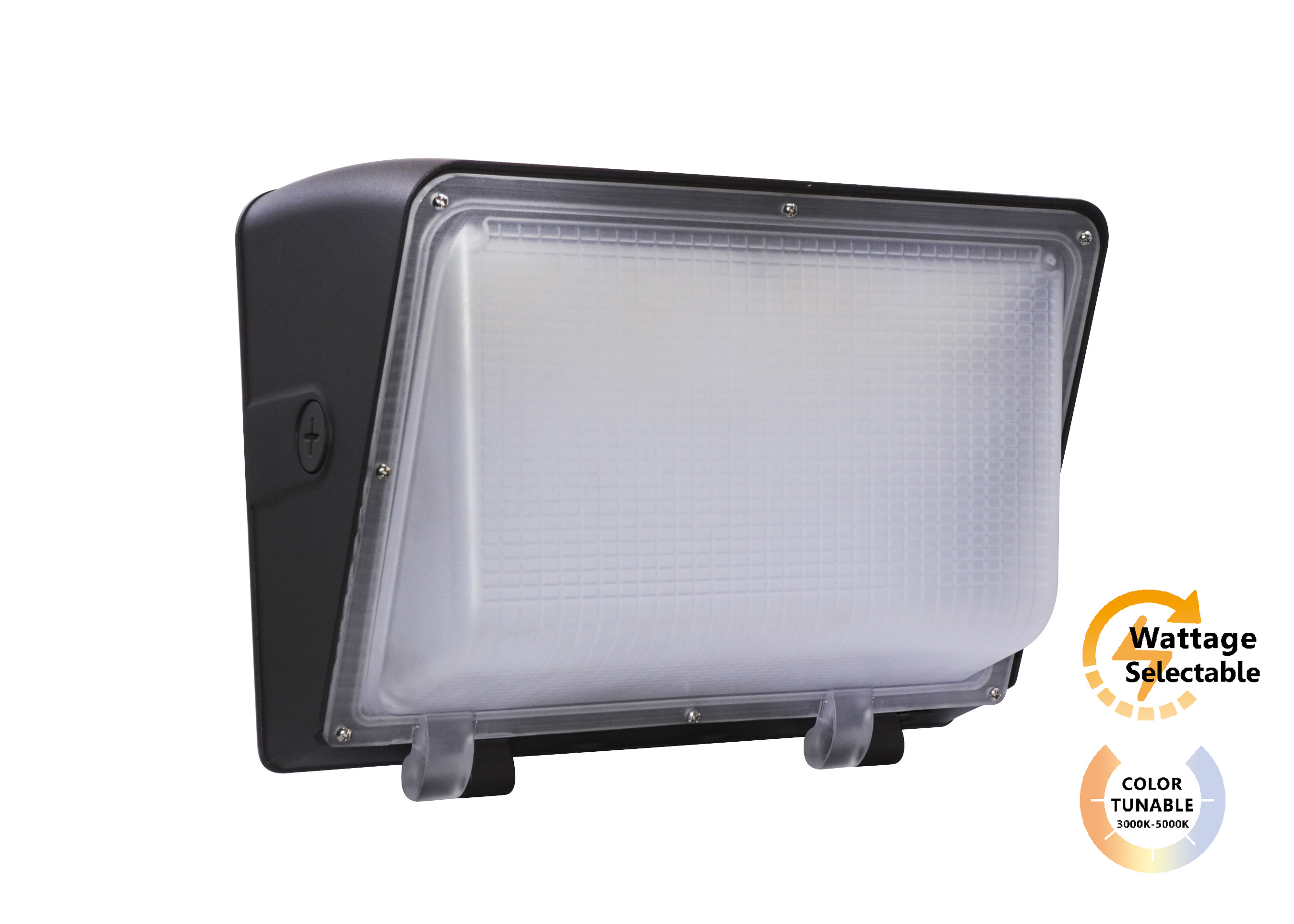

LED-6590

Utilizing the latest generation of LED chips and a patented smart controller, this uniquely designed wall pack delivers a similar light output to a 150/200 W metal halide, but it also has multiple wattage and CCT to choose from based on different environments. Housing made of die-casting aluminum with reliable powder coating specifically for harsh outdoor environment.
It is attractive in appearance and performance.

-UL and CUL listed for wet locations
-Die cast aluminum body
-High impact poly carbonate lens
-UV stabilized powder coated finish
-Finish- Bronze. Color option with adder
-Optional Photocontrol
-Optional continuous sensor

Model Number	LED-6590
System Wattage	16/30/42/46W	21/41/61/71W	32/62/92/100W
Delivered Lumens (Lms.)	6520 lm**	9886 lm**	14075 lm**
Efficacy (Lm/W)	138 lm/w	138 lm/w	138 lm/w
Color Rendering Index (CRI)	80+
Color Temperature (CCT)	3000K/4000K/5000K
Input Voltage	120~277VAC

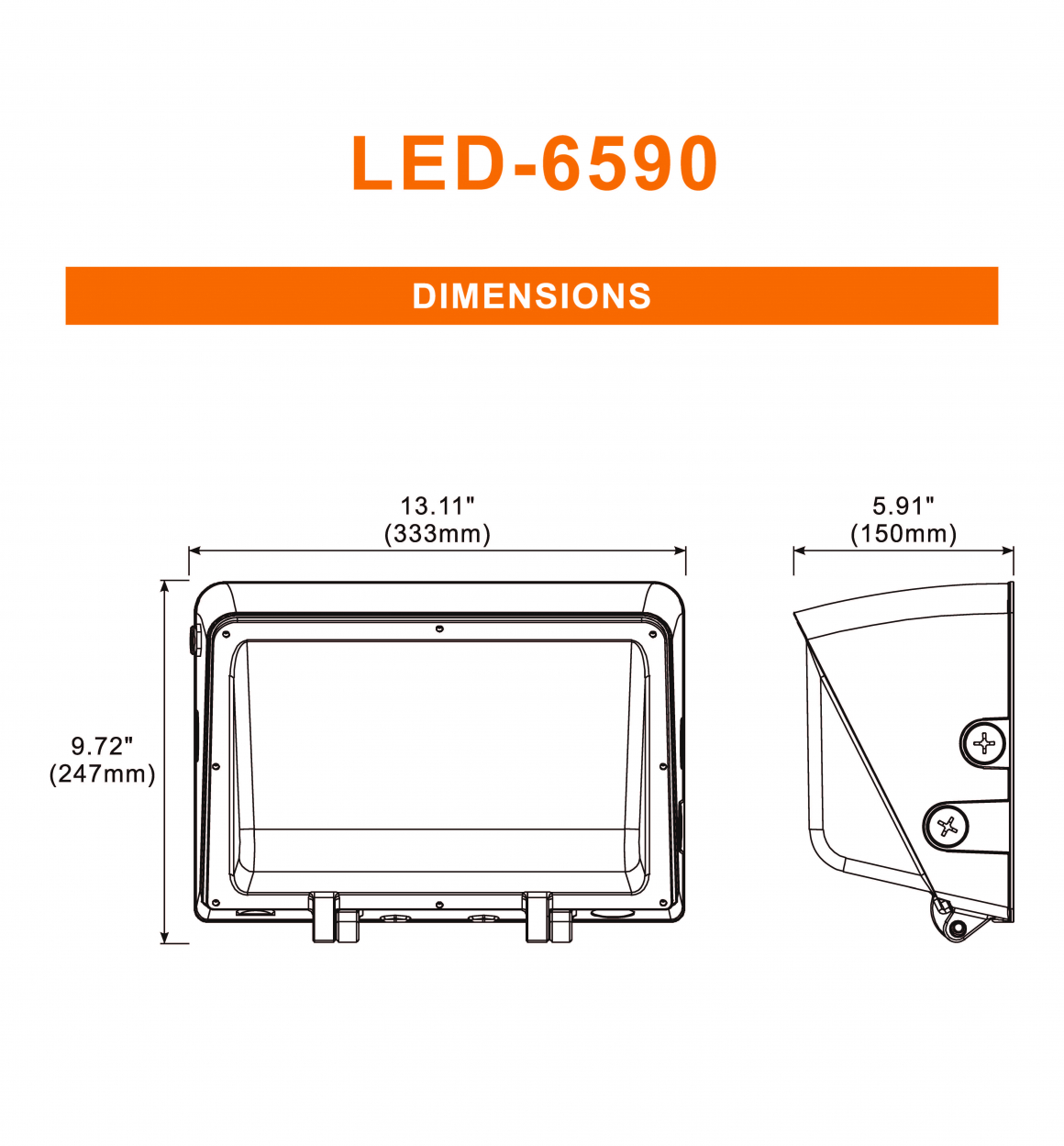

Dimensions (Inches)	13.11" x 9.72" x 4.57" inches

Build Your Order

Model Number	System Wattage	Electrical	Voltage	CCT	Housing Finish	Mounting
LED-6590	46W 71W 100W	N/A	120-277VAC	5000K CUSTOM**	Bronze CUSTOM**	Surface Mount

**Optional with adder
*Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
**Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
Actual production units may vary from the values reported here by up to +/-10%.
