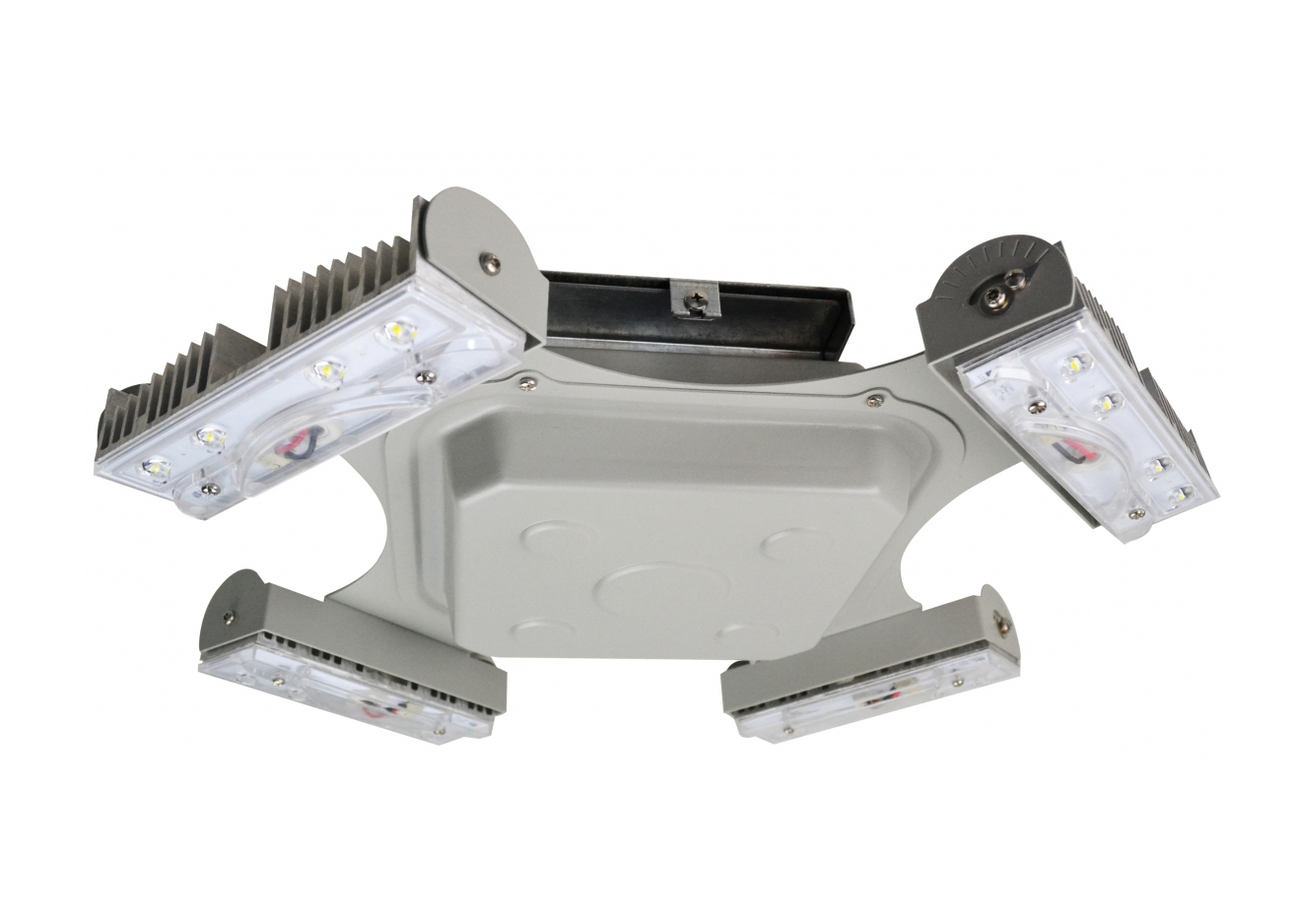

LED-366

LED-366
LED CANOPY LIGHT

Heavy duty die-cast construction with modular LED light engine design.
This slim-profile luminaire can be perfectly used in parking garage, canopy or high ceilings.
It provides an easy installation with quick mount structure for contractors to work safely and easily in the confined-space areas.


Spec. Download
  • LED CANOPY LIGHT

    -UL and CUL listed for wet locations.
    -Solid construction die-cast aluminum body.
    -UV stabilized power coated finish.
    -Unique quick mount design.
    -DLC Listed.
    -Optional Photo Control with adder.
    -Adjustable directional optics.
    -Motion sensor capability.
    -Finish:  Gray. Color option with adder.


    Model Number LED-366
    System Wattage                                      55W
    Delivered Lumens (Lms.)     5100 lm**
    Efficacy (Lm/W)     93 lm/w
    Color Rendering Index (CRI)     70+
    Color Temperature (CCT)    5000K
    Input Voltage     120~277V
    MA     900 MA
    Equivalent     150W MH

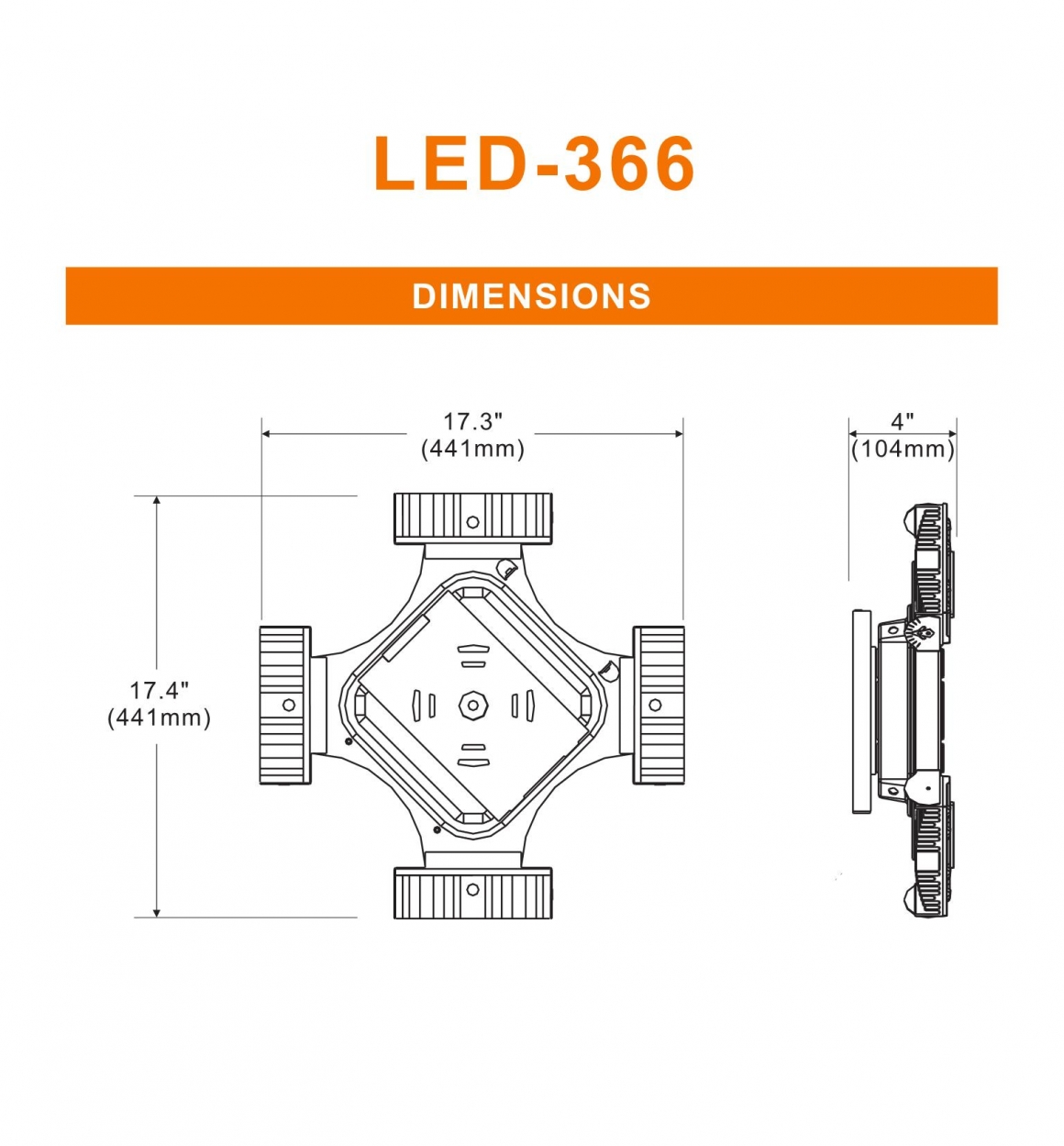

    Dimensions (Inches)       17.3"x 17.4" x 4" inches
    Weight (kg / lb)      5.59kg / 12.3lb

    Build Your Order
    Model
    Number    		 System
    Wattage    		 Voltage CCT Electrical Housing
    Finish    		 Mounting
    LED-366 55W 120-277V 5000K
    CUSTOM**    		 Motion sensor**
    Photocell**
    Dimmable option**    		 Gray
    CUSTOM**    		 Quick Mount
    **Optional with adder
      *Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
    **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
       Actual production units may vary from the values reported here by up to +/-10%.

  •   Download Datasheet
