Grandlite International Corp

LED-1505 Selectable

•
•
•
•

•
•
•
•

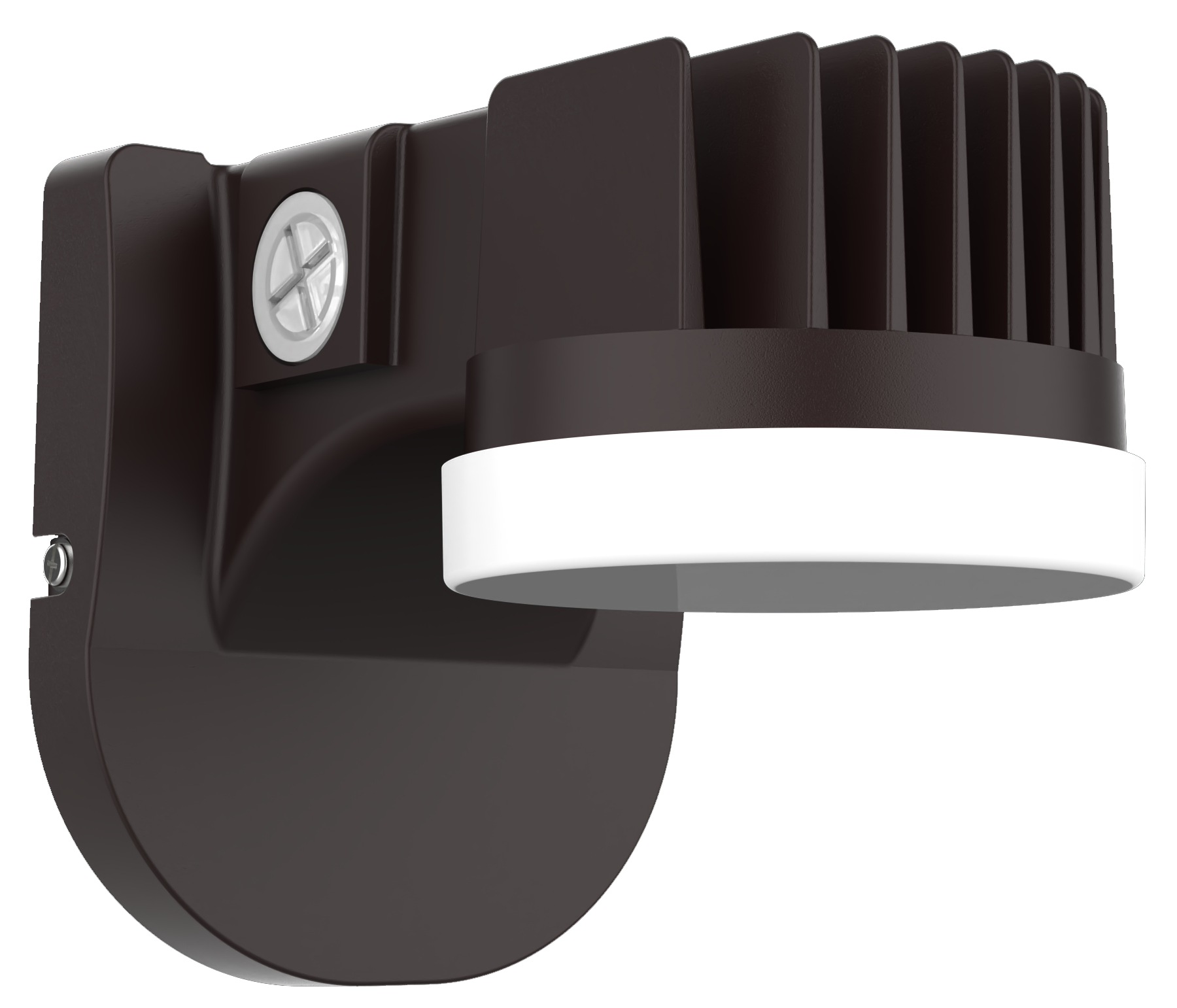

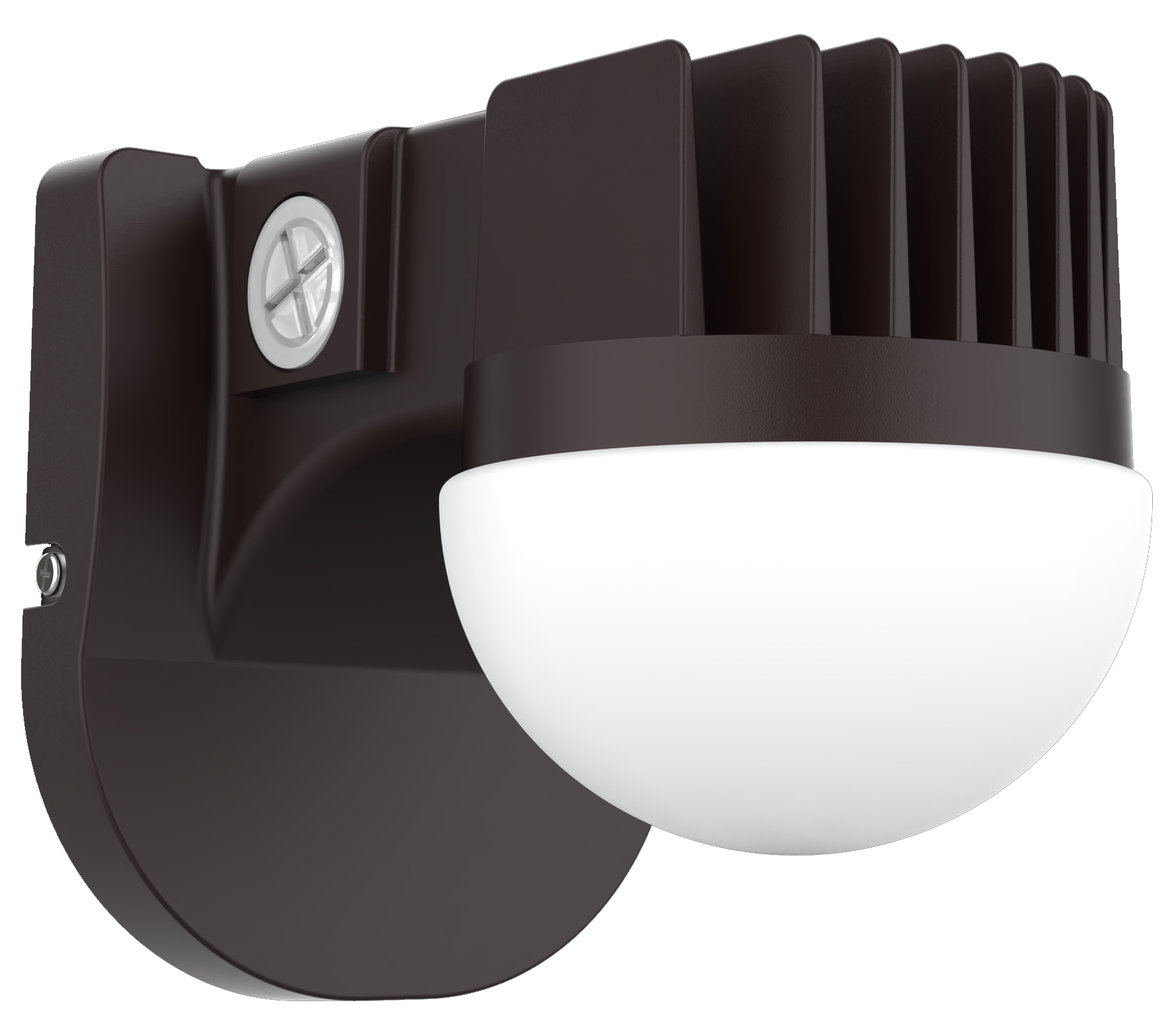

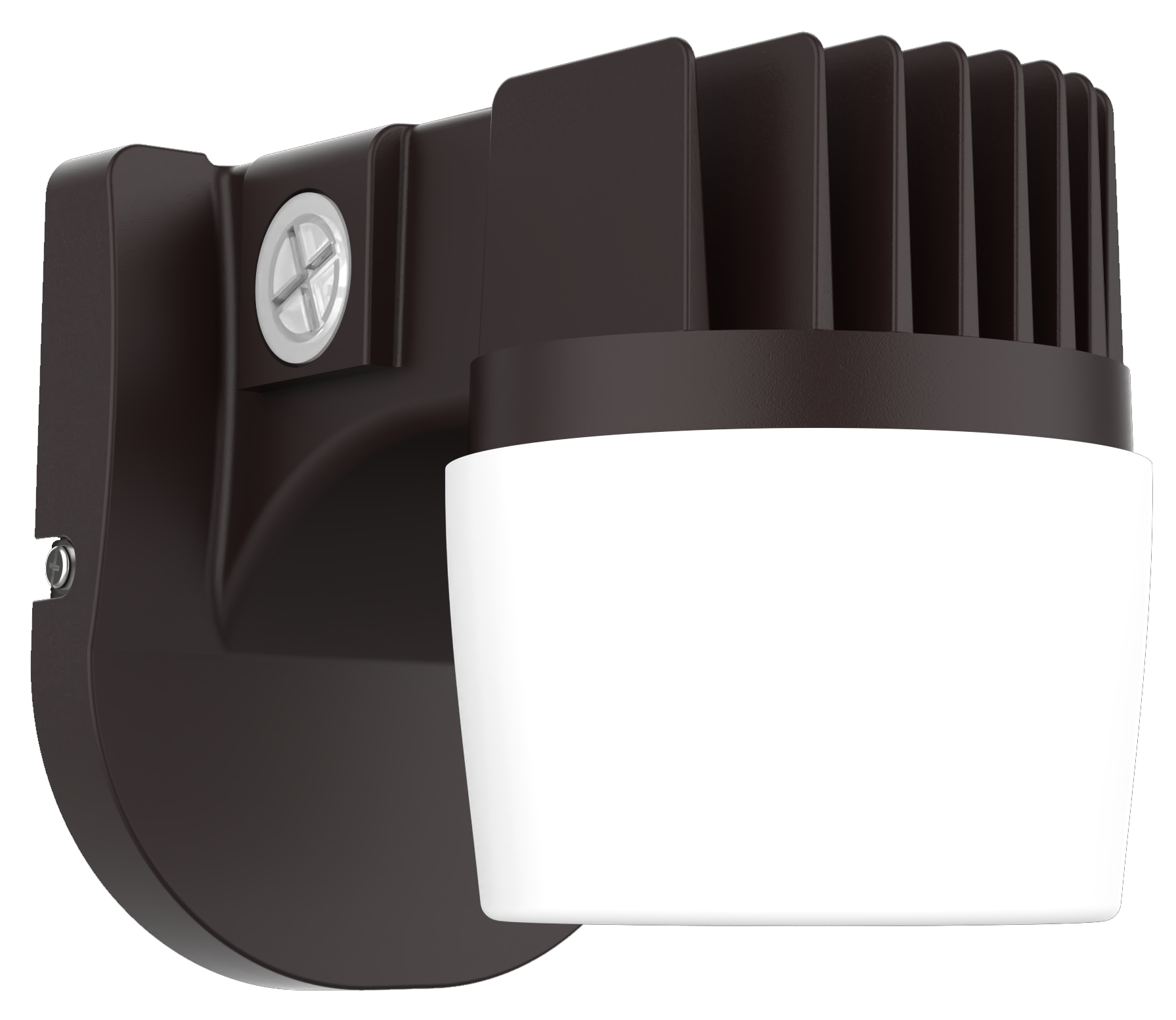

LED-1505
LED SURFACE MOUNT LIGHT

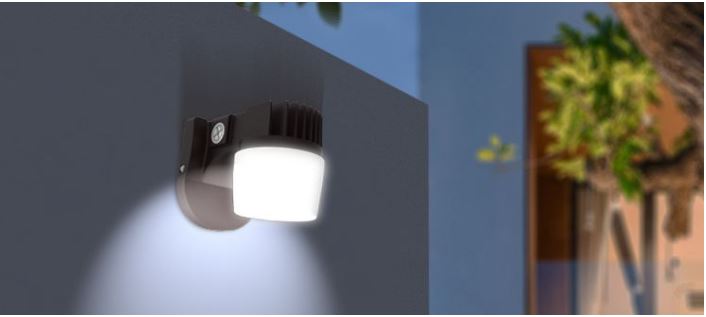

Architectural design incorporated with high performance LED light engine.This luminaire performs efficiently and steadily in any given environment. Uniform light distribution is delivered through a frosted diffuser. It is ideally used for condos, apartments, hotels, porches, and is suitable for indoor and outdoor spaces to replace old-fashioned incandescent Jelly jars.




•
  -UL and CUL listed for wet locations
  -Die-case aluminum body
  -New generation COB technology
  ​-UV stabilized powder coated finish
  -High impact polycarbonate diffuser
  -Quick mount included
  -Finish:  Bronze. Color option with adder.
  -Optional Photo control -120V only with adder
  -Patented Fixture




  Model Number	LED-1505B	LED-1505CL	LED-1505C

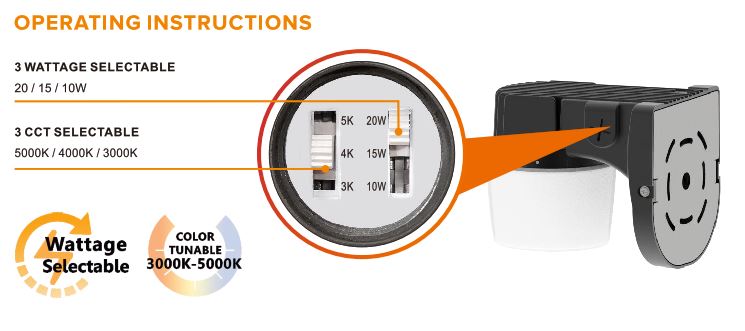

  System Wattage	20/15/10W
  Delivered Lumens (Lms. based on highest wattage 5000K)	2701 lm	2671 lm	2607 lm
  Efficacy (Lm/W based on highest wattage 5000K)	140 lm/W	136 lm/W	135 lm/W
  Color Rendering Index (CRI)	80+
  Color Temperature (CCT)	3000K / 4000K / 5000K
  Input Voltage	120~277VAC
  Distribution	Type III	Type III	Type II


  Build Your Order

  Model Number	System Wattage	Voltage	CCT	Options	Housing Finish	Mounting
  LED-1505B LED-1505CL LED-1505C	20/15/10W	120-277VAC	Selectable 3000K / 4000K / 5000K	Photocontrol**	Bronze CUSTOM**	Quick Mount

  **Optional with adder
    *Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
  **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
     Actual production units may vary from the values reported here by up to +/-10%.


•  Download Datasheet
